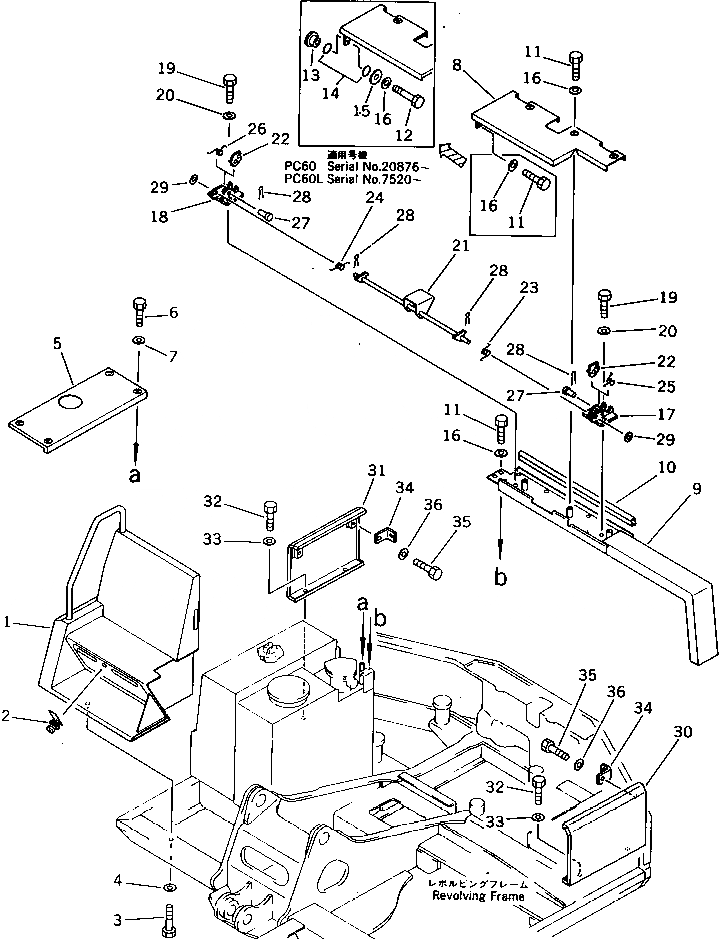

Запчасти Komatsu PC60L-5 MACHINERY ОБСТАНОВКА (/) (PCL) ОСНОВНАЯ РАМА¤ ЧАСТИ КОРПУСА И КАБИНА

1

20X-54-21512

COVER

2

205-60-71220

LOCK ASS'Y

3

01010-51025

BOLT

4

01643-31032

WASHER

5

20X-54-21521

COVER

5

20X-54-21520

COVER

6

01010-51020

BOLT

7

01643-31032

WASHER

8

20X-54-21381

COVER

8

20X-54-21380

COVER

9

20X-54-21351

COVER

10

20X-54-21360

TRIM

11

01010-51020

BOLT

11

01010-51020

BOLT

12

01010-51035

BOLT

13

10E-43-11180

RETAINER

14

07002-03034

O-RING

15

175-54-88110

WASHER

16

01643-31032

WASHER

17

20X-54-21411

BRACKET,L.H.

18

20X-54-21420

BRACKET,R.H.

19

01010-51020

BOLT

20

01643-31032

WASHER

21

20X-54-21431

LEVER

22

21K-54-26340

LEVER

23

20X-54-21460

SPRING

24

20X-54-21440

SPRING

25

20X-54-21470

SPRING

26

21K-54-26360

SPRING

27

04205-11038

PIN

28

04050-13020

PIN,COTTER

29

01641-21016

WASHER

30

20X-54-21310

COVER,L.H.

31

20X-54-21320

COVER,R.H.

32

01010-51020

BOLT

33

01643-31032

WASHER

34

20X-54-21330

PLATE

35

01010-51020

BOLT

36

01643-31032

WASHER
