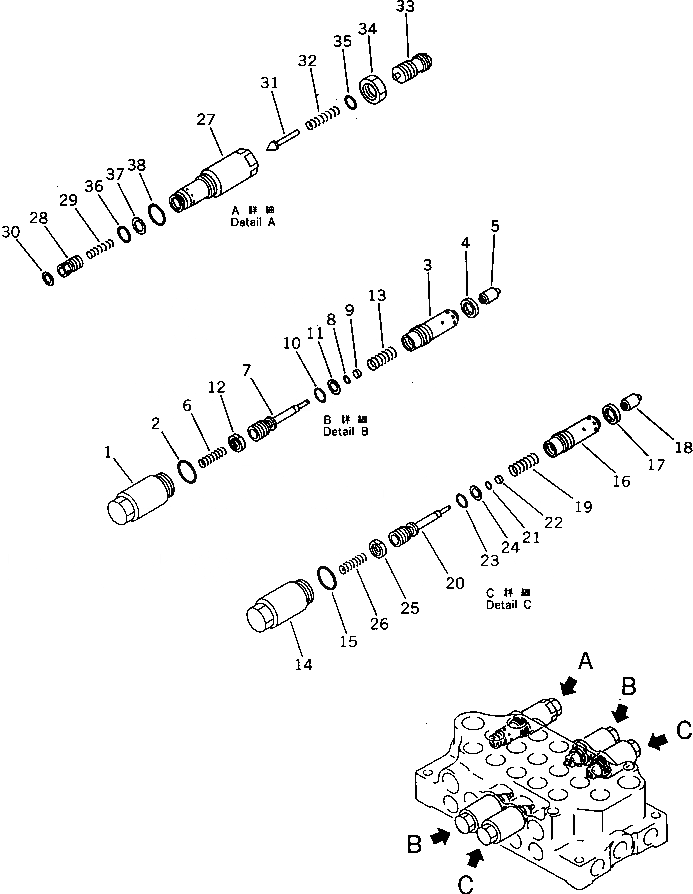

Запчасти Komatsu PC60L-5 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) ГИДРАВЛИКА

|$0

709-25-11403

VALVE ASS'Y,R.H.

|$1

709-25-11402

VALVE ASS'Y,R.H.

|$3

709-20-61201

VALVE ASS'Y,SUCTION AND SAFETY

|$4

709-20-61200

VALVE ASS'Y,SUCTION AND SAFETY

1

709-20-61110

SLEEVE

2

709-25-11390

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

SEAL

10

O-RING

11

RING,BACK-UP

12

NUT

12

NUT

13

709-20-61160

SPRING

|$19

709-20-61102

VALVE ASS'Y,SUCTION AND SAFETY

|$20

709-20-61101

VALVE ASS'Y,SUCTION AND SAFETY

|$21

709-20-61301

VALVE ASS'Y,SUCTION AND SAFETY

|$22

709-20-61300

VALVE ASS'Y,SUCTION AND SAFETY

14

709-20-61110

SLEEVE

15

709-25-11390

O-RING

16

VALVE

17

SEAL

18

POPPET

19

SPRING

20

PISTON

21

O-RING

22

SEAL

23

O-RING

24

RING,BACK-UP

25

NUT

25

NUT

26

SPRING

|$37

709-20-51103

VALVE ASS'Y,RELIEF

27

SLEEVE

28

VALVE

29

709-20-51270

SPRING

30

700-20-51240

RING

31

700-80-61190

POPPET

32

709-20-51231

SPRING

33

709-20-51280

SCREW

34

01582-11411

NUT

35

07000-02011

O-RING

36

700-22-11410

O-RING

37

700-80-64220

RING,BACK-UP

38

07002-02434

O-RING
