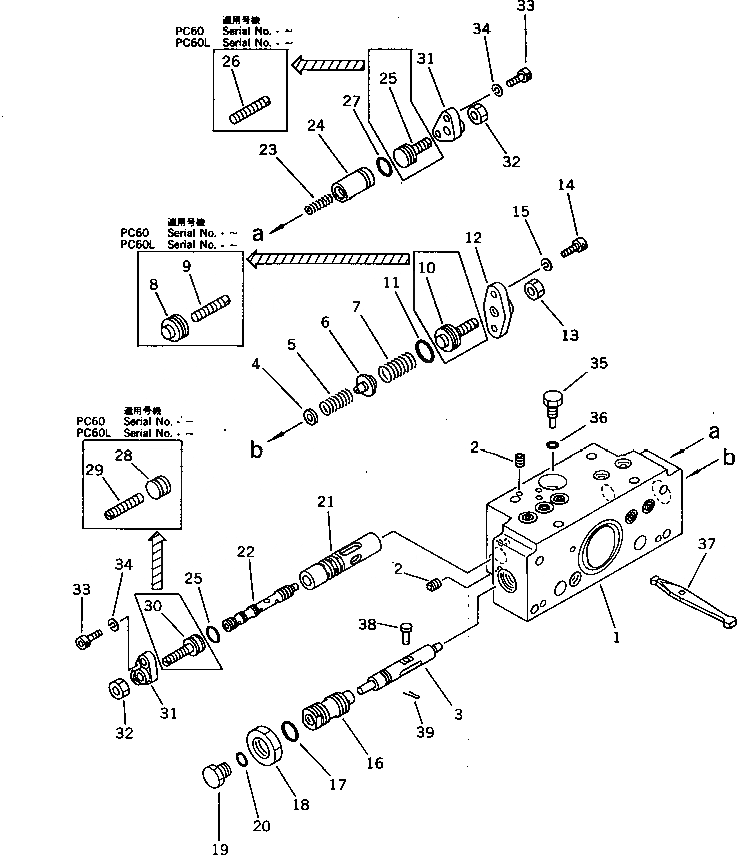

Запчасти Komatsu PC60L-5 СЕРВОКЛАПАН¤ ПЕРЕДН. (/) (КРОМЕ ЯПОН.) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|$0
708-21-01032
PUMP ASS'Y,(HPV 35+35)
|$1
708-21-01031
PUMP ASS'Y,(HPV 35+35)
|$2
708-21-01030
PUMP ASS'Y,(HPV 35+35)
|$3
708-21-10401
PUMP ASS'Y,(HPV 35+35)
|$5
708-21-07111
SERVO VALVE ASS'Y,FRONT
|$6
708-21-07110
SERVO VALVE ASS'Y,FRONT
|$7
708-21-15101
SERVO VALVE ASS'Y,FRONT
|$9
708-21-15200
SERVO VALVE ASS'Y,FRONT
|$10
708-23-07011
BODY ASS'Y
|$11
708-25-07010
BODY ASS'Y
1
BODY
2
EXPANDER
2
PLUG
3
708-25-15120
PISTON
4
708-25-15130
SEAT
5
708-23-25110
SPRING
6
708-23-15120
SEAT
7
708-23-15130
SPRING
8
708-23-15160
PLUG
9
708-23-15340
PLUG
10
708-23-15140
PLUG
11
07000-02016
O-RING
12
708-25-15150
COVER
13
01580-10806
NUT
14
708-25-15320
BOLT
14
01252-30616
BOLT
15
01602-20619
WASHER,SPRING
16
708-25-15171
PLUG
17
07002-02034
O-RING
18
07239-12009
NUT
19
07040-11007
PLUG
20
07002-01023
O-RING
21
708-25-15180
SLEEVE
22
708-25-15280
SPOOL
23
708-25-15310
SPRING
24
708-25-15330
SPACER
24
708-25-15290
SPACER
25
708-25-15240
PLUG
26
708-25-15340
SCREW
27
07000-02012
O-RING
28
708-25-15430
PLUG
29
708-25-15340
SCREW
30
708-25-15240
PLUG
31
708-25-15250
COVER
32
01580-10806
NUT
33
708-25-15320
BOLT
33
01252-30616
BOLT
34
01602-20619
WASHER,SPRING
35
708-25-15260
PLUG
36
07002-00823
O-RING
37
708-23-15150
ARM
38
04205-00514
PIN
39
04050-01210
PIN,COTTER
