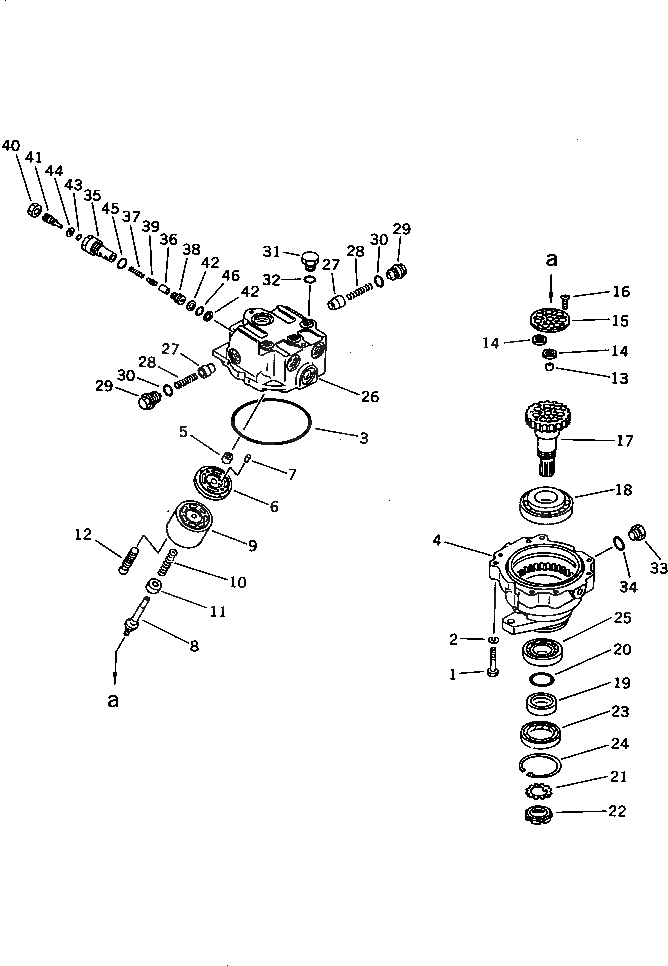

Запчасти Komatsu PC60L-5 МОТОР ПОВОРОТА (БЕЗ ПОВОРОТН. МЕХАНИЧ. ТОРМОЗ.) (КРОМЕ ЯПОН.) ГИДРАВЛИКА

|1

706-73-10500

SWING MOTOR ASS'Y

1

01010-51055

BOLT

2

01602-21030

WASHER,SPRING

3

706-73-42370

O-RING

4

706-73-42030

CASE,BRAKE

5

706-73-40010

BEARING

6

706-73-42840

PLATE,VALVE

7

04020-00616

PIN,DOWEL

8

706-73-42080

SHAFT,CENTER

9

706-73-41091

BLOCK,CYLINDER

10

706-73-41110

SPRING

11

706-73-41130

RING,CENTER

12

706-73-41163

PISTON ASS'Y

13

706-73-41220

BALL,CENTER

14

706-73-41251

HOLDER

15

706-73-42260

RETAINER

|15

706-73-41263

RETAINER

16

706-73-42270

SCREW

|16

706-73-41271

SCREW

17

706-73-42761

SHAFT,DRIVE

|17

706-73-42760

SHAFT,DRIVE

18

706-74-41880

BEARING

19

706-75-40910

RING

20

07000-03040

O-RING

21

01658-03618

WASHER,LOCK

22

01530-03610

NUT

23

706-75-90180

SEAL,OIL

24

04065-08225

RING,SNAP

25

706-75-40890

BEARING

26

706-73-72140

HOUSING

27

706-73-72420

VALVE

28

706-73-72440

SPRING

29

706-73-72430

PLUG

30

07002-12434

O-RING

31

07040-12012

PLUG

32

07002-12034

O-RING

33

07040-11409

PLUG

34

07002-01423

O-RING

|35

706-73-85301

VALVE ASS'Y,C.O.R.

35

VALVE

36

VALVE

37

SPRING

38

SEAT,VALVE

39

PISTON

40

NUT

41

SCREW

42

07001-02016

RING,BACK-UP

43

O-RING

44

RING,BACK-UP

45

07002-12434

O-RING

46

07000-22016

O-RING
