Запчасти Komatsu PC60L-5 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) ГИДРАВЛИКА

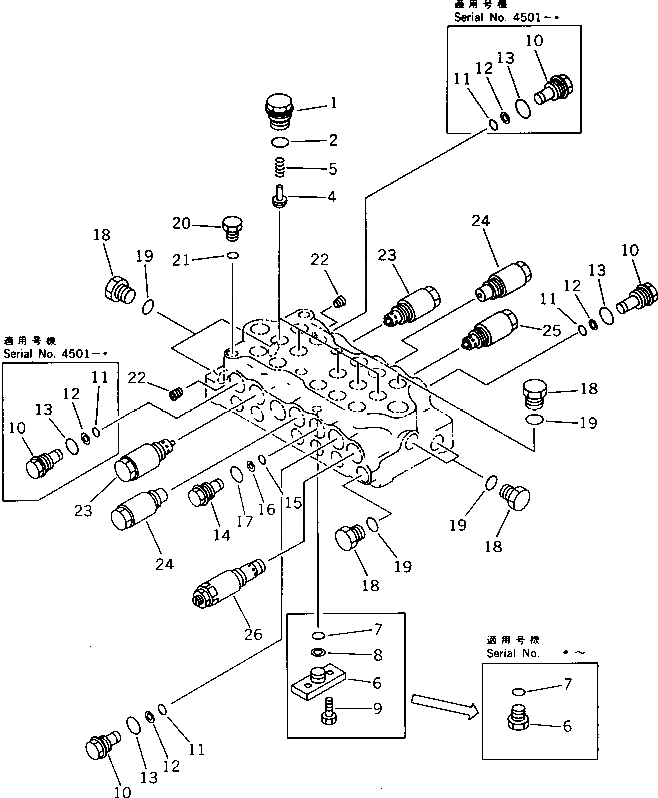

Схема запчастей Komatsu PC60L-5 - УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) ГИДРАВЛИКА

Артикул

Название

Примечание

Количество

|1

709-26-11303

VALVE ASS'Y,L.H.

|1

709-26-11302

VALVE ASS'Y,L.H.

1

709-25-11612

PLUG

2

07000-12020

O-RING

4

709-25-11350

VALVE,CHECK

5

709-25-11361

SPRING

6

701-30-63130

PLUG

|6

709-25-11471

PLATE

7

07002-12034

O-RING

|7

700-22-11410

O-RING

8

700-80-64220

RING,BACK-UP

9

01010-50820

BOLT

10

709-25-11380

PLUG

|10

709-25-11380

PLUG

11

07000-12010

O-RING

|11

07000-12010

O-RING

12

07001-02010

RING,BACK-UP

|12

07001-02010

RING,BACK-UP

13

709-25-11390

O-RING

|13

709-25-11390

O-RING

14

709-25-11380

PLUG

15

07000-12010

O-RING

16

07001-02010

RING,BACK-UP

17

709-25-11390

O-RING

18

701-30-63130

PLUG

19

07002-12034

O-RING

20

07040-11409

PLUG

21

07002-01423

O-RING

22

07043-70108

PLUG

23

709-20-61102

VALVE ASS'Y,SUCTION AND SAFETY

|23

709-20-61101

VALVE ASS'Y,SUCTION AND SAFETY

24

709-20-81100

VALVE ASS'Y,SUCTION

25

709-20-61301

VALVE ASS'Y,SUCTION AND SAFETY

|25

709-20-61300

VALVE ASS'Y,SUCTION AND SAFETY

26

709-20-51103

VALVE ASS'Y,RELIEF

Выбрано товаров: 35
