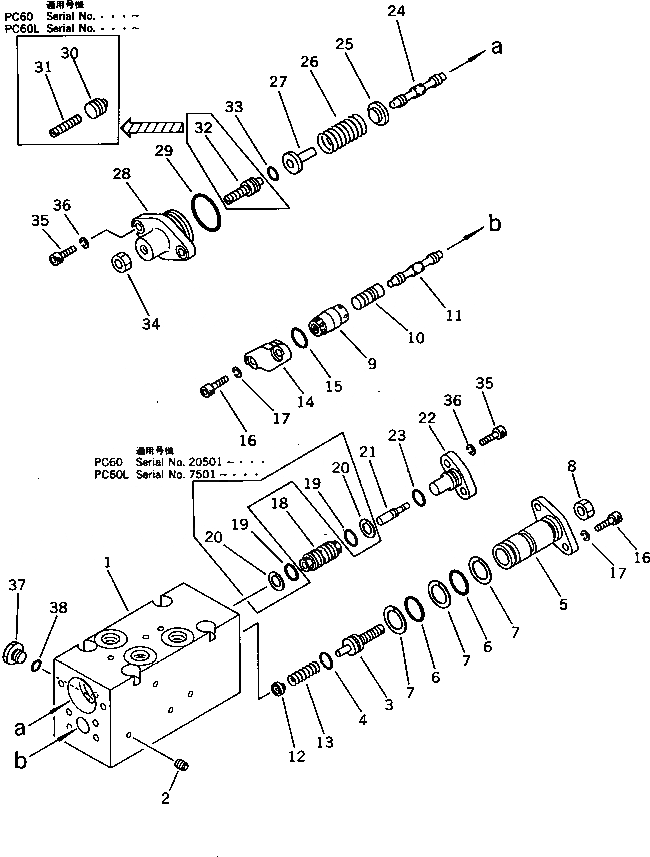

Запчасти Komatsu PC60L-5 CUT OFF И NEGATIVE УПРАВЛЯЮЩ. КЛАПАН¤ ЗАДН. (КРОМЕ ЯПОН.) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
708-21-01032
PUMP ASS'Y,(HPV 35+35)
|1
708-21-01031
PUMP ASS'Y,(HPV 35+35)
|1
708-21-01030
PUMP ASS'Y,(HPV 35+35)
|1
708-21-10401
PUMP ASS'Y,(HPV 35+35)
|1
708-21-07211
SERVO VALVE ASS'Y,REAR
|1
708-21-07210
SERVO VALVE ASS'Y,REAR
|1
708-21-16101
SERVO VALVE ASS'Y,REAR
|1
708-21-07611
VALVE ASS'Y,CO AND NC
|1
708-21-07610
VALVE ASS'Y,CO AND NC
|1
708-21-17200
VALVE ASS'Y,CO AND NC
|1
708-23-07032
BODY ASS'Y
|1
708-23-07031
BODY ASS'Y
|1
708-23-07030
BODY ASS'Y
1
BODY
|1
BODY
2
EXPANDER
|2
PLUG
3
708-23-17260
PLUG
4
07000-02010
O-RING
5
708-25-17131
COVER
6
07000-12021
O-RING
7
07001-02021
RING,BACK-UP
8
01580-10806
NUT
9
708-23-17230
SLEEVE
10
708-23-17220
PISTON
11
708-25-17141
SPOOL
|11
708-25-17140
SPOOL
12
708-25-17180
SEAT
13
708-23-17280
SPRING
14
708-25-17170
COVER
15
07000-02014
O-RING
16
708-25-15320
BOLT
|16
01252-30616
BOLT
17
01602-20619
WASHER,SPRING
18
708-25-17211
SLEEVE
|18
708-25-17210
SLEEVE
19
07000-12012
O-RING
20
07001-02012
RING,BACK-UP
21
708-25-17220
PISTON
22
708-25-17230
COVER
23
07000-02012
O-RING
24
708-25-17141
SPOOL
|24
708-25-17140
SPOOL
25
708-25-17370
SEAT
|25
708-25-17240
SEAT
26
708-25-17250
SPRING
27
708-25-17260
SEAT
28
708-25-17350
COVER
29
07000-03028
O-RING
30
708-25-17410
PLUG
31
708-25-15340
SCREW
32
708-25-17360
PLUG
33
07000-01009
O-RING
34
01580-10806
NUT
35
708-25-15320
BOLT
|35
01252-30616
BOLT
36
01602-20619
WASHER,SPRING
37
07040-11007
PLUG
38
07002-01023
O-RING
Выбрано товаров: 59
