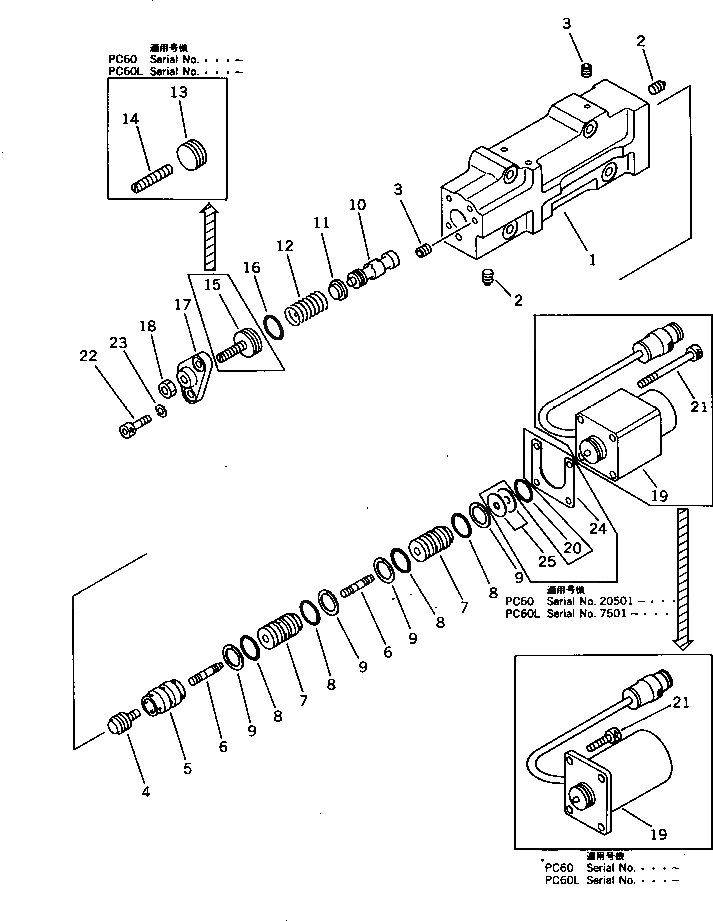

Запчасти Komatsu PC60L-5 ГТР РЕГУЛИР. УПРАВЛЯЮЩ. КЛАПАН (КРОМЕ ЯПОН.) ГИДРАВЛИКА

|1

708-21-01032

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01031

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01030

PUMP ASS'Y,(HPV 35+35)

|1

708-21-10401

PUMP ASS'Y,(HPV 35+35)

|1

708-21-07111

SERVO VALVE ASS'Y,FRONT

|1

708-21-07110

SERVO VALVE ASS'Y,FRONT

|1

708-21-15101

SERVO VALVE ASS'Y,FRONT

|1

708-21-07710

VALVE ASS'Y

|1

708-21-18100

VALVE ASS'Y

|1

708-23-07061

BODY ASS'Y

|1

708-23-07060

BODY ASS'Y

1

BODY

2

PLUG

3

PLUG

|3

PLUG

4

708-23-18120

PISTON

5

708-23-18130

SLEEVE

6

708-25-18120

PISTON

|6

708-23-18140

PISTON

7

708-23-18150

SLEEVE

8

07000-12016

O-RING

9

07001-02016

RING,BACK-UP

10

708-23-18161

SPOOL

11

708-23-18170

SEAT

12

708-23-18181

SPRING

13

708-23-15160

PLUG

14

708-23-15340

PLUG

15

PLUG

16

07000-02018

O-RING

17

708-23-18210

COVER

18

01580-10806

NUT

19

708-23-18221

SOLENOID ASS'Y

|19

708-23-18220

SOLENOID ASS'Y

20

07000-02016

O-RING

21

708-23-18250

BOLT

|21

720-68-19750

BOLT

22

708-25-15320

BOLT

|22

01252-30616

BOLT

23

01602-20619

WASHER,SPRING

24

708-25-18570

SHIM¤ 0.50MM

25

708-25-18580

SHIM¤ 0.50MM
