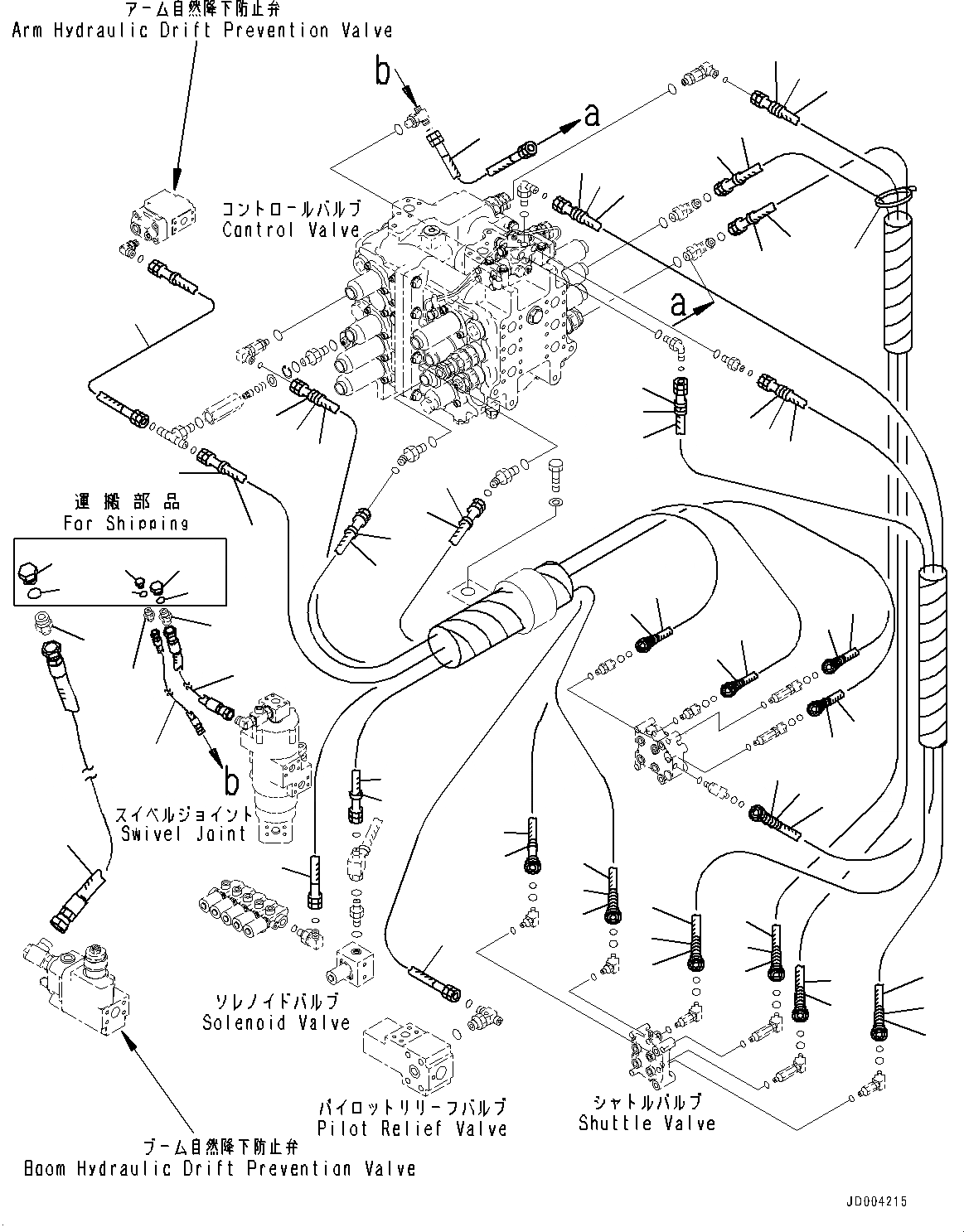

Запчасти Komatsu PC600LC-8R1 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ОСНОВН. ТРУБЫ, ШЛАНГИ (№7-) ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ОСНОВН. ТРУБЫ, С СТРЕЛА И РУКОЯТЬ ГИДРАВЛ DRIFT PREВЕНТИЛЯТОРION КЛАПАН

1

207-62-72620

Hose

2

21M-62-14570

Hose

3

21M-62-14580

Hose

4

20Y-62-22790

Band, Red

5

20Y-62-22810

Band, Yellow

6

20Y-62-22820

Band, Blue

7

20Y-62-22840

Band, Black

8

02760-00326

Hose, Face Seal Type

9

209-04-77630

Hose

10

17M-61-42570

Hose

11

21M-62-14880

Hose

12

20Y-62-22790

Band, Red

13

20Y-62-22810

Band, Yellow

14

20Y-62-22830

Band, White

15

20Y-62-22840

Band, Black

16

20Y-62-22850

Band, Green

17

209-64-16440

Hose

18

21M-62-14570

Hose

19

21M-62-14620

Hose

20

20Y-62-22820

Band, Blue

21

20Y-62-22830

Band, White

22

20Y-62-22860

Band, Brown

23

02760-00303

Hose, Face Seal Type

24

08034-20536

Band

25

02760-00305

Hose, Face Seal Type

26

21M-62-31860

Hose Assembly

27

21M-62-31870

Hose Assembly

28

21M-62-14940

Hose Assembly

29

07376-70315

Plug

30

02896-11009

O-ring

31

07376-70522

Plug

32

02896-11015

O-ring

33

07376-70628

Plug

34

02896-11018

O-ring

35

02781-00522

Union

|$35

02781-00522

Union

36

02781-00315

Union

|$37

02781-00315

Union

37

21W-958-2820

Union

|$39

21W-958-2820

Union
