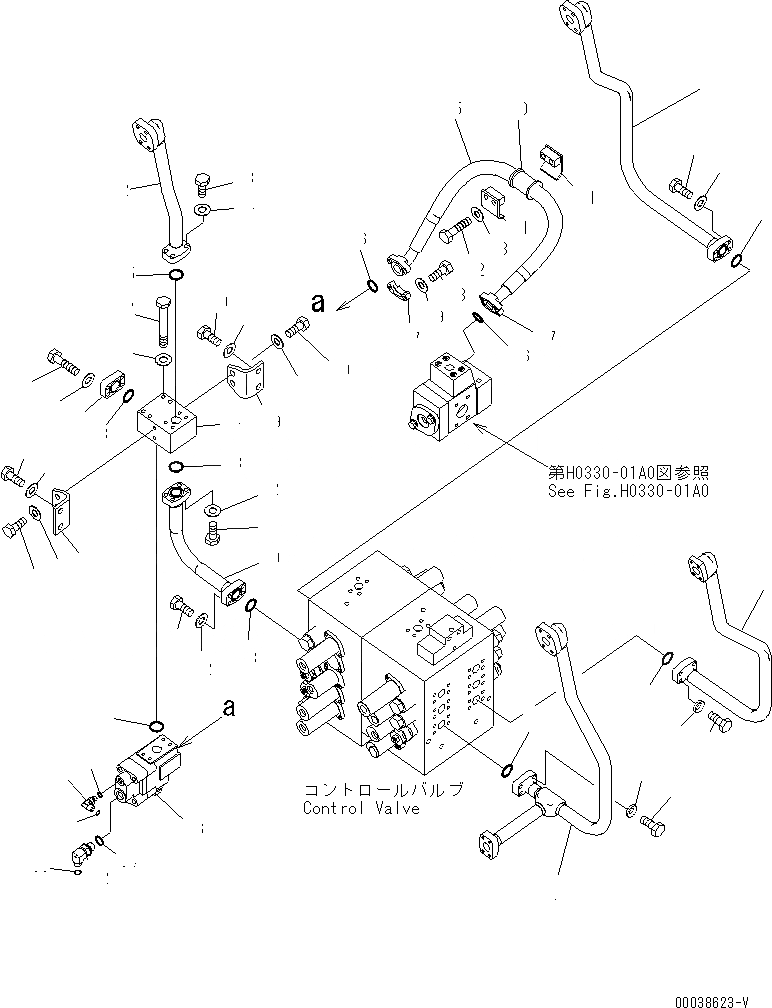

Запчасти Komatsu PC600LC-8R РУКОЯТЬ И КОВШ ТРУБЫ (КЛАПАН ТРУБЫ) (/) ГИДРАВЛИКА

1

21M-62-11241

TUBE

2

21M-62-11230

TUBE

3

07372-21040

BOLT

4

01643-51032

WASHER

5

07000-B3035

O-RING

6

21M-62-21230

TUBE

7

07372-21040

BOLT

8

01643-51032

WASHER

9

07000-B3035

O-RING

10

21M-62-21240

TUBE

11

07372-21040

BOLT

12

01643-51032

WASHER

13

07000-B3035

O-RING

14

21M-62-21211

BLOCK

15

207-62-56190

FLANGE

16

01010-81040

BOLT

17

01643-31032

WASHER

18

07000-B3035

O-RING

19

21M-62-21260

BRACKET

20

01010-81230

BOLT

21

175-54-34170

WASHER

22

21M-62-21250

TUBE

23

07372-21040

BOLT

24

01643-51032

WASHER

25

07000-B3035

O-RING

26

702-21-04800

VALVE ASS'Y,QUICK RETURN

27

01010-81095

BOLT

28

01643-31032

WASHER

29

02782-10311

ELBOW

30

02896-11009

O-RING

31

07002-11423

O-RING

32

02782-10425

ELBOW

33

02896-11012

O-RING

34

07002-12434

O-RING

35

07122-01011

HOSE

36

07000-B3032

O-RING

37

07371-31049

FLANGE

38

07372-21035

BOLT

39

01643-51032

WASHER

40

07095-01034

CUSHION

41

07094-11024

CLAMP

42

01010-81275

BOLT

43

01643-31232

WASHER
