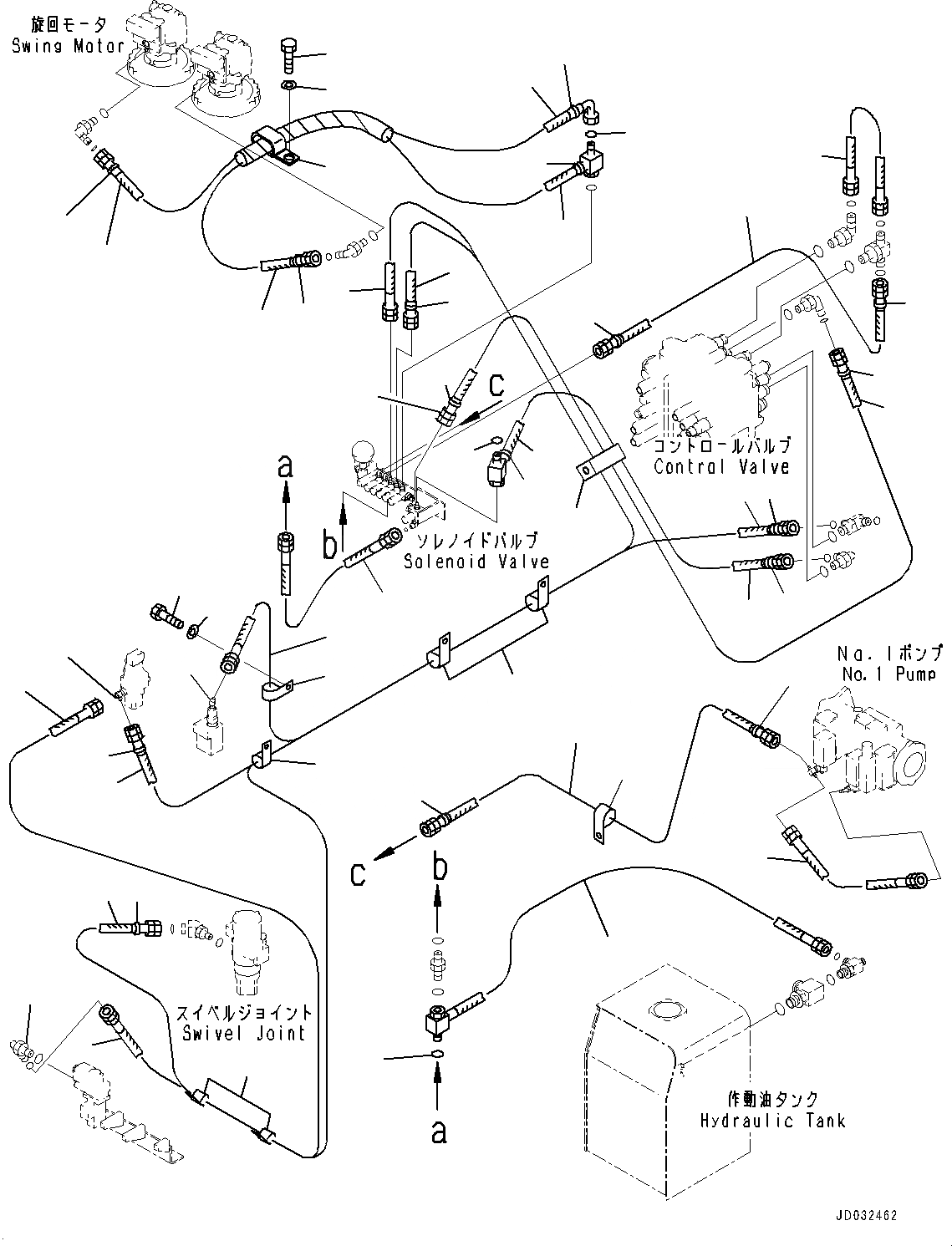

Запчасти Komatsu PC600LC-8E0 СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ, ШЛАНГИ (№-) СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ

1

02760-00325

Hose

2

02760-00328

Hose, Face Seal Type

3

02760-00331

Hose, Face Seal Type

4

20Y-62-22790

Band, Red

5

20Y-62-22810

Band, Yellow

6

04434-53412

Clip

7

02760-00312

Hose, Face Seal Type

8

04435-51612

Clip

9

04434-51612

Clip

10

01010-81225

Bolt

11

01643-31232

Washer

12

02760-00304

Hose, Face Seal Type

13

21N-62-36660

Hose

14

02760-003A8

Hose, Face Seal Type

15

21M-62-14870

Hose

16

02760-003A9

Hose, Face Seal Type

17

21M-62-14860

Hose

18

02760-00318

Hose, Face Seal Type

19

20Y-62-22810

Band, Yellow

20

20Y-62-22830

Band, White

21

20Y-62-22840

Band, Black

22

20Y-62-22850

Band, Green

23

02896-11009

O-ring

24

21T-06-11950

Clip

25

02761-00308

Hose, Face Seal Type

26

21M-62-14850

Hose

27

20Y-62-22820

Band, Blue

28

20Y-62-22840

Band, Black

29

02896-11009

O-ring

30

04435-51812

Clip

31

01010-81230

Bolt

32

01643-31232

Washer

33

02782-10311

Elbow

|$33

02782-10311

Elbow

34

21N-64-36680

Tee

|$35

21N-64-36680

Tee

35

02782-10311

Elbow

|$37

02782-10311

Elbow

|$38

02782-10311

Elbow
