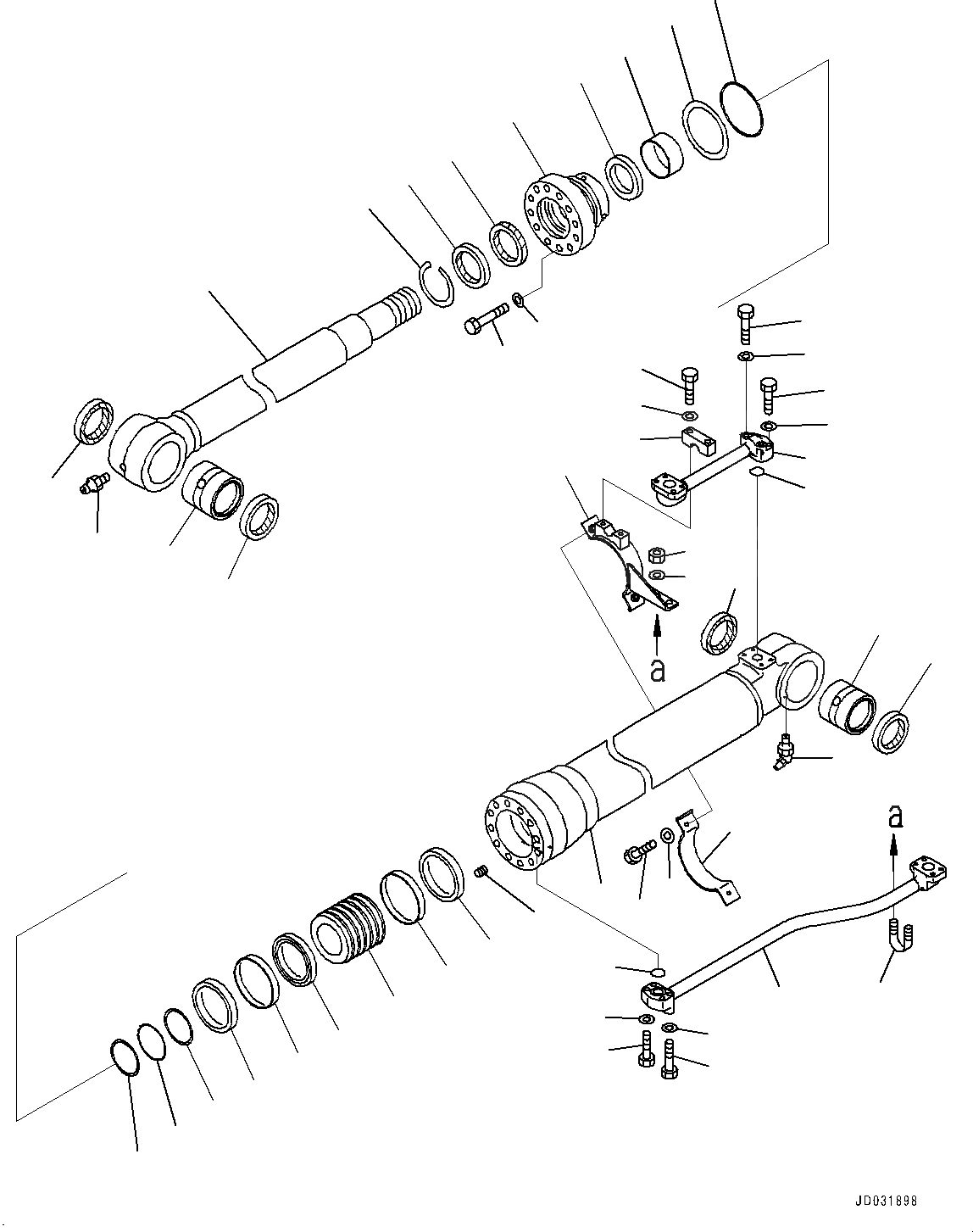

Запчасти Komatsu PC600LC-8E0 ПРОТИВОВЕС REMOVER, REMOVER ЦИЛИНДР, ЛЕВ. (№-) ПРОТИВОВЕС REMOVER

|$0

707-01-0K360

Cylinder Assembly

1

721-11-12980

Cylinder

2

707-58-85460

Rod, Piston

3

707-76-70651

Bushing

4

07145-00070

Seal, Dust, (Kit : K12)

5

07020-00675

Fitting, Grease

6

707-76-80431

Bushing

7

07145-00080

Seal, Dust, (Kit : K12)

8

07020-00000

Fitting, Grease

9

707-27-12921

Head, Cylinder

10

707-56-85740

Seal, Dust, (Kit : K12)

11

07179-13099

Ring, Snap

12

707-51-85030

Packing, Rod, (Kit : K12)

13

707-51-85640

Ring, Buffer, (Kit : K12)

14

707-52-90611

Bushing

15

707-35-91220

Ring, Back-up, (Kit : K12)

16

07000-15110

O-ring, (Kit : K12)

17

01010-81670

Bolt

18

01643-51645

Washer

19

707-36-12851

Piston

20

707-44-12180

Ring, Piston, (Kit : K12)

21

707-39-12140

Ring, Wear, (Kit : K12)

22

707-44-12911

Ring

23

07000-15075

O-ring, (Kit : K12)

24

707-35-90930

Ring, Back-up, (Kit : K12)

25

01310-01216

Screw

26

707-86-68000

Tube,L.H.

27

707-86-67990

Tube

28

707-88-28420

Bracket

29

07372-21060

Bolt

30

01643-51032

Washer

31

07372-21045

Bolt

32

01643-51032

Washer

33

707-88-21251

Band

34

07000-13030

O-ring, (Kit : K12)

35

07372-21035

Bolt

36

01643-51032

Washer

37

07283-32738

Clip, Pipe

38

01597-01009

Nut

39

01643-31032

Washer

40

707-88-27770

Bracket

41

01010-81050

Bolt

42

01643-31032

Washer
