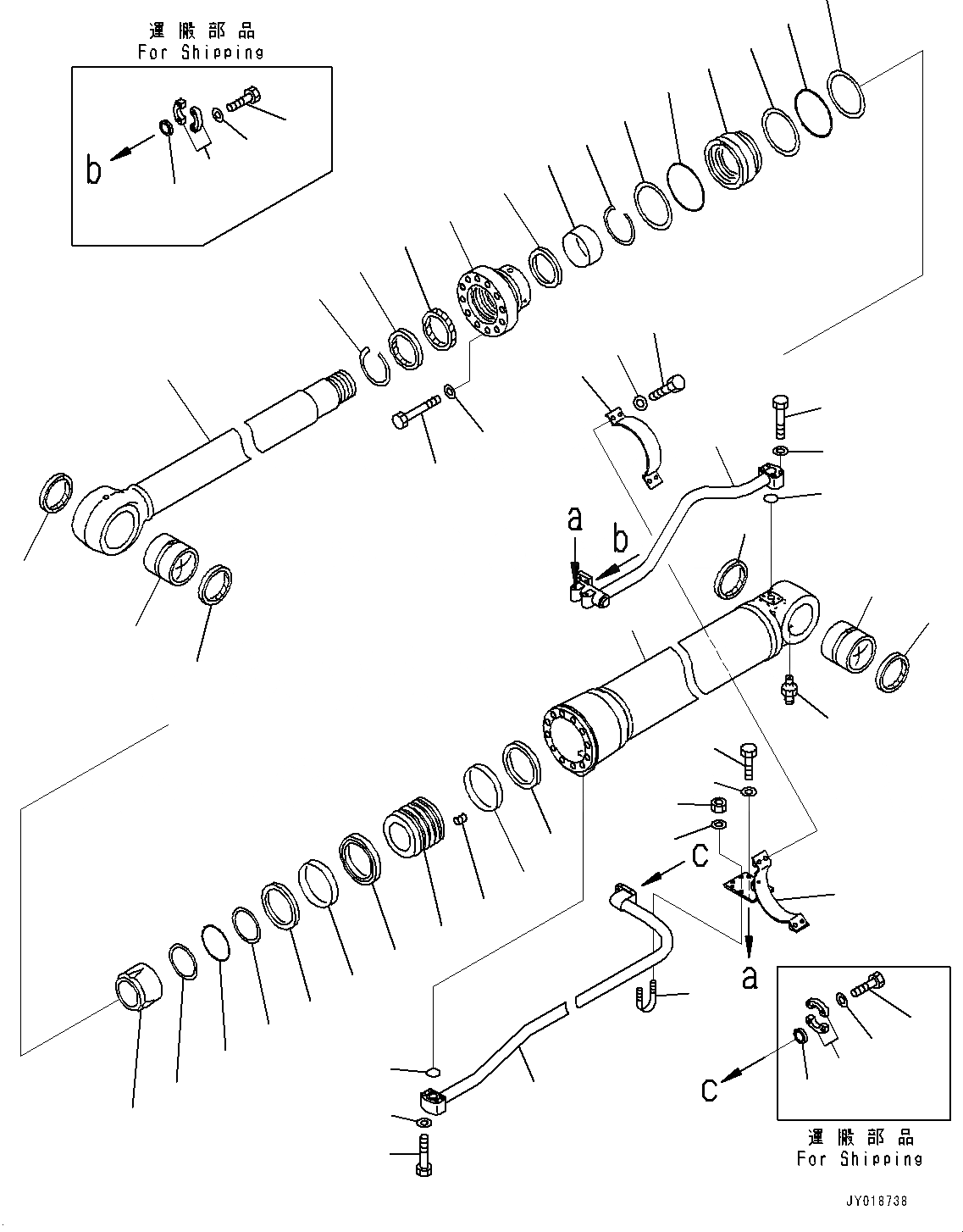

Запчасти Komatsu PC600LC-8E0 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№-) ЦИЛИНДР СТРЕЛЫ

|$0

707-01-0CA60

Boom Cylinder Assembly

1

721-13-18230

Cylinder

2

707-58-12660

Rod, Piston

3

707-76-11160

Bushing

4

07145-00110

Seal, Dust, (Kit : K02)

5

07020-00000

Fitting, Grease

6

707-76-12530

Bushing

7

07145-00125

Seal, Dust, (Kit : K02)

8

707-71-32900

Collar

9

707-35-91840

Ring, Back-up, (Kit : K02)

10

07000-15175

O-ring, (Kit : K02)

11

707-71-61330

Plunger

12

707-27-18930

Head, Cylinder

13

707-56-12740

Seal, Dust, (Kit : K02)

14

07179-13136

Ring, Snap

15

707-51-12030

Packing, Rod, (Kit : K02)

16

707-51-12650

Ring, Buffer, (Kit : K02)

17

707-52-90981

Bushing

18

07000-15175

O-ring, (Kit : K02)

19

707-35-91840

Ring, Back-up, (Kit : K02)

20

07179-13126

Ring, Snap

21

01011-82400

Bolt

22

707-88-75410

Washer

23

707-36-18520

Piston

24

707-44-18250

Ring, Piston, (Kit : K02)

25

707-39-18510

Ring, Wear, (Kit : K02)

26

707-44-18920

Ring

27

07000-B5110

O-ring, (Kit : K02)

28

07001-05110

Ring, Back-up, (Kit : K02)

29

01310-01225

Screw

30

707-86-13240

Tube,L.H.

31

21M-63-52180

Tube,L.H.

32

707-88-28240

Bracket

33

707-88-26120

Band

34

07372-21060

Bolt

35

01643-51032

Washer

36

07000-13035

O-ring, (Kit : K02)

37

01010-81025

Bolt

38

01643-31032

Washer

39

07283-33442

Clip, Pipe

40

01597-01009

Nut

41

01643-31032

Washer

42

07371-31049

Flange, Split

43

707-88-33040

Cap

44

07372-21035

Bolt

45

01643-51032

Washer

46

07372-21240

Bolt

47

01643-51232

Washer
