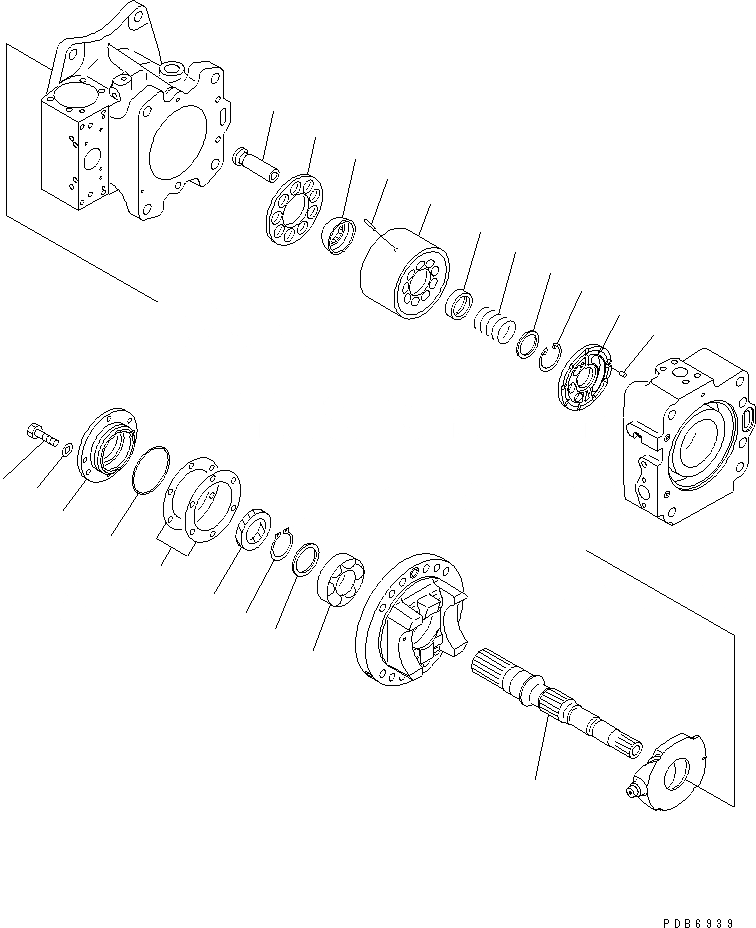

Запчасти Komatsu PC600LC-8 ОСНОВН. НАСОС (/) (NO. НАСОС) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2L-00771

PUMP ASSEMBLY

|1

708-2L-00770

PUMP ASSEMBLY

|1

708-2L-01632

PUMP SUB ASSEMBLY

1

708-2L-22430

SHAFT, FRONT

2

708-2L-32150

BEARING

3

708-2E-05040

WASHER KIT

|3

WASHER, 3.1MM

|3

WASHER, 3.0MM

|3

WASHER, 2.9MM

|3

WASHER, 2.8MM

4

708-25-12790

RING, SNAP

5

708-25-52861

SEAL, OIL

6

708-25-12812

HOUSING

7

07000-A2080

O-RING

8

708-25-05130

SHIM KIT

|8

SHIM, 0.2MM

|8

SHIM, 0.1MM

9

01010-80820

BOLT

10

01643-30823

WASHER

|11

708-2L-04151

BLOCK ASSEMBLY, REAR

11

BLOCK, CYLINDER

12

PLATE, VALVE

13

720-68-19610

PIN

14

04065-04818

RING, SNAP

15

708-2L-23131

SEAT

16

708-2L-33160

SPRING

17

708-7L-13140

SEAT

18

708-2L-23351

GUIDE, RETAINER

19

708-2L-23360

PIN

20

708-2L-33340

RETAINER, SHOE

21

708-2L-33310

PISTON SUB ASSEMBLY
