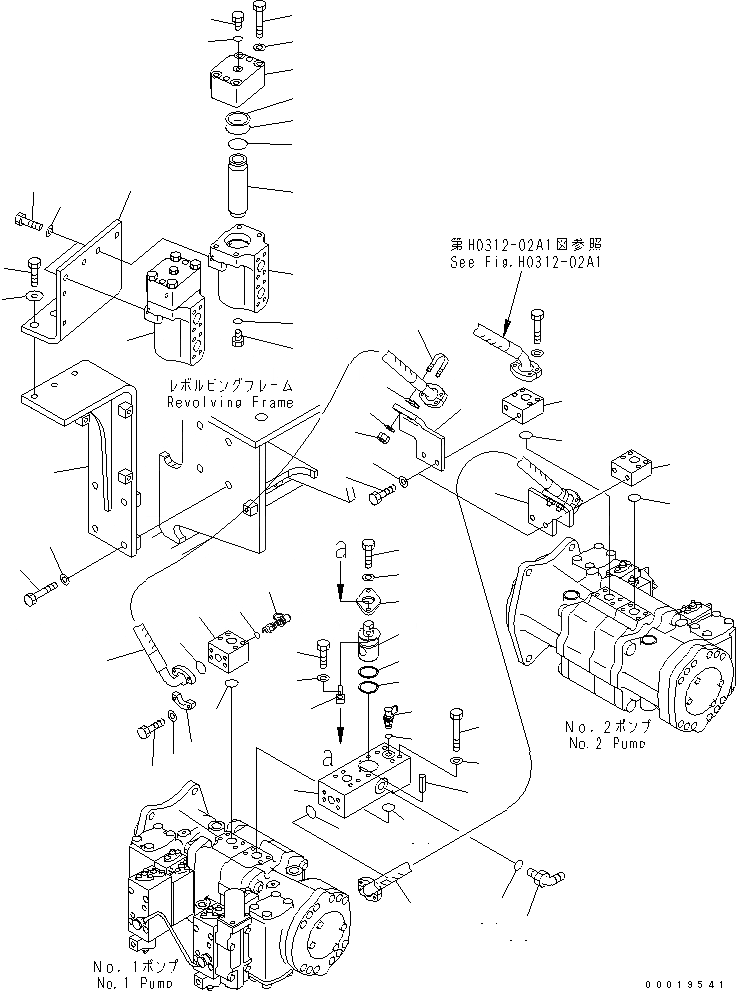

Запчасти Komatsu PC600LC-7 ЛИНИЯ ПОДАЧИS (НАСОС - ФИЛЬТР.) (ДЛЯ C/W REMOVER)(№-) ГИДРАВЛИКА

1

21M-62-11750

HOSE

2

07000-13025

O-RING

3

07371-30640

FLANGE

4

07372-21035

BOLT

5

01643-51032

WASHER

6

21M-62-18130

BRACKET

7

21M-62-11741

BRACKET

8

01010-81230

BOLT

9

01643-31232

WASHER

10

07283-32244

CLIP

11

07283-52232

SEAT

12

01597-01009

NUT

13

01643-31032

WASHER

14

21M-62-11121

BLOCK

15

07000-13032

O-RING

16

209-62-61310

NIPPLE ASS'Y

17

209-62-61330

O-RING

18

21M-62-11110

BLOCK

19

07000-13032

O-RING

|$31

21M-62-18110

VALVE ASS'Y

20

207-60-31730

PIN

21

20Y-970-3350

FLANGE

22

BLOCK

23

209-62-75221

SHAFT

24

01010-81025

BOLT

25

01643-31032

WASHER

26

01010-81040

BOLT

27

01643-31032

WASHER

28

04025-00412

PIN

29

07000-13042

O-RING

30

07000-13048

O-RING

31

07000-13032

O-RING

32

209-62-61310

NIPPLE ASS'Y

33

209-62-61330

O-RING

34

01011-81000

BOLT

35

01643-31032

WASHER

36

07235-10315

ELBOW

37

07002-12034

O-RING

|$55

21M-60-11301

FILTER ASS'Y

38

21M-60-11311

CASE

39

CASE

40

01010-81285

BOLT

41

01643-51232

WASHER

42

07000-12055

O-RING

43

07000-13038

O-RING

44

07001-02055

RING

45

07002-11023

O-RING

46

07040-11007

PLUG

47

07063-21200

ELEMENT

48

01010-81235

BOLT

49

01643-31232

WASHER

50

21M-62-11621

BRACKET

51

01010-81250

BOLT

52

175-54-34170

WASHER

53

21M-62-12160

BRACKET

54

01010-81680

BOLT

55

01643-31645

WASHER
