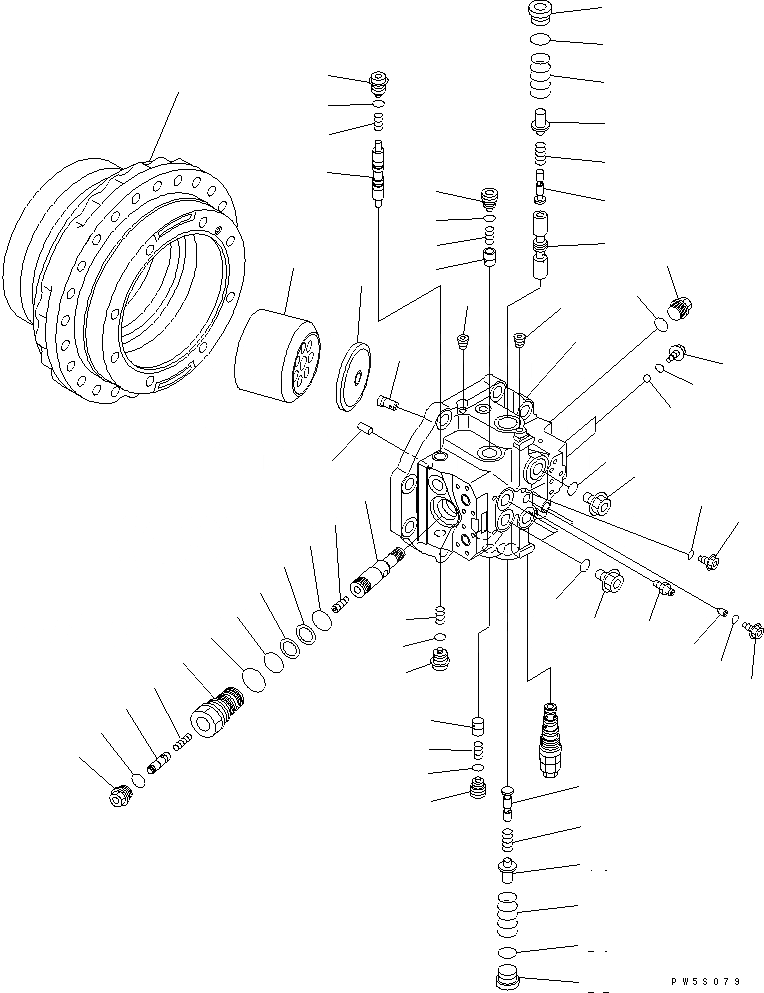

Запчасти Komatsu PC600LC-7-M1 МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

706-88-01101

MOTOR ASS'Y

1

706-88-40220

CASE,MOTOR

|2

706-88-00060

END COVER SUB ASS'Y

2

COVER,END

3

PLATE ASS'Y,VALVE

4

BLOCK,CYLINDER

5

SPOOL

6

PLUG

7

708-8K-15190

PIN,DOWEL

8

706-77-72170

PLUG

9

07002-12434

O-RING

10

20B-27-11210

BLEEDER

11

706-88-50230

PISTON

12

706-88-50210

PIN

13

706-87-51120

SCREW

14

706-75-74540

VALVE

15

706-75-74550

SPRING

16

706-75-74850

PLUG

17

07002-13334

O-RING

18

706-78-71490

PISTON

19

706-78-71470

PISTON

20

706-78-71480

SPRING

21

706-78-71280

SPRING

22

706-78-71230

PLUG

23

07002-13634

O-RING

|24

706-88-00210

SLEEVE ASS'Y

24

706-88-50250

SLEEVE

25

07002-15234

O-RING

26

07000-13035

O-RING

27

706-88-50310

RING,BACK-UP

28

07000-13038

O-RING

29

706-88-50320

RING,BACK-UP

30

706-8E-14170

SPRING

31

706-88-50240

SPOOL

32

706-88-50160

PLUG

33

07002-13034

O-RING

34

706-77-71670

PLUG

35

07002-13034

O-RING

36

04260-00793

BALL

37

706-8E-14110

PLUG

38

07002-11023

O-RING

39

708-8E-16180

VALVE

40

708-8E-16160

PLUG

41

07002-11023

O-RING

42

706-78-71250

SPOOL

43

706-78-71270

SPRING

44

706-78-71260

PLUG

45

07002-12034

O-RING
