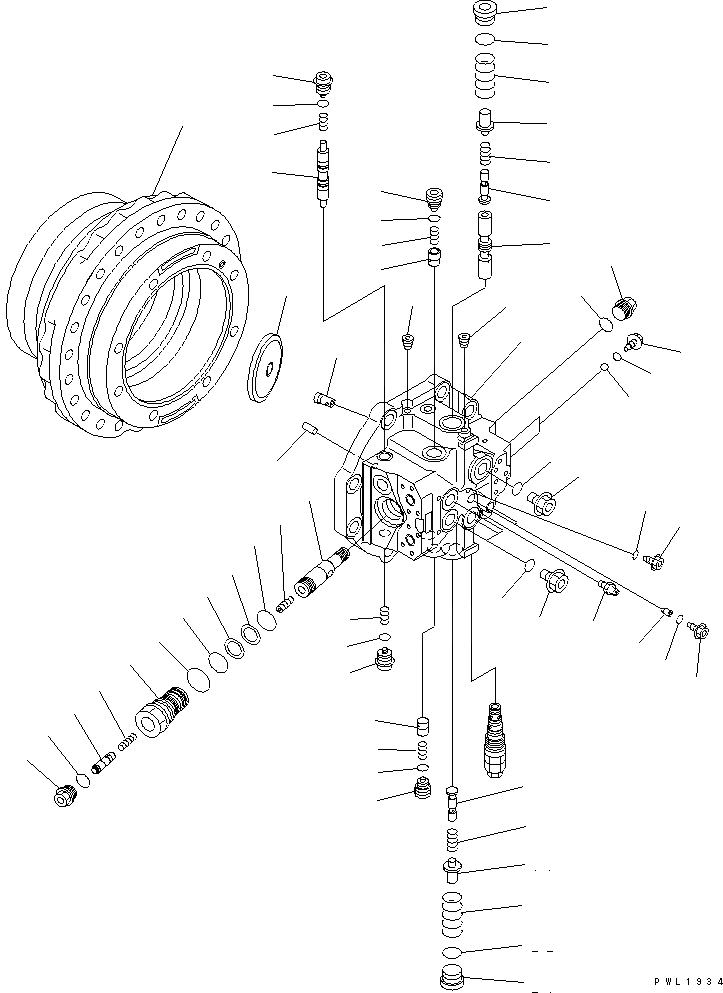

Запчасти Komatsu PC600LC-6K МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

706-88-01101

MOTOR ASS'Y

1

706-88-40220

CASE,MOTOR

|2

706-88-00060

END COVER SUB ASS'Y

2

COVER,END

3

PLATE ASS'Y,VALVE

4

SPOOL

5

PLUG

6

708-8K-15190

PIN,DOWEL

7

706-77-72170

PLUG

8

07002-12434

O-RING

9

20B-27-11210

BLEEDER

10

706-88-50230

PISTON

11

706-88-50210

PIN

12

706-87-51120

SCREW

13

706-75-74540

VALVE

14

706-75-74550

SPRING

15

706-75-74850

PLUG

16

07002-13334

O-RING

17

706-78-71490

PISTON

18

706-78-71470

PISTON

19

706-78-71480

SPRING

20

706-78-71280

SPRING

21

706-78-71230

PLUG

22

07002-13634

O-RING

23

706-88-50250

SLEEVE

24

07002-15234

O-RING

25

07000-13035

O-RING

26

706-88-50310

RING,BACK-UP

27

07000-13038

O-RING

28

706-88-50320

RING,BACK-UP

29

706-8E-14170

SPRING

30

706-88-50240

SPOOL

31

706-88-50160

PLUG

32

07002-13034

O-RING

33

706-77-71670

PLUG

34

07002-13034

O-RING

35

04260-00793

BALL

36

706-8E-14110

PLUG

37

07002-11023

O-RING

38

708-8E-16180

VALVE

39

708-8E-16160

PLUG

40

07002-11023

O-RING

41

706-78-71250

SPOOL

42

706-78-71270

SPRING

43

706-78-71260

PLUG

44

07002-12034

O-RING
