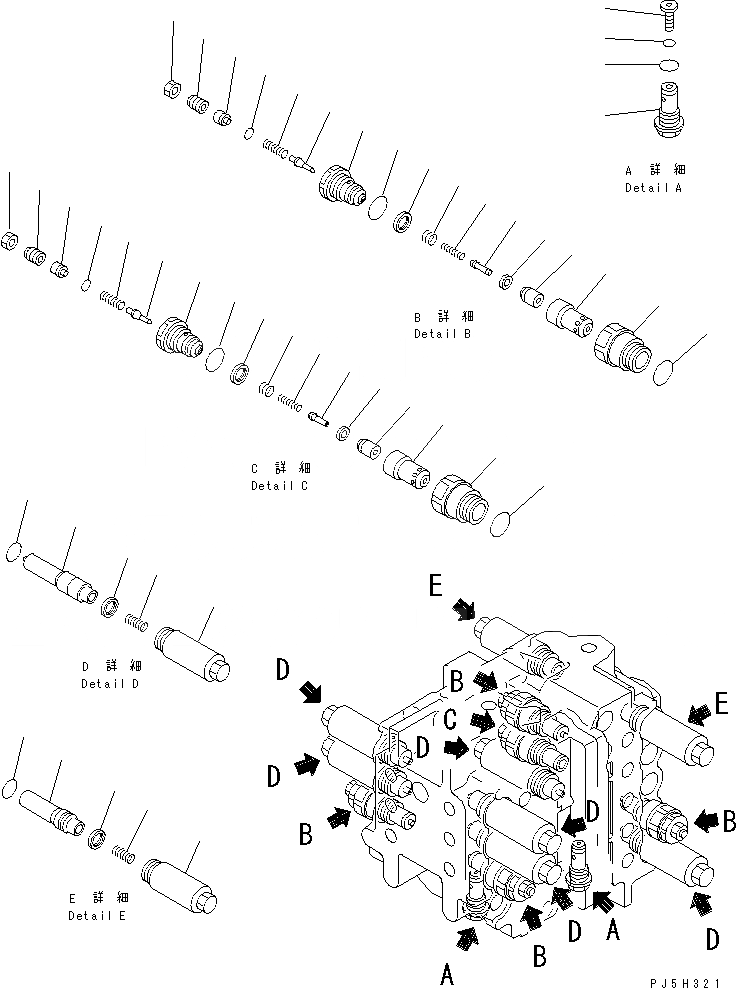

Запчасти Komatsu PC600LC-6A ОСНОВН. КЛАПАН (/8) (ДЛЯ ПОГРУЗ.)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

709-99-14900

CONTROL VALVE

|$3

709-90-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|$8

709-90-64100

VALVE ASS'Y,SUCTION

5

SLEEVE

6

07002-03634

O-RING

7

VALVE

8

SEAL

9

SPRING

|$14

700-90-74001

VALVE ASS'Y,SUCTION

10

SLEEVE

11

07002-03634

O-RING

12

VALVE

13

SEAL

14

SPRING

|$20

709-90-71100

VALVE ASS'Y,SUCTION AND SAFETY

15

SLEEVE

16

SLEEVE

17

POPPET

18

PISTON

19

PLUG

20

POPPET

21

SCREW

22

SPACER

23

SPRING

24

SPRING

25

SPRING

26

SEAL

27

SEAL

28

O-RING

29

07002-03634

O-RING

30

O-RING

31

NUT

|$38

709-90-73300

VALVE ASS'Y,SUCTION AND SAFETY

32

SLEEVE

33

SLEEVE

34

POPPET

35

PISTON

36

PLUG

37

POPPET

38

SCREW

39

SPACER

40

SPRING

41

SPRING

42

SPRING

43

SEAL

44

SEAL

45

O-RING

46

07002-13634

O-RING

47

O-RING

48

NUT
