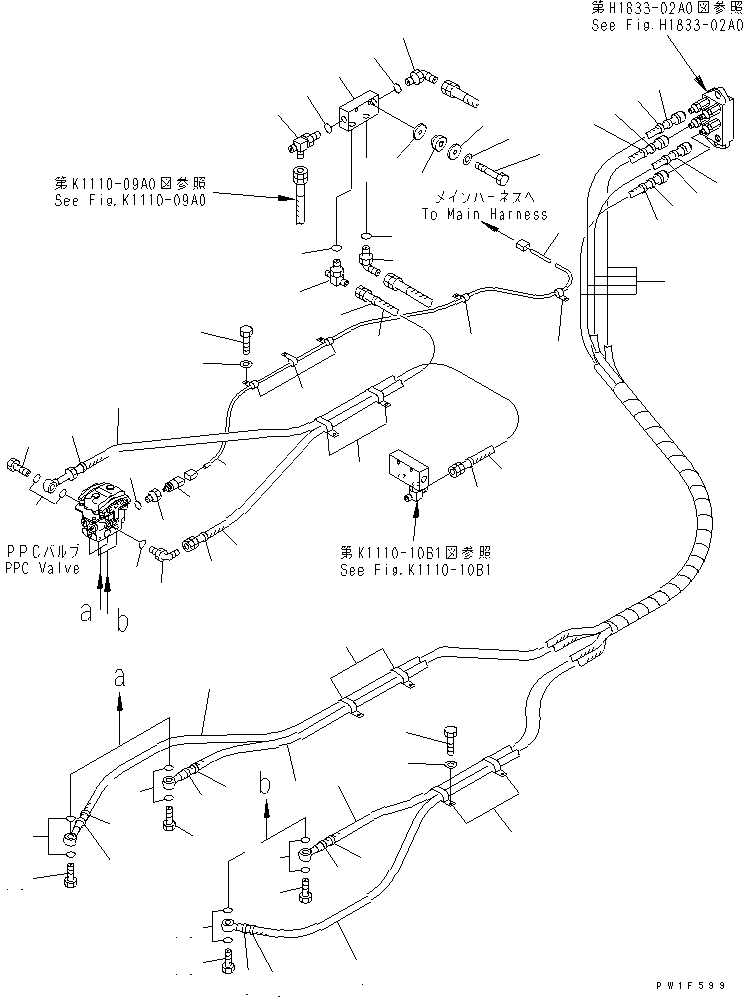

Запчасти Komatsu PC600LC-6A ОСНОВН. КОНСТРУКЦИЯ (PPC ЛИНИЯ ХОДА) ( АКТУАТОР)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

21M-62-16621

HOSE

2

20Y-62-22810

BAND, YELLOW

3

20Y-62-22830

BAND, WHITE

4

20Y-62-22840

BAND, BLACK

5

20Y-62-22850

BAND, GREEN

6

20Y-62-22860

BAND, BROWN

7

209-62-79290

HOSE, 1320MM

8

20Y-62-22790

BAND, RED

9

209-62-77360

HOSE, 1000MM

10

20Y-62-22820

BAND, BLUE

11

702-16-53240

PLUG

12

07000-12018

O-RING

13

07235-10311

ELBOW

14

07002-11423

O-RING

15

20Y-62-16170

BOLT

16

07000-12015

O-RING

17

04435-51510

CLIP

18

01010-81016

BOLT

19

01643-31032

WASHER

20

209-62-77181

BLOCK

21

209-62-57210

TEE

22

07002-12034

O-RING

23

07235-10315

ELBOW

24

07002-12034

O-RING

25

209-62-27580

TEE

26

07002-12034

O-RING

27

195-03-41380

CUSHION

28

178-60-12250

COLLAR

29

01010-81050

BOLT

30

01643-31032

WASHER

31

20Y-62-41390

ADAPTER

32

07002-11423

O-RING

33

20Y-06-21710

SWITCH

34

203-06-67330

WIRING HARNESS

35

04434-51010

CLIP

36

01010-81016

BOLT

37

01643-31032

WASHER
