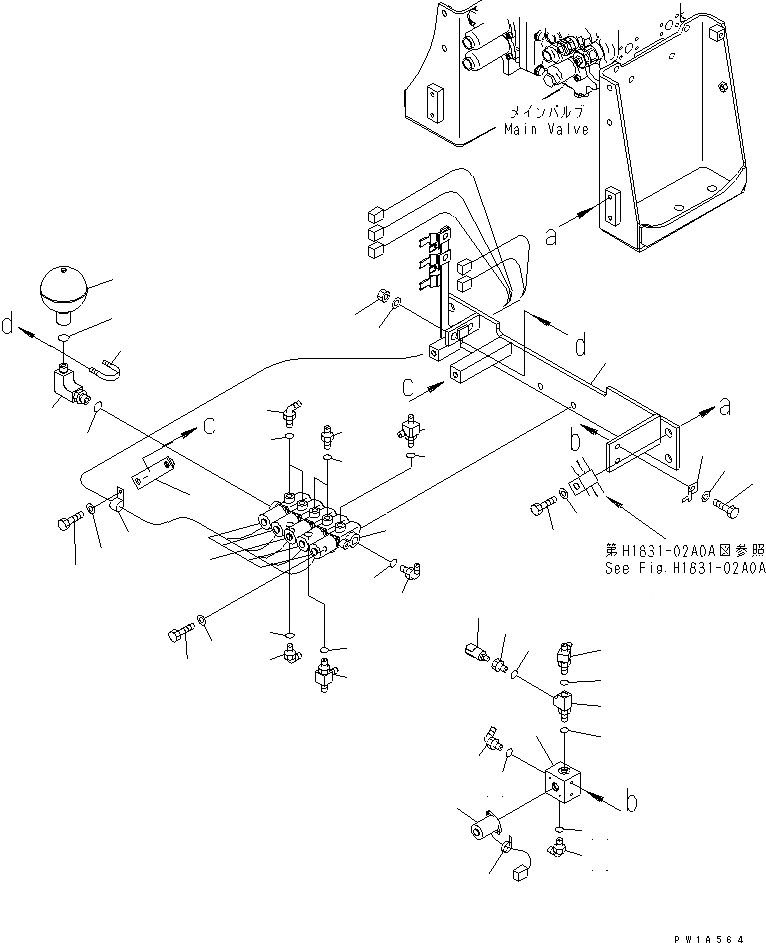

Запчасти Komatsu PC600LC-6A СОЛЕНОИДНЫЙ КЛАПАН (СОЛЕНОИД И EPC VALEVE)(№-) ГИДРАВЛИКА

1

21M-62-15160

BRACKET

2

01010-81230

BOLT

3

01643-31232

WASHER

|$7

209-60-77230

VALVE ASS'Y

4

BLOCK

5

209-60-77250

SOLENOID ASS'Y

6

01010-80825

BOLT

7

01643-30823

WASHER

8

08193-20010

CLIP

9

08034-20519

BAND

9

08034-00519

BAND

10

07235-10311

ELBOW

11

07002-11423

O-RING

12

21T-62-29960

TEE

13

07002-11423

O-RING

14

207-62-61680

TEE

15

07002-11423

O-RING

16

20Y-62-41390

ADAPTER

16

421-35-11671

ADAPTER

17

07002-11423

O-RING

18

206-06-61130

SWITCH

|$29

209-60-77240

VALVE ASS'Y,(SEE FIG.Y1860-01A0)

19

209-60-77250

SOLENOID ASS'Y

20

BLOCK

21

01010-81095

BOLT

22

01643-31032

WASHER

23

207-977-5120

BRACKET

24

04434-51512

CLIP

25

01010-81225

BOLT

26

01643-31232

WASHER

27

205-62-55270

NIPPLE

28

07002-11423

O-RING

29

21T-62-29960

TEE

30

07002-11423

O-RING

31

07235-10311

ELBOW

32

07002-11423

O-RING

33

07235-10315

ELBOW

34

07002-12034

O-RING

35

20Y-62-22330

ELBOW

36

07002-12034

O-RING

37

209-62-57210

TEE

38

07002-12034

O-RING

39

20Y-60-11430

ACCUMULATOR

40

203-62-65281

ELBOW

41

07002-12034

O-RING

42

07283-33450

CLIP

43

01597-01009

NUT

44

01643-31032

WASHER
