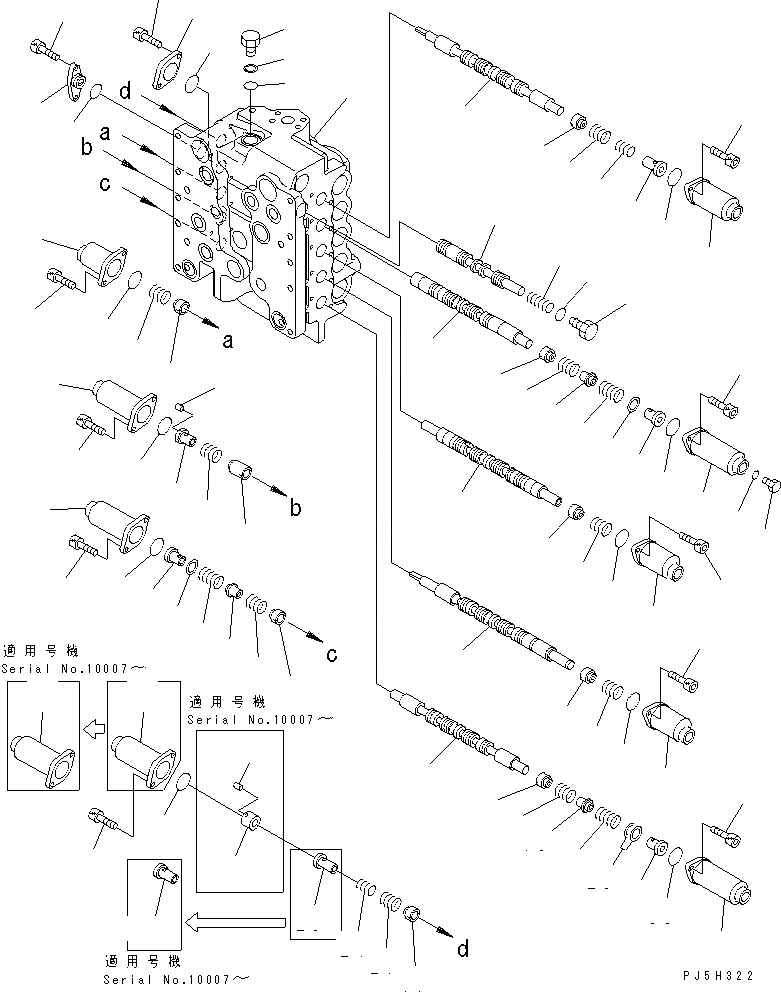

Запчасти Komatsu PC600LC-6 ОСНОВН. КЛАПАН (7/8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-99-14701

CONTROL VALVE

|1

709-99-14700

CONTROL VALVE

|1

709-95-92391

BODY GROUP

|1

709-95-92390

BODY GROUP

1

BODY,VALVE

2

SPOOL

3

SPOOL

|3

SPOOL

4

SPOOL

5

SPOOL SUB ASS'Y

6

SPOOL

7

SPOOL

8

709-74-91850

PLUG

9

07000-12018

O-RING

10

07001-02018

RING,BACK-UP

11

709-74-92590

PLATE

12

709-74-92170

O-RING

13

709-94-92510

SPRING

14

709-94-92520

SPRING

15

709-94-92530

RETAINER

16

709-94-92540

RETAINER

17

709-94-91130

RETAINER

18

709-94-92890

RETAINER

19

709-94-92630

RETAINER

20

709-94-92550

SPACER¤ 0.5MM

21

709-94-91120

SPRING

22

709-94-92940

SPRING

23

709-94-91170

RETAINER

|23

709-94-91170

RETAINER

23A

709-94-92960

RETAINER

23B

709-94-92950

SPACER

24

709-94-91180

SPRING

25

709-94-92770

RETAINER

26

04022-04008

PIN

|26

04022-04008

PIN

27

709-94-91210

CASE

28

709-94-92560

CASE

29

709-94-91720

CASE

|29

709-94-91720

CASE

30

07430-71380

O-RING

31

709-94-92610

CASE

|31

709-94-92610

CASE

32

01252-60820

BOLT

33

07040-12012

PLUG

34

07002-12034

O-RING

35

709-94-91160

SPRING

36

709-94-91240

PLATE

37

07000-F2022

O-RING

38

01252-60820

BOLT

39

709-74-92230

PLUG

40

07002-13034

O-RING
