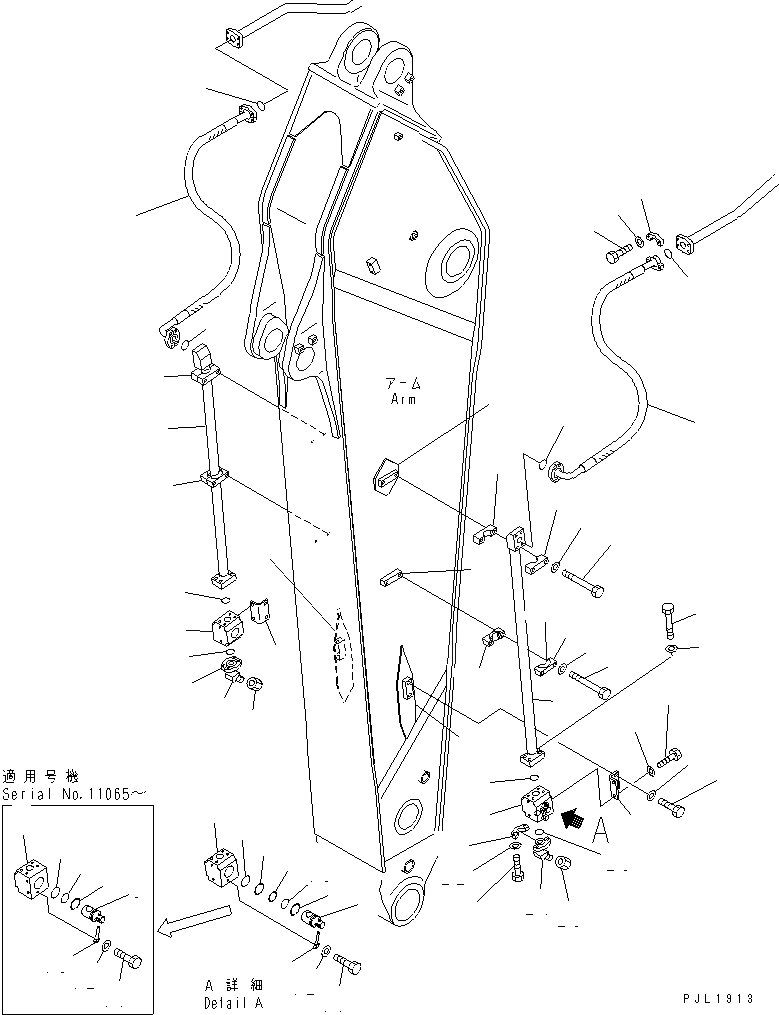

Запчасти Komatsu PC600LC-6 РУКОЯТЬ (.M) (ДОПОЛН. ГИДРОЛИНИЯ) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

209-72-54370

SEAT

2

21M-970-1140

BRACKET

3

21M-970-1152

BRACKET

4

21M-970-1560

BRACKET

5

21M-970-1172

BRACKET

6

01010-81640

BOLT

7

01643-31645

WASHER

|$10

21M-970-1204

VALVE ASS'Y

|$11

21M-970-1203

VALVE

|$12

21M-970-1202

VALVE ASS'Y

|$13

21M-970-1201

VALVE ASS'Y

8

BLOCK

8

BLOCK

8

BLOCK

9

21M-970-1223

ROTOR

9

21M-970-1222

ROTOR

9

21M-970-1221

ROTOR

9

21M-970-1220

ROTAR

10

202-970-2210

PIN

11

01010-81230

BOLT

12

01643-31232

WASHER

13

04065-05820

RING

13

04065-05220

RING

14

07001-03042

RING

15

07000-12050

O-RING

15

07000-13042

O-RING

16

07001-03048

RING

17

07000-12055

O-RING

17

07000-13048

O-RING

18

01010-81640

BOLT

19

01643-31645

WASHER

20

07371-51260

FLANGE

21

01010-81245

BOLT

22

01643-31232

WASHER

23

07000-13038

O-RING

24

208-970-5250

NIPPLE

25

208-970-5260

PLUG

26

21M-970-1132

TUBE

27

01010-81250

BOLT

28

01643-31232

WASHER

29

07000-13038

O-RING

30

209-62-58370

CLAMP

31

209-62-58520

SEAT

32

01010-81295

BOLT

33

01643-31232

WASHER

34

21M-970-1510

CLAMP

35

01010-81295

BOLT

36

01643-31232

WASHER

37

07098-21222

HOSE

38

07000-13038

O-RING

39

07371-51260

FLANGE

40

01010-81245

BOLT

41

01643-31232

WASHER
