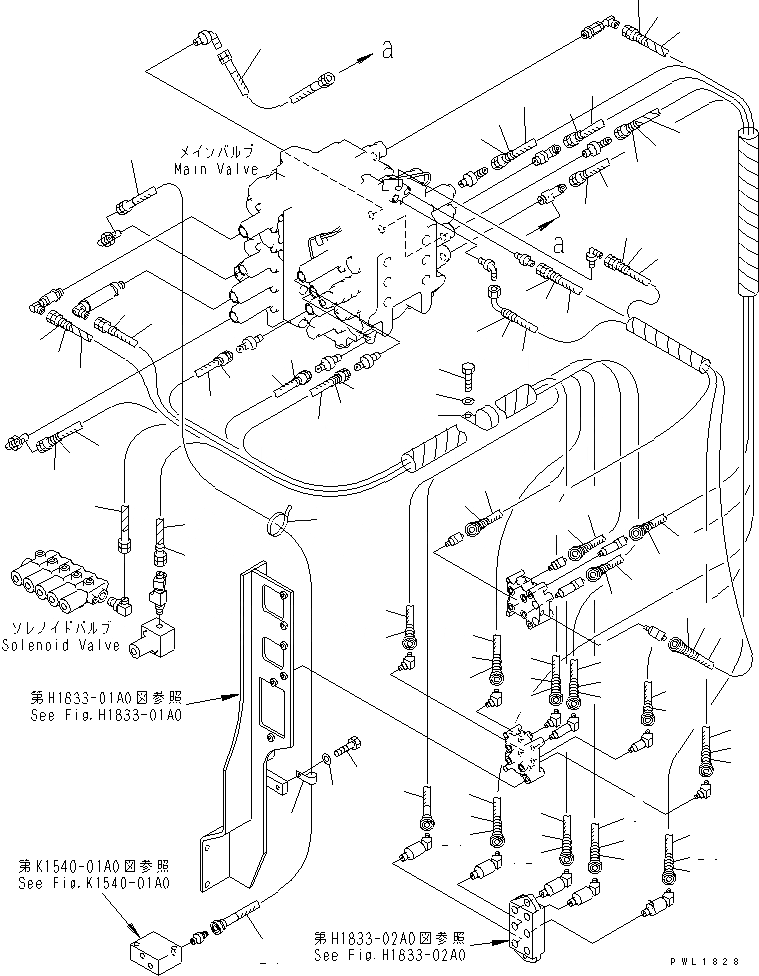

Запчасти Komatsu PC600LC-6 ОСНОВН. ЛИНИЯ PPC ( АКТУАТОР) ГИДРАВЛИКА

1

20Y-62-22790

BAND, RED

2

20Y-62-22810

BAND, YELLOW

3

20Y-62-22820

BAND, BLUE

4

20Y-62-22840

BAND, BLACK

5

21M-62-16840

HOSE, 600MM

6

21M-62-16681

HOSE, 800MM

7

21M-62-16890

HOSE, 600MM

8

209-62-78681

HOSE, 1100MM

9

209-62-78691

HOSE, 1200MM

10

21M-62-16691

HOSE, 900MM

11

20Y-62-22790

BAND, RED

12

20Y-62-22810

BAND, YELLOW

13

20Y-62-22830

BAND, WHITE

14

20Y-62-22840

BAND, BLACK

15

20Y-62-22850

BAND, GREEN

16

21M-62-16791

HOSE, 850MM

17

21M-62-16850

HOSE, 700MM

18

21M-62-16860

HOSE, 1000MM

19

20Y-62-22820

BAND, BLUE

20

20Y-62-22830

BAND, WHITE

21

20Y-62-22850

BAND, GREEN

22

20Y-62-22860

BAND, BROWN

23

209-62-78760

HOSE, 250MM

24

21T-06-11950

CLIP

25

01010-81230

BOLT

26

01643-31232

WASHER

27

21N-62-35611

HOSE, 2000MM

27

209-62-78581

HOSE, 2300MM

28

04434-51512

CLIP

29

01010-81225

BOLT

30

01643-31232

WASHER

31

08034-20536

BAND

31

08034-00536

BAND
