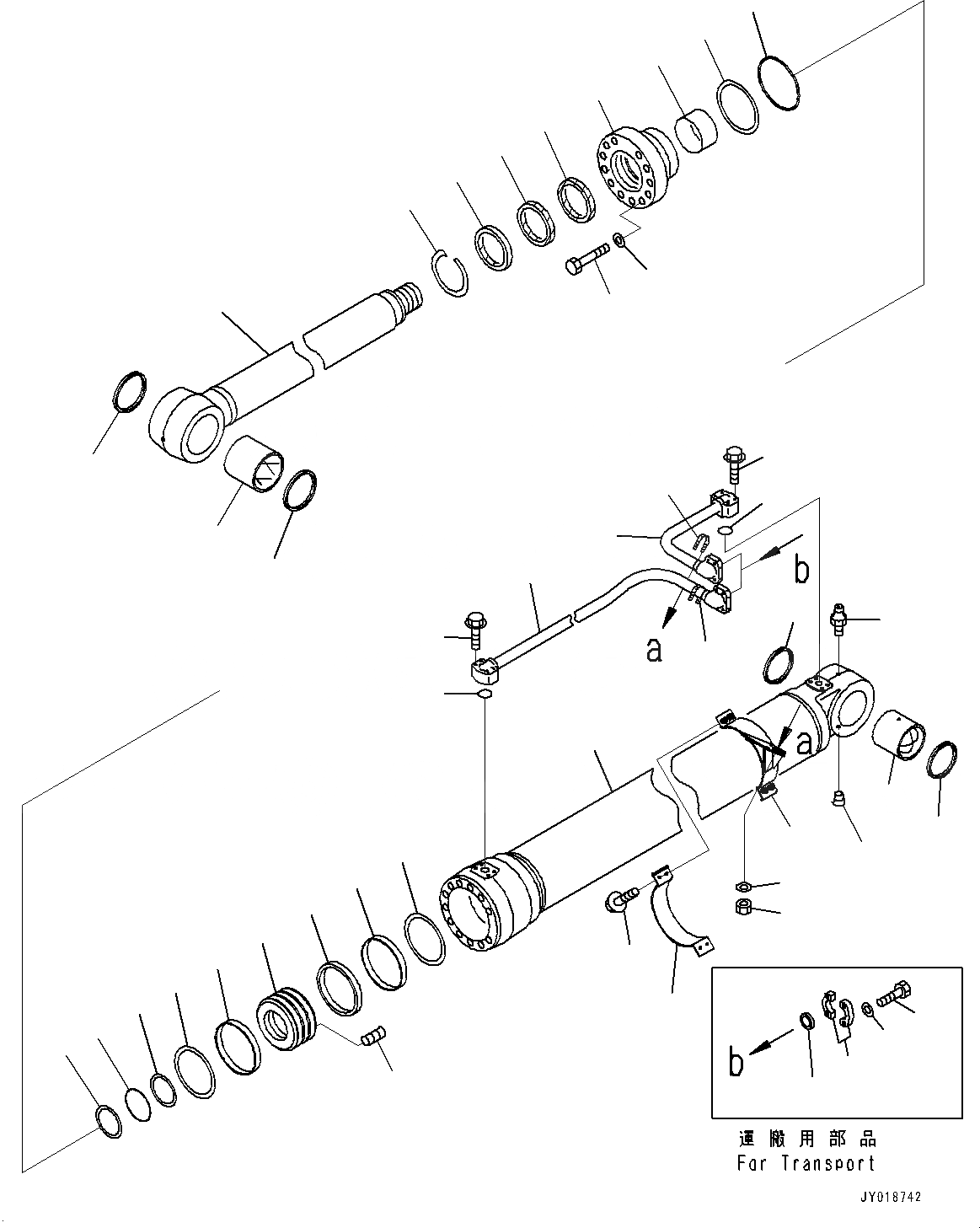

Запчасти Komatsu PC600-8R1 ПРЯМАЯ ЛОПАТА БЛОК, ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№7-) ПРЯМАЯ ЛОПАТА БЛОК

|$0

707-01-0E870

Cylinder Assembly

1

707-13-18730

Cylinder

2

707-58-12490

Rod, Piston

3

707-76-11160

Bushing

4

07145-00110

Seal, Dust, (Kit : K07)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-12530

Bushing

8

07145-00125

Seal, Dust, (Kit : K07)

9

707-27-18970

Cylinder Head

10

07179-14146

Ring, Snap

11

707-56-13740

Seal, Dust, (Kit : K07)

12

707-52-91071

Bushing

13

707-51-13030

Packing, Rod, (Kit : K07)

14

707-51-13640

Ring, Buffer, (Kit : K07)

15

07000-15175

O-ring, (Kit : K07)

16

707-35-91840

Ring, Back-up, (Kit : K07)

17

01011-82400

Bolt

18

707-88-75410

Washer

19

707-36-18530

Piston

20

707-44-18280

Ring, Piston, (Kit : K07)

21

707-39-18830

Ring, Wear, (Kit : K07)

22

707-44-18920

Ring

23

07000-15120

O-ring, (Kit : K07)

24

07001-05120

Ring, Back-up, (Kit : K07)

25

01310-01225

Screw

26

707-86-12150

Tube

27

707-86-12130

Tube

28

01435-01055

Bolt

29

07000-13035

O-ring, (Kit : K07)

30

707-88-25010

Bracket

31

707-88-21090

Band

32

01435-01235

Bolt

33

07283-33442

Clip, Pipe

34

01597-01009

Nut

35

01643-31032

Washer

36

707-88-33040

Cap

37

07371-31049

Flange, Split

38

07372-21035

Bolt

39

01643-51032

Washer
