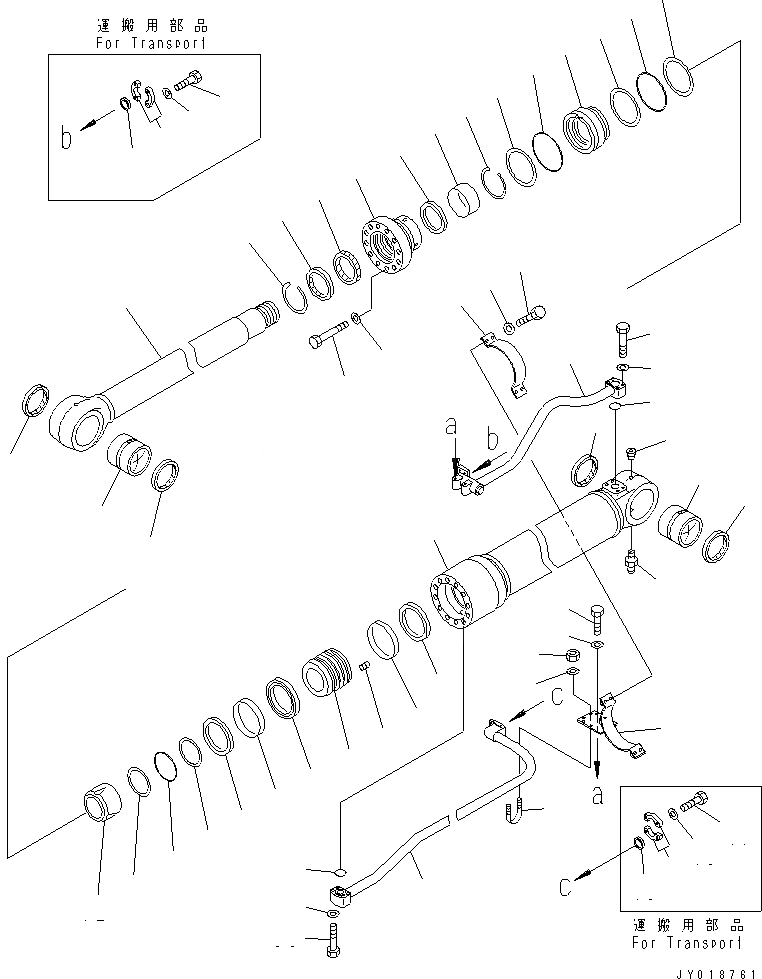

Запчасти Komatsu PC600-8R ЦИЛИНДР СТРЕЛЫЛЕВ.(№-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XR610

CYLINDER GROUP,L.H. (FINAL COATING)

|$3

707-01-0J630

BOOM CYLINDER ASS'Y

1

707-13-18950

CYLINDER

2

707-76-11160

BUSHING

3

07145-00110

SEAL,DUST (KIT)

4

07020-00000

FITTING,GREASE

5

07043-00108

PLUG

6

707-58-12660

ROD,PISTON

7

707-76-12530

BUSHING

8

07145-00125

SEAL,DUST (KIT)

9

707-71-32900

COLLAR

10

707-35-91840

RING,BACK-UP (KIT)

11

07000-15175

O-RING (KIT)

12

707-71-61330

PLUNGER

13

707-27-18930

HEAD,CYLINDER

14

707-56-12740

SEAL,DUST (KIT)

15

07179-13136

RING,SNAP

16

707-52-90981

BUSHING

17

07179-13126

RING,SNAP

18

707-51-12030

PACKING,ROD (KIT)

19

707-51-12650

RING,BUFFER (KIT)

20

707-35-91840

RING,BACK-UP (KIT)

21

07000-15175

O-RING (KIT)

22

01011-82400

BOLT

23

707-88-75410

WASHER

24

707-36-18520

PISTON

25

01310-01225

SCREW

26

707-44-18250

RING,PISTON (KIT)

27

707-39-18510

RING,WEAR (KIT)

28

707-44-18920

RING

29

07001-05110

RING,BACK-UP (KIT)

30

07000-15110

O-RING (KIT)

31

707-86-13240

TUBE,L.H.

32

21M-63-52180

TUBE,L.H.

33

07372-21060

BOLT

34

01643-51032

WASHER

35

07000-13035

O-RING (KIT)

36

707-88-28240

BRACKET

37

707-88-26120

BAND

38

07372-21240

BOLT

39

01643-51232

WASHER

40

07283-33442

CLIP

41

01643-31032

WASHER

42

01597-01009

NUT

43

01010-81025

BOLT

44

01643-31032

WASHER

45

707-88-33040

CAP

46

07371-31049

FLANGE,SPLIT

47

07372-21035

BOLT

48

01643-51032

WASHER

|$55

707-99-76130

SERVICE KIT
