Запчасти Komatsu PC600-8R ОХЛАЖД-Е (COVER)(№9-) СИСТЕМА ОХЛАЖДЕНИЯ

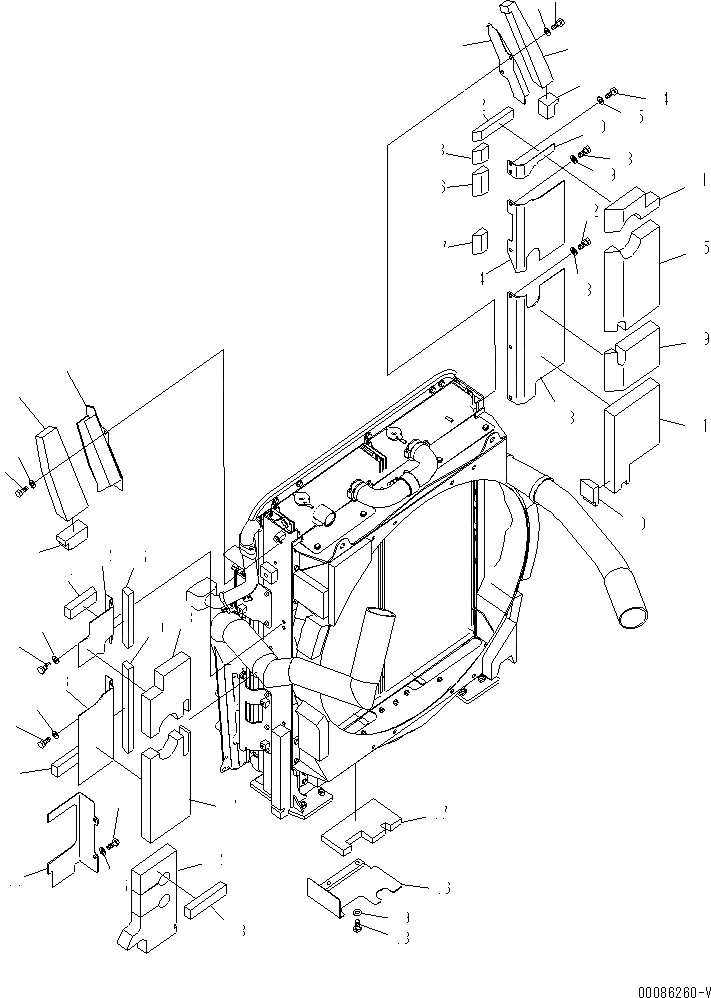

Схема запчастей Komatsu PC600-8R - ОХЛАЖД-Е (COVER)(№9-) СИСТЕМА ОХЛАЖДЕНИЯ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

Артикул

Название

Примечание

Количество

1

21M-03-21632

COVER

2

21M-03-21652

SEAL

3

21M-03-22560

SEAL

4

01010-81225

BOLT

5

01643-31232

WASHER

6

21M-03-21641

COVER

7

21M-03-21661

SEAL

8

21M-03-22570

SEAL

9

01010-81225

BOLT

10

01643-31232

WASHER

11

21M-03-22311

COVER

12

21M-03-22371

SEAL

13

21M-03-22550

SEAL

14

01010-81225

BOLT

15

01643-31232

WASHER

16

21M-03-22321

COVER

17

21M-03-22381

SEAL

18

21M-03-22391

SEAL

19

21M-03-22531

SEAL

20

01010-81225

BOLT

21

01643-31232

WASHER

22

21M-03-22331

COVER

23

21M-03-22411

SEAL

24

21M-03-22421

SEAL

25

21M-03-22541

SEAL

26

01010-81225

BOLT

27

01643-31232

WASHER

28

21M-03-22341

COVER

29

21M-03-22431

SEAL

30

21M-03-22440

SEAL

31

21M-03-22451

SEAL

32

01010-81225

BOLT

33

01643-31232

WASHER

34

21M-03-22351

COVER

35

21M-03-22461

SEAL

36

21M-03-22470

SEAL

37

21M-03-22480

SEAL

38

01010-81225

BOLT

39

01643-31232

WASHER

40

21M-03-22361

COVER

41

21M-03-22491

SEAL

42

21M-03-22510

SEAL

43

21M-03-22521

SEAL

44

01010-81225

BOLT

45

01643-31232

WASHER

46

21M-03-22211

COVER

47

21M-03-22230

SHEET

48

01010-81240

BOLT

49

01643-31232

WASHER

Выбрано товаров: 49
