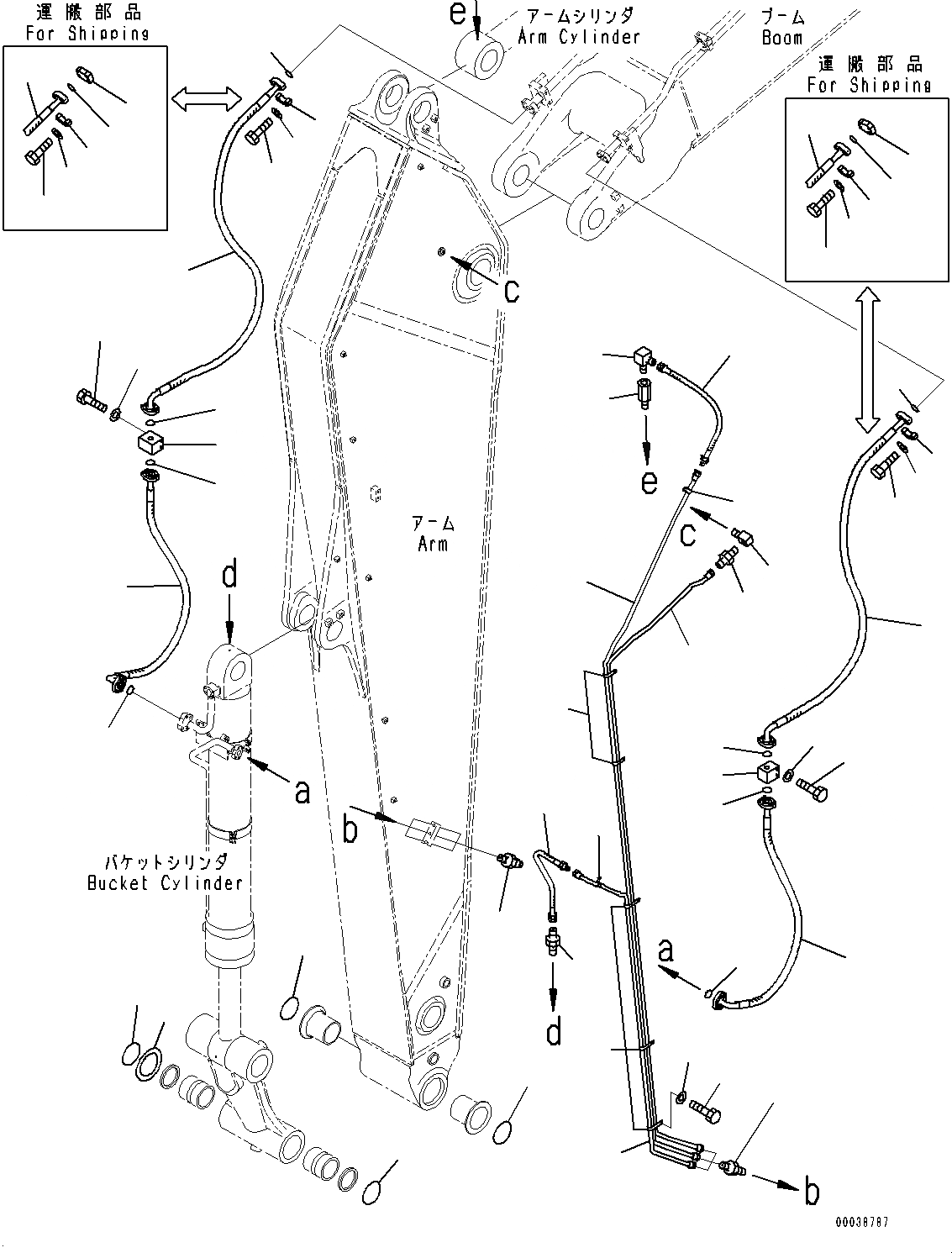

Запчасти Komatsu PC600-8E0 РУКОЯТЬ, ЦИЛИНДР КОВША ТРУБЫ (№-) РУКОЯТЬ, MM

1

07084-21A17

Hose, Flange Type

2

07000-13032

O-ring

3

07371-31049

Flange, Split

4

07372-21035

Bolt

5

01643-51032

Washer

6

07379-01044

Flange

7

07084-21218

Hose, Flange Type

8

07000-13038

O-ring

9

07371-51260

Flange, Split

10

01010-81245

Bolt

11

01643-31232

Washer

12

07379-01260

Flange

13

07084-21A21

Hose, Flange Type

14

07000-13032

O-ring

15

208-943-3130

Flange

16

01010-81290

Bolt

17

01643-31232

Washer

18

07084-21222

Hose, Flange Type

19

07000-13038

O-ring

20

209-943-5310

Block

21

01011-81220

Bolt

22

01643-31232

Washer

23

07214-51013

Connector

24

07020-00000

Fitting, Grease

25

21M-943-1510

Tube

26

21M-943-1520

Tube

27

21M-943-1530

Tube

28

421-70-13140

Elbow

29

07214-51013

Connector

30

203-06-53730

Clip

31

04435-51010

Clip

32

04434-51010

Clip

33

01010-81020

Bolt

34

01643-31032

Washer

35

208-70-62190

Hose

36

205-70-51390

Nipple

37

205-70-51380

Elbow

38

203-70-56570

Nipple

39

209-70-53150

O-ring

40

208-70-33181

O-ring

41

209-72-11220

Shim, T=1.0mm
