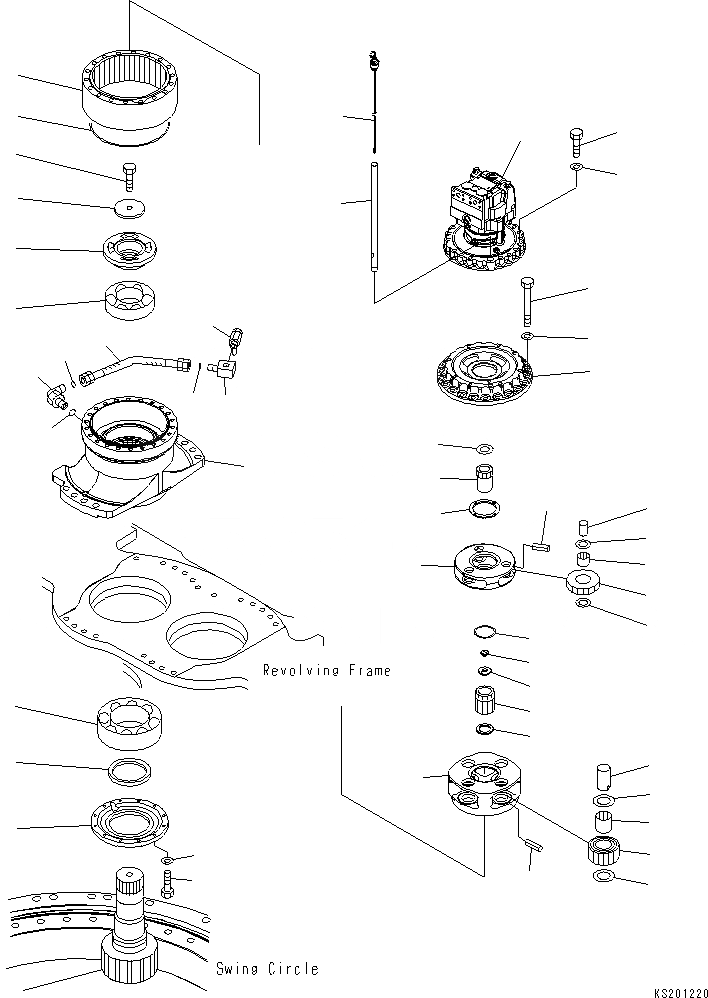

Запчасти Komatsu PC600-8 МЕХАНИЗМ ПОВОРОТА (ПРАВ.) N ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

1

706-75-01461

MOTOR ASSEMBLY

|1

706-75-01460

MOTOR ASSEMBLY

2

01010-81460

BOLT

3

01643-31445

WASHER

4

22U-26-21280

RING

5

21M-26-21170

CASE

6

06000-22222

BEARING

7

06000-22324

BEARING

8

207-26-54263

COVER

9

01010-81040

BOLT

10

01643-31032

WASHER

11

207-26-61210

SEAL

12

21M-26-11180

SHAFT

13

207-26-62150

COUPLING

14

207-26-54230

PLATE

15

205-32-51211

BOLT

16

20Y-27-22170

CARRIER

17

20Y-27-22140

GEAR

18

20Y-27-22220

BEARING

19

20Y-27-21250

WASHER

20

20Y-27-21230

PIN

21

20Y-27-21290

PIN

22

207-26-62190

GEAR

23

20Y-27-13310

WASHER

24

20Y-27-22240

WASHER

25

21M-26-11261

GEAR

|25

21M-26-11260

GEAR

26

21M-26-11150

CARRIER

27

21M-26-11140

GEAR

28

20Y-27-22210

BEARING

29

20Y-27-21240

WASHER

30

20Y-27-21220

PIN

31

20Y-27-21280

PIN

32

21M-26-11190

PLATE

33

21M-26-21130

GEAR

34

20Y-27-21310

WASHER

35

21M-26-11161

COVER

36

20Y-27-13281

BOLT

37

01643-31645

WASHER

38

21M-26-21230

BUTTON

|38

208-27-61350

BUTTON

39

20Y-27-22280

O-RING

40

21M-26-11270

ELBOW

41

02896-11018

O-RING

42

02782-10628

ELBOW

43

02896-11018

O-RING

44

02762-006A4

HOSE

45

07730-50004

VALVE

46

07002-12434

O-RING

47

21M-26-21180

GAUGE

48

21M-26-21220

FILLER
