Запчасти Komatsu PC600-8 ПРОТИВОВЕС REMOVER (ШЛАНГИ)(№-) РАЗНОЕ

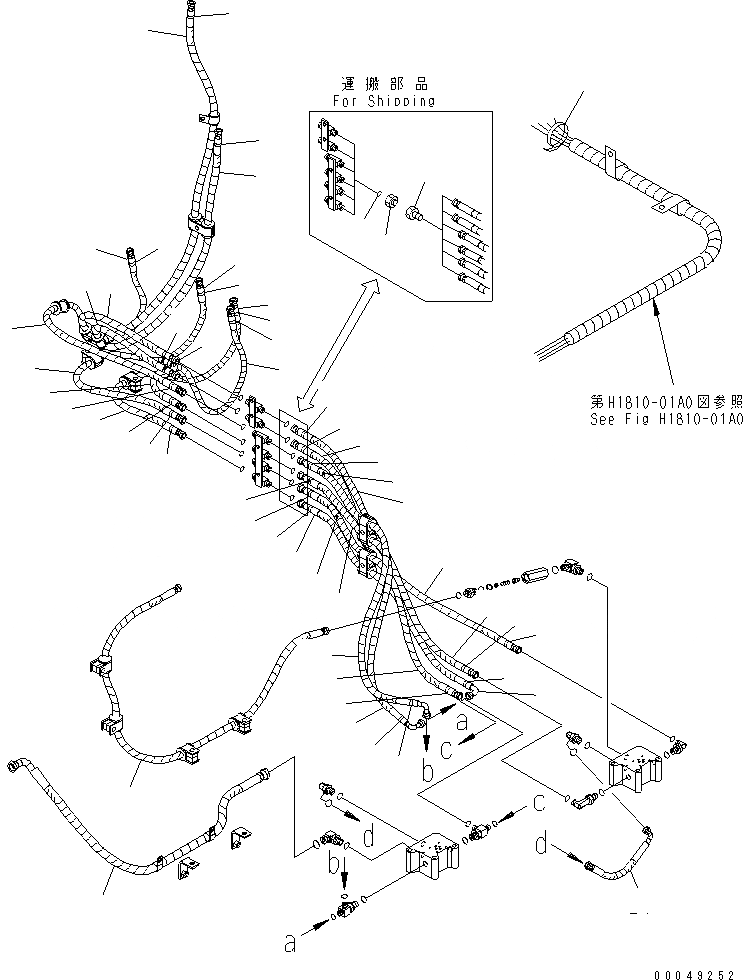

Схема запчастей Komatsu PC600-8 - ПРОТИВОВЕС REMOVER (ШЛАНГИ)(№-) РАЗНОЕ
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
26
27
28
29
30
31

Артикул

Название

Примечание

Количество

1

21M-62-22110

HOSE ASS'Y, 2100MM

2

20Y-62-22820

BAND, BLUE

3

21M-62-21931

HOSE ASS'Y, 1500MM

4

20Y-62-22850

BAND, GREEN

5

21M-62-21941

HOSE ASS'Y, 1600MM

6

20Y-62-22810

BAND, YELLOW

7

21M-62-21921

HOSE ASS'Y, 1400MM

8

20Y-62-22860

BAND, BROWN

9

21M-62-21951

HOSE ASS'Y, 1100MM

10

20Y-62-22830

BAND, WHITE

11

21M-62-22130

HOSE ASS'Y, 1200MM

12

20Y-62-22790

BAND, RED

13

21M-62-21911

HOSE ASS'Y, 1200MM

14

20Y-62-22820

BAND, BLUE

15

21M-62-22120

HOSE ASS'Y, 1200MM

16

20Y-62-22850

BAND, GREEN

17

21M-62-21981

HOSE ASS'Y, 1300MM

18

20Y-62-22810

BAND, YELLOW

19

21M-62-22140

HOSE ASS'Y, 1300MM

20

20Y-62-22830

BAND, WHITE

21

21M-62-21960

HOSE ASS'Y, 1100MM

22

20Y-62-22860

BAND, BROWN

23

21M-62-21971

HOSE ASS'Y, 1100MM

24

20Y-62-22790

BAND, RED

25

21M-62-21991

HOSE ASS'Y, 1300MM

26

21M-46-14640

HOSE ASS'Y, 1900MM

27

02757-003A3

HOSE

28

02789-10315

PLUG

29

07376-70315

PLUG

30

02896-61009

O-RING

31

08034-20536

BAND

Выбрано товаров: 31
