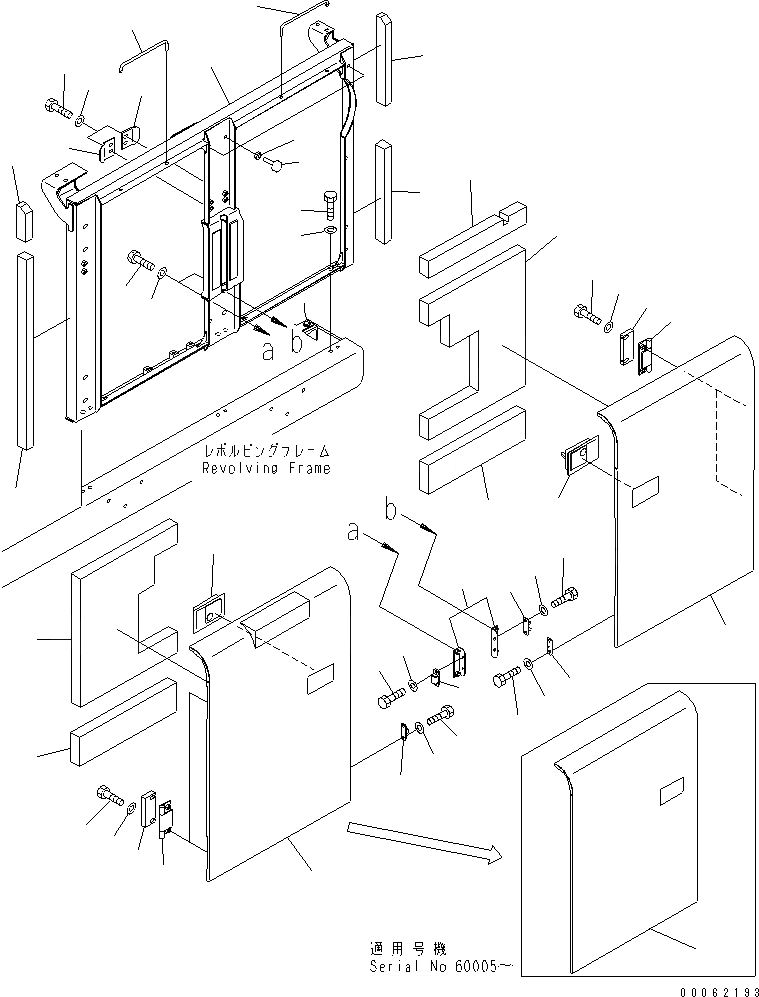

Запчасти Komatsu PC600-8 ЛЕВ. КРЫШКА(КАБИНА) (ДЛЯ ENGINВОЗД.E ПРЕФИЛЬТР) ЧАСТИ КОРПУСА

1

21M-54-24220

FRAME

2

21M-54-15590

SEAL

3

21M-54-15610

SEAL

4

21M-54-15620

SEAL

5

21M-54-15630

SEAL

6

20Y-54-28170

BRACKET

7

01010-81230

BOLT

8

01643-31232

WASHER

9

205-54-51971

DOVE TAIL

9

205-54-51970

DOVE TAIL

10

01010-80616

BOLT

11

01643-30623

WASHER

12

21M-54-11730

PLATE

13

01010-81230

BOLT

14

01643-31232

WASHER

15

20Y-54-11611

STOPPER

16

01580-11008

NUT

17

20Y-54-29232

BAR

18

21M-54-24211

COVER

18

21M-54-24210

COVER

19

198-54-41982

LOCK ASS'Y (WELDED)

20

20Y-54-28161

HINGE (WELDED)

21

21M-54-16512

SHEET

22

21M-54-21460

SHEET

23

21M-54-11760

PLATE

24

01010-81240

BOLT

25

01643-31232

WASHER

26

205-54-53550

DOVE TAIL

27

01010-80612

BOLT

28

01643-30623

WASHER

29

21M-54-21421

COVER

30

198-54-41982

LOCK ASS'Y (WELDED)

31

20Y-54-28161

HINGE (WELDED)

32

21M-54-16512

SHEET

33

21M-54-23480

SHEET

34

21M-54-21452

SHEET

35

21M-54-11760

PLATE

36

01010-81240

BOLT

37

01643-31232

WASHER

38

205-54-53550

DOVE TAIL

39

01010-80612

BOLT

40

01643-30623

WASHER

41

01010-81230

BOLT

42

01643-31232

WASHER
