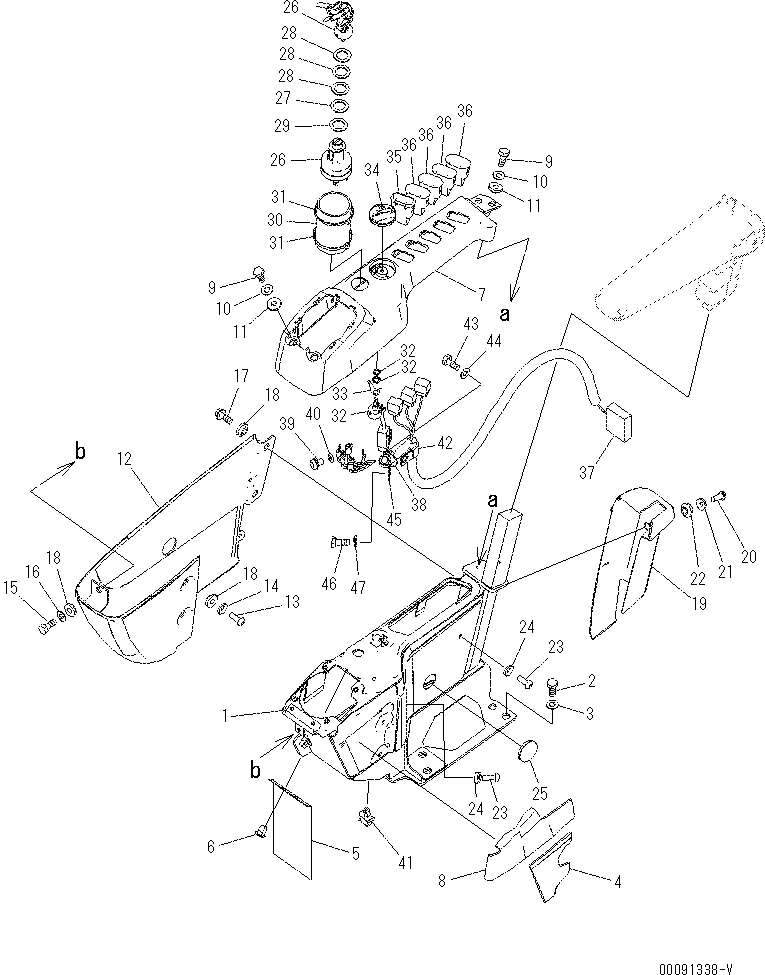

Запчасти Komatsu PC60-8 КАБИНА (ПОЛ) (КОНСОЛЬ, ПРАВ.) K [КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ]

1

20Y-43-41313

FRAME,L.H

2

01010-D1230

BOLT

3

01643-71232

WASHER

4

20Y-43-41631

SHEET

5

22U-43-23251

SHEET

6

22U-43-23290

CLIP

7

20Y-43-41324

COVER,R.H UPPER

8

20Y-43-41661

SHEET

9

01010-80616

BOLT

10

01643-30623

WASHER

11

20Y-43-41290

COLLAR

12

20Y-43-41332

COVER,R.H FRONT

13

01245-00616

SCREW

14

01643-70623

WASHER

15

01010-80616

BOLT

16

01643-30623

WASHER

17

01435-00612

BOLT

18

20Y-43-41290

COLLAR

19

20Y-43-41353

COVER,R.H REAR

20

01245-00616

SCREW

21

01643-70623

WASHER

22

20Y-43-41290

COLLAR

23

01245-00616

SCREW

24

01643-70623

WASHER

25

09415-02512

CAP

26

22B-06-11910

SWITCH, STARTING

27

20Y-43-41740

PLATE

28

20Y-43-41750

WASHER

29

20Y-43-41790

WASHER

30

20Y-43-41671

SHEET

31

08034-20519

BAND

32

22U-06-22380

POTENTIOMETER

33

22U-06-22460

SPRING

34

20Y-43-41781

KNOB

35

20Y-06-42450

SWITCH, LIGHT

36

20Y-06-42190

COVER

37

201-06-81321

WIRING HARNESS

38

08034-20414

BAND

39

01023-10508

SCREW

40

01601-20513

WASHER
