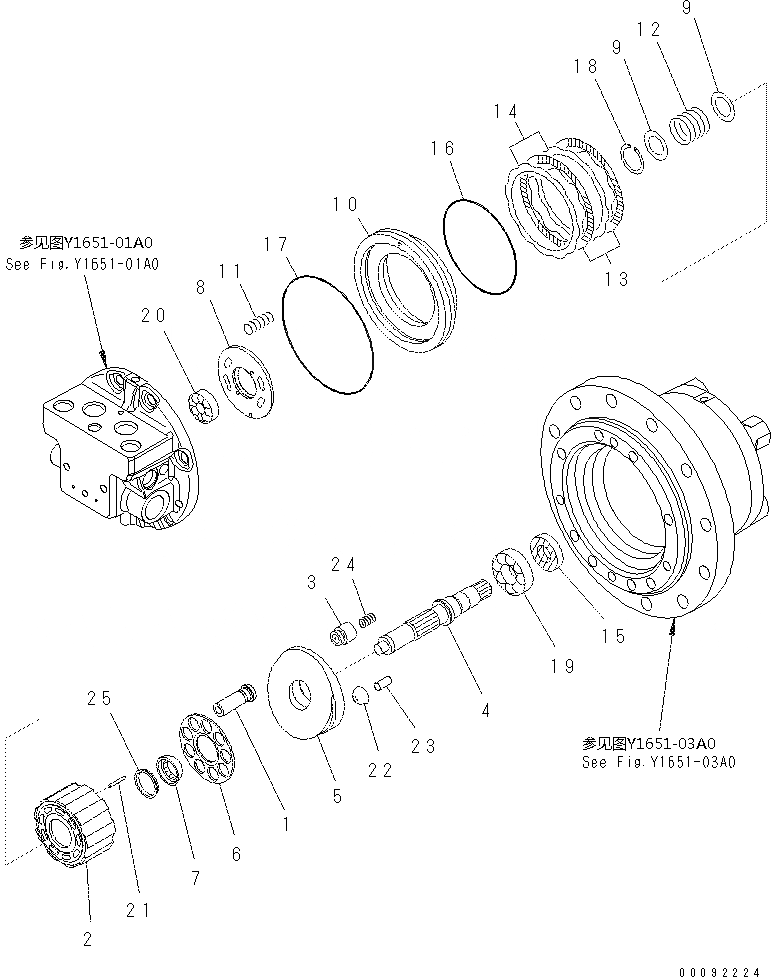

Запчасти Komatsu PC60-8 ХОД MTOR (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

201-60-81301

MOTOR ASS'Y

|$2

THIS ASSEMBLY CONSISTS OF ALLPARTS SHOWN IN FIGS.Y1651-01A0, 02A0,03A0.

|$3

TZ110D200001-B

MOTOR ASS'Y

|$4

THIS ASSEMBLY CONSISTSOF ALLPARTS SHOWN IN FIGS.Y1651-01A0 AND Y1651-02A0.

|$5

TZ277B2205-00

CYL & PISTON KIT

1

Ўо

PISTON KIT

2

Ўо

BLOCK, CYLINDER

3

TZ263B2070-01

PISTON

4

TZ110D2002-00

SHAFT

5

TZ110D200300-B

PLATE, SWASH

6

TZ277B2007-00

PLATE, RETAINER

7

TZ263B2008-01

BOWL, THRUST

8

TZ110D2009-01

PLATE, TIMING

9

TZ880A2010-00

WASHER

10

TZ266B2012-00

PISTON

11

TZ500D2013-00

SPRING

12

TZ277B2014-00

SPRING

13

TZ800A2015-00

PLATE

14

TZ800A2016-00

PLATE

15

TZTCZ-30-50-9

SEAL, OIL\((KIT)\)

16

TZ266B2035-00

O-RING\((KIT)\)

17

TZ266B2039-00

O-RING\((KIT)\)

18

TZTH-R-42

RING, SNAP

19

06000-06206

BEARING

20

TZ400G2049-00

BEARING

21

TZ263B2098-00

PIN

22

TZ263B2076-02

PIVOT

23

TZ263B2077-01

PIN

24

TZ263B2090-00

SPRING

25

TZ263B2011-03

WASHER

|$31

SERVICE KIT

K

TZ131D9000-00

SEAL KIT, TRAVEL MOTOR
