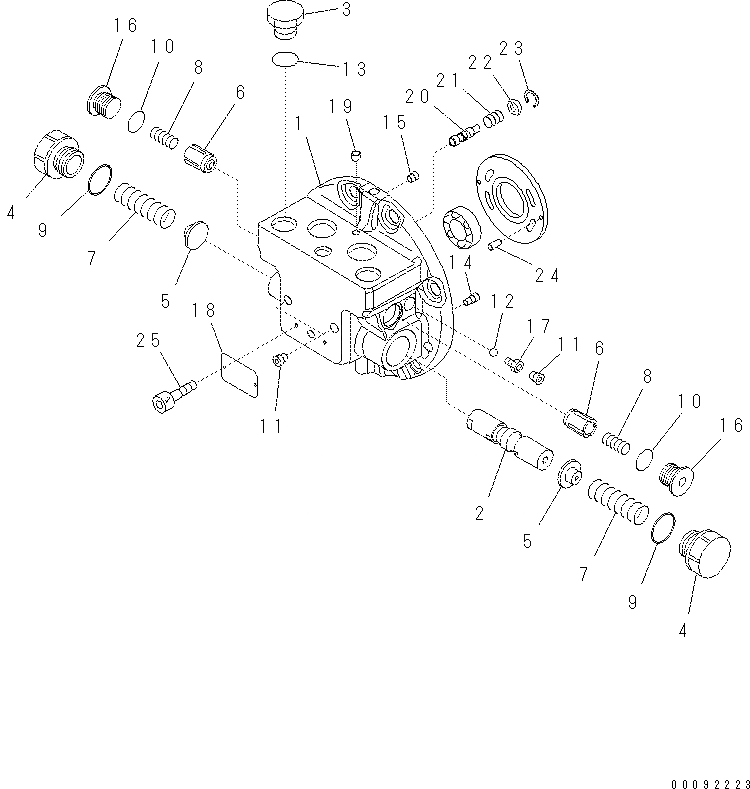

Запчасти Komatsu PC60-8 ХОД MTOR (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

201-60-81301

MOTOR ASS'Y

|$2

THIS ASSEMBLY CONSISTS OF ALLPARTS SHOWN IN FIGS.Y1651-01A0, 02A0,03A0.

|$3

TZ110D200001-B

MOTOR ASS'Y

|$4

THIS ASSEMBLY CONSISTSOF ALLPARTS SHOWN IN FIGS.Y1651-01A0 AND Y1651-02A0.

|$5

TZ111D400000-F

CONTROL VALVE ASS'Y

|$6

TZ111D410000-F

FLANGE ASS'Y, REAR

|$7

TZ111D410100-F

FLANGE KIT, REAR

1

Ўо

FLANGE, REAR

2

Ўо

SPOOL

3

07040-12012

PLUG

4

TZ110D4024-00

PLUG

5

TZ869A205200-B

RETAINER, SPRING

6

TZ500D4054-00

VALVE

7

TZ116D4056-00

SPRING

8

TZ500D4055-00

SPRING

9

TZJB2401-P26-9

O-RING\((KIT)\)

10

07000-12018

O-RING\((KIT)\)

11

TZGM1-8-S

PLUG

12

Ўо

BALL

13

07002-12034

O-RING\((KIT)\)

14

Ўо

FILTER

15

Ўо

ORIFICE

16

TZ610B2021-00

PLUG

17

Ўо

PLUG

18

Ўо

PLATE, NAME

19

TZGDL1-16-S

PLUG

20

TZ200B2073-00

VALVE

21

TZ300B2043-01

SPRING

22

TZ300B2039-00

STOPPER

23

TZ300B2042-00

RING

24

TZJB1354-4-10

PIN

25

01252-31230

BOLT

|$33

SERVICE KIT

K

TZ131D9000-00

SEAL KIT, TRAVEL MOTOR
