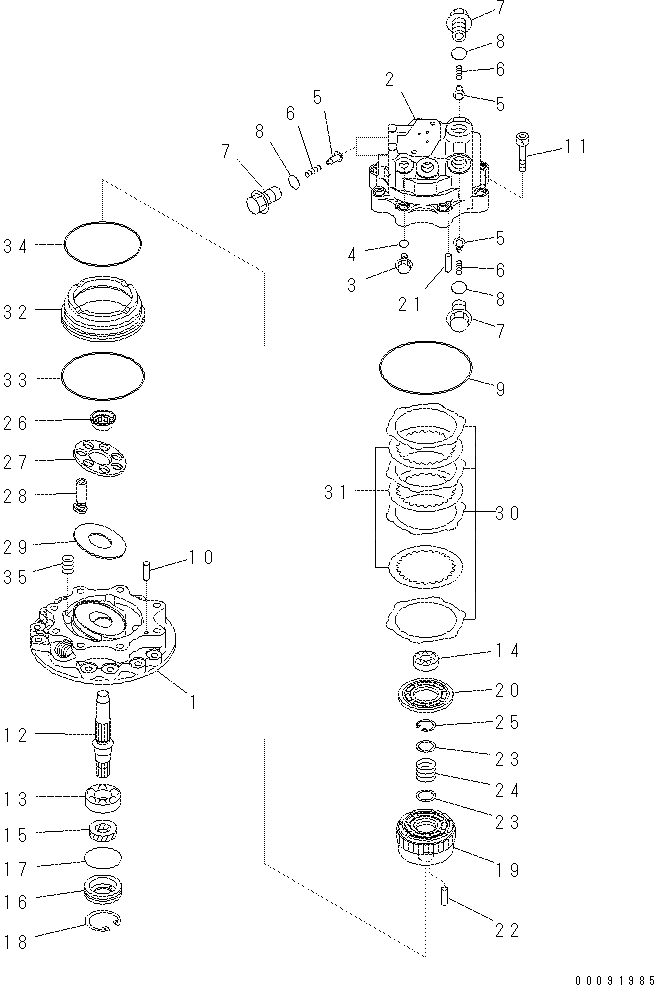

Запчасти Komatsu PC60-8 МОТОР ПОВОРОТА (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

708-7S-00151

MOTOR ASS'Y

|$2

THIS ASSEMBLY CONSISTS OF ALLPARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-03A0

|$3

708-7S-01281

MOTOR SUB ASS'Y

1

Ўп708-7S-13611

PLATE, SWASH

2

Ўп708-7S-21511

HOUSING

3

706-73-71450

PLUG

4

07002-61423

O-RING

5

Ўп709-25-11650

VALVE, CHECK

6

Ўп700-80-63230

SPRING

7

Ўп708-7S-21610

PLUG

8

Ўп07002-62434

O-RING

9

Ўп07000-B2145

O-RING

10

Ўп720-68-19610

PIN

11

01252-61245

BOLT

12

Ўп708-7S-22110

SHAFT

13

Ўп708-7S-22140

BEARING

14

Ўп708-7S-22150

BEARING

15

708-7T-12330

SEAL, OIL

16

708-7S-22310

COVER

17

07000-B2055

O-RING

18

04065-06020

RING, SNAP

19

Ўп708-7S-23111

BLOCK, CYLINDER

20

Ўп708-7S-23210

PLATE, VALVE

21

Ўп720-68-19610

PIN

22

Ўп708-2L-23360

PIN

23

Ўп708-7S-13530

SPACER

24

Ўп708-7S-23510

SPRING

25

Ўп04065-03212

RING, SNAP

26

Ўп708-1S-13350

GUIDE, RETAINER

27

Ўп708-1S-13340

RETAINER, SHOE

28

Ўп708-7S-23310

PISTON SUB ASS'Y

29

Ўп708-7S-23410

PLATE, THRUST

30

Ўп708-7S-25130

PLATE

31

Ўп708-7S-25120

DISC

32

Ўп708-7S-25140

PISTON, BRAKE

33

Ўп07000-B2130

O-RING

34

Ўп07000-B2120

O-RING

35

Ўп708-7S-25150

SPRING
