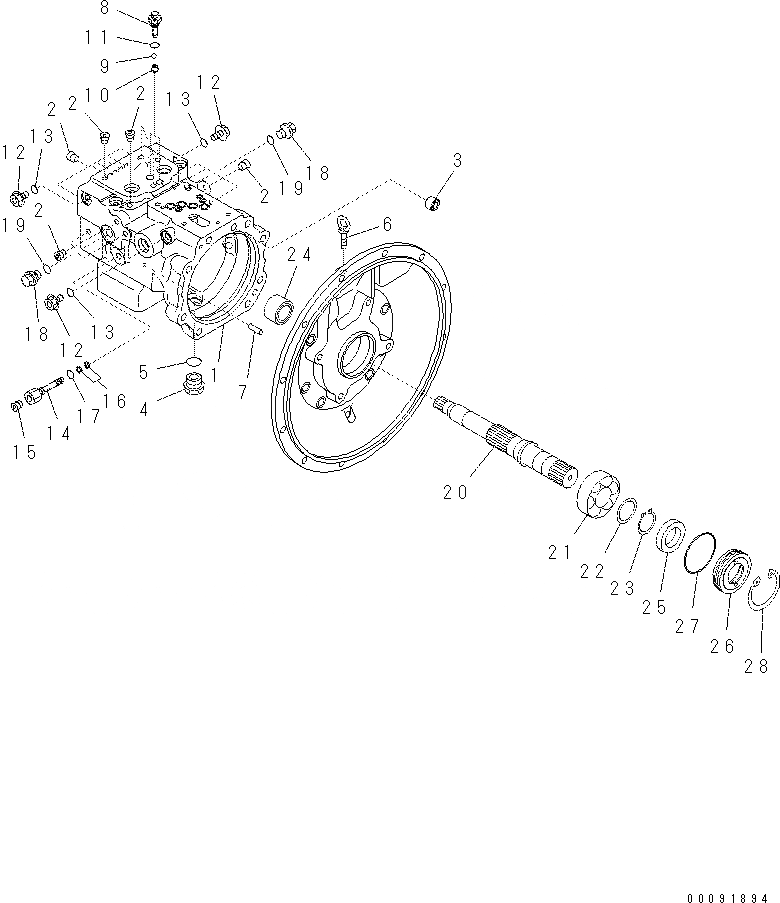

Запчасти Komatsu PC60-8 ОСНОВН. НАСОС (/) (С ОТВАЛ) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

708-3T-00151

PUMP ASS'Y

|$2

THIS ASSEMBLY CONSISTS OF ALLPARTS SHOWN IN FIGS.Y1600-11A0 T0 Y1600-14A0.

|$3

708-3T-01151

PUMP SUB ASS'Y

|$4

708-3T-04240

CASE ASS'Y

1

Ўо

CASE, PUMP

2

Ўо

PLUG

3

Ўо

ORIFICE

4

07044-12412

PLUG

5

07002-62434

O-RING

6

04530-11018

BOLT, EYE

7

Ўп720-68-19610

PIN

8

Ўп708-3T-14151

PLUG

9

Ўп708-3T-14170

BALL

10

Ўп708-3T-14160

SEAT

11

07002-61023

O-RING

12

708-8E-16150

PLUG

13

07002-61023

O-RING

|$18

708-3T-04190

PLUG SUB ASS'Y

14

Ўо

PLUG

15

Ўо

PLUG

16

Ўо

SEAL

17

07002-11223

O-RING

18

708-1L-25210

PLUG

19

07002-11423

O-RING

20

Ўп708-3T-12240

SHAFT

21

Ўп708-1W-22140

BEARING

22

Ўп708-23-05011

WASHER KIT

|$28

Ўо

WASHER, 2.60MM

|$29

Ўо

WASHER, 2.70MM

|$30

Ўо

WASHER, 2.80MM

|$31

Ўо

WASHER, 2.50MM

23

Ўп708-23-12840

RING, SNAP

24

Ўп708-1W-22320

BEARING

25

708-8D-12221

SEAL, OIL

26

708-3T-12210

CASE

27

07000-F2065

O-RING

28

04065-07225

RING, SNAP
