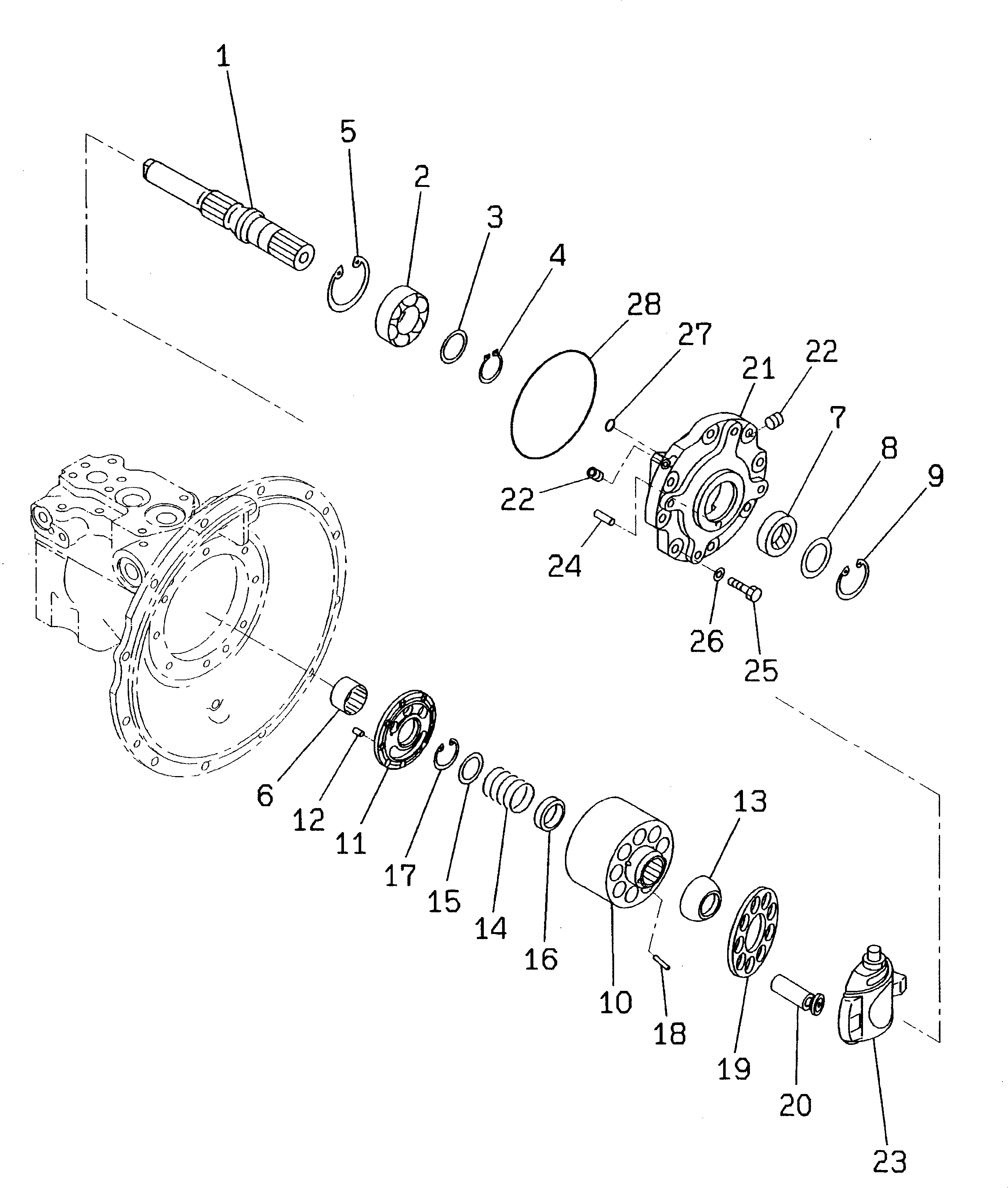

Запчасти Komatsu PC60-7S ОСНОВН. НАСОС (/)(№-7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-1W-00042

PUMP ASS'Y

|1

708-1W-01042

PUMP SUB ASS'Y

1

708-1W-22111

SHAFT

2

708-1W-22140

BEARING

3

708-23-05011

WASHER KIT

|3

WASHER¤ 2.50MM

|3

WASHER¤ 2.60MM

|3

WASHER¤ 2.70MM

|3

WASHER¤ 2.80MM

4

708-23-12840

RING,SNAP

5

04065-07225

RING,SNAP

6

708-1D-12130

BEARING

7

708-8D-12220

SEAL,OIL

8

708-1W-22160

SPACER

9

04065-05520

RING,SNAP

|10

708-1W-04081

CYLINDER BLOCK ASS'Y

10

708-1W-23110

BLOCK,CYLINDER

11

708-1W-23211

PLATE,VALVE

12

720-68-19610

PIN

13

708-1W-23351

GUIDE,RETAINER

14

708-1W-23150

SPRING

15

708-1W-23130

SEAT

16

708-1W-23140

SEAT

17

04065-04218

RING,SNAP

18

708-7L-13360

PIN

19

708-1W-23340

RETAINER,SHOE

20

708-1W-23311

PISTON SUB ASS'Y

|21

708-1W-04061

CRADLE ASS'Y

|21

708-1W-04050

CRADLE SUB ASS'Y

21

CRADLE

22

PLUG

23

708-1W-23412

CAM,ROCKER

24

04020-01024

PIN,DOWEL

25

01010-51035

BOLT

26

01643-31032

WASHER

27

07000-B2011

O-RING

28

07000-02145

O-RING
