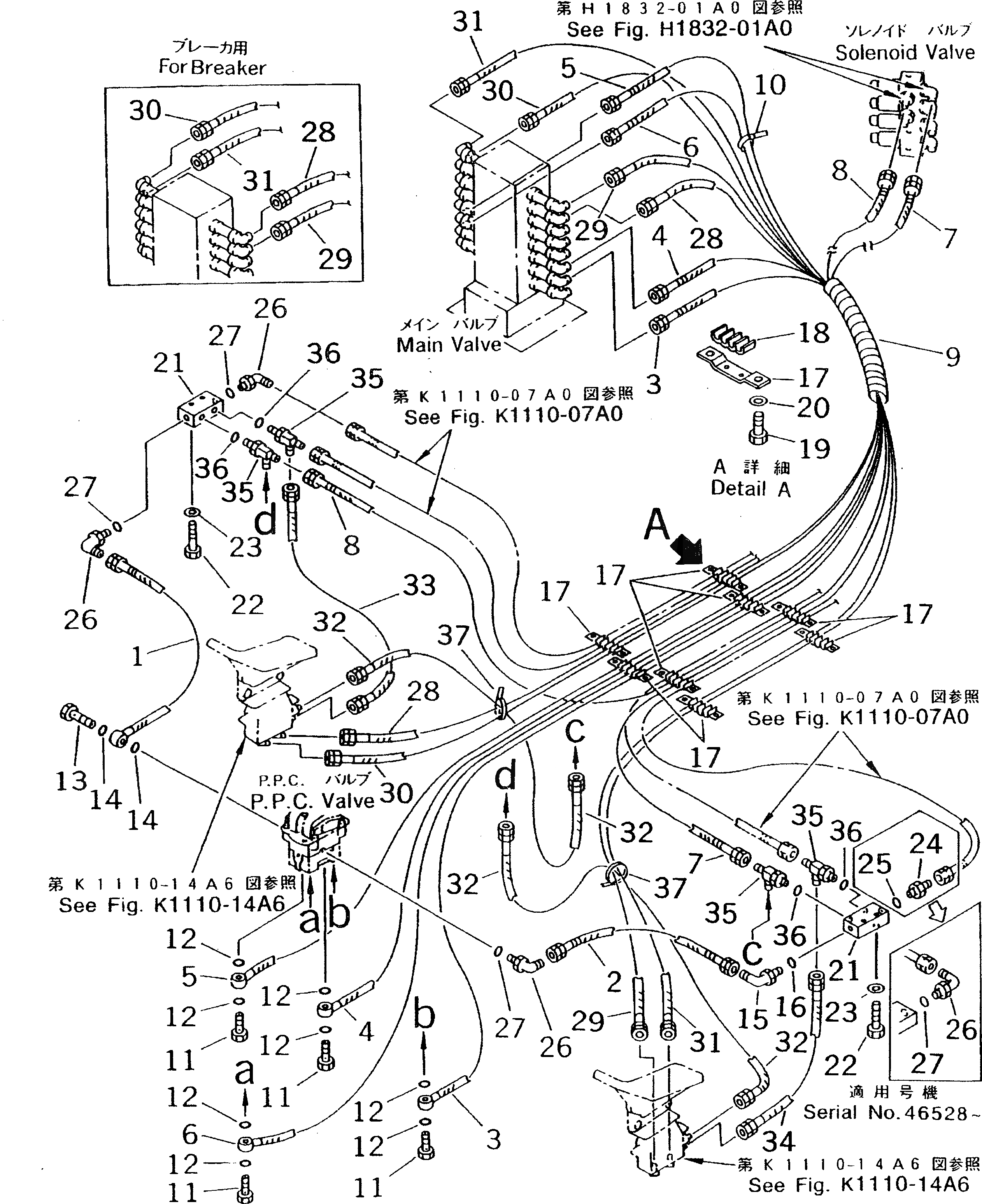

Запчасти Komatsu PC60-7S ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ЛИНИЯ ХОДА) (ДЛЯ -АКТУАТОР НАВЕСН. ОБОРУД)(№-7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

201-62-71210

HOSE¤ 330MM,RED-GREEN

2

201-62-71270

HOSE¤ 310MM,BLUE-WHITE

3

201-62-71280

HOSE¤ 3050MM,GREEN-YELLOW

4

201-62-71280

HOSE¤ 3050MM,ORANGE-YELLOW

5

201-62-71470

HOSE¤ 2550MM,BLACK-YELLOW

6

201-62-71470

HOSE¤ 2550MM,BROWN-YELLOW

7

201-62-72230

HOSE¤ 3290MM,BLUE-WHITE

8

201-62-72240

HOSE¤ 3370MM,RED-GREEN

9

08210-01806

SPIRAL TUBE

10

08034-00536

BAND

11

20Y-62-16170

BOLT

12

07000-02015

O-RING

13

702-16-53240

PLUG

14

07000-12018

O-RING

15

07235-10210

ELBOW

16

07002-11423

O-RING

17

203-62-63290

CLAMP

18

20Y-62-22170

CLAMP

19

01010-51016

BOLT

20

01643-31032

WASHER

21

20Y-62-15831

BLOCK

22

01010-81045

BOLT

23

01643-31032

WASHER

24

07230-10210

UNION

25

07002-01423

O-RING

26

07235-10210

ELBOW

|26

07235-10210

ELBOW

27

07002-11423

O-RING

|27

07002-11423

O-RING

28

201-62-75130

HOSE¤ 2900MM,BLACK-GREEN

29

201-946-7810

HOSE¤ 2900MM,RED-YELLOW

30

201-62-75140

HOSE¤ 2900MM,BLACK-RED

31

201-946-7820

HOSE¤ 2900MM,BLUE-YELLOW

32

201-62-75110

HOSE¤ 620MM,BLUE-WHITE

33

201-62-75120

HOSE¤ 240MM,RED-GREEN

34

201-946-7690

HOSE¤ 390MM,BLUE-WHITE

35

208-62-17550

TEE

36

07002-11423

O-RING

37

08034-00414

BAND
