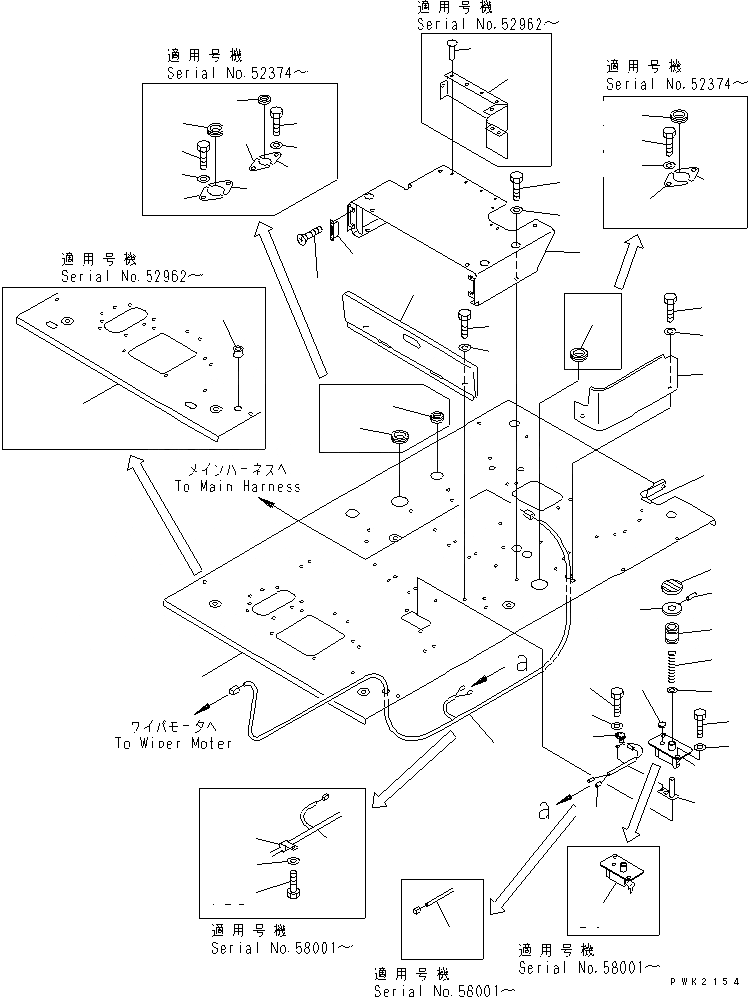

Запчасти Komatsu PC60-7S-B ПОЛ (ОСНОВН. КОНСТРУКЦИЯ) (СПЕЦИФ-Я С ОТВАЛОМ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

201-54-75622

FLOOR FRAME ASS'Y

|1

201-54-75621

FLOOR FRAME ASS'Y

|1

201-54-75620

FLOOR FRAME ASS'Y

|1

201-54-73112

FLOOR FRAME ASS'Y

2

201-06-71390

SEAL

3

201-54-73213

BRACKET

|3

201-54-73212

BRACKET

|3

201-54-73211

BRACKET

3A

201-54-73550

SEAT

3B

20Y-57-11440

RETAINER

4

01010-81025

BOLT

5

01643-31032

WASHER

6

201-54-73142

COVER

7

01010-81020

BOLT

8

01643-31032

WASHER

9

201-54-75141

COVER

|9

201-54-75140

COVER

|9

201-54-73240

COVER

10

01010-81020

BOLT

11

01643-31032

WASHER

12

201-06-71811

WIRING

|12

201-06-71810

WIRING

12A

04434-51010

CLIP

12B

01010-81016

BOLT

12C

01643-31032

WASHER

12D

07095-20314

CUSHION

13

201-54-75650

GROMMET

|13

08037-05016

GROMMET

14

201-54-75660

GROMMET

|14

08037-03614

GROMMET

15

09452-06506

CATCHER

16

01224-40408

SCREW

|17

20T-43-82311

PEDAL ASS'Y,(FOR BLADE)

|17

20T-43-82310

PEDAL ASS'Y,(FOR BLADE)

|17

20T-43-72310

PEDAL ASS'Y,(FOR BLADE)

17

20T-43-72320

BOOT

18

20T-43-72330

CAP

19

20T-43-72340

PEDAL

20

20T-43-82351

BODY

|20

20T-43-82350

BODY

|20

20T-43-72350

BODY

21

20T-43-82360

SHAFT

|21

20T-43-72360

SHAFT

22

20T-43-72370

SPRING

23

20T-43-72380

WASHER

24

20T-06-71770

SWITCH,TRAVEL SPEED CHANGE PEDAL

|24

20T-06-71520

SWITCH,TRAVEL SPEED CHANGE PEDAL

25

6134-71-5750

SCREW,CLIP

26

01641-20508

WASHER

27

20T-06-71781

HARNESS

|27

20T-06-71780

WIRING HARNESS

|27

20T-06-71531

HARNESS

28

203-54-32260

STOPPER

29

04025-00620

PIN,SPRING

30

01010-81020

BOLT

31

01643-31032

WASHER

32

201-54-75630

PLATE

33

201-54-75640

PLATE

34

01010-81020

BOLT

35

01643-31032

WASHER
