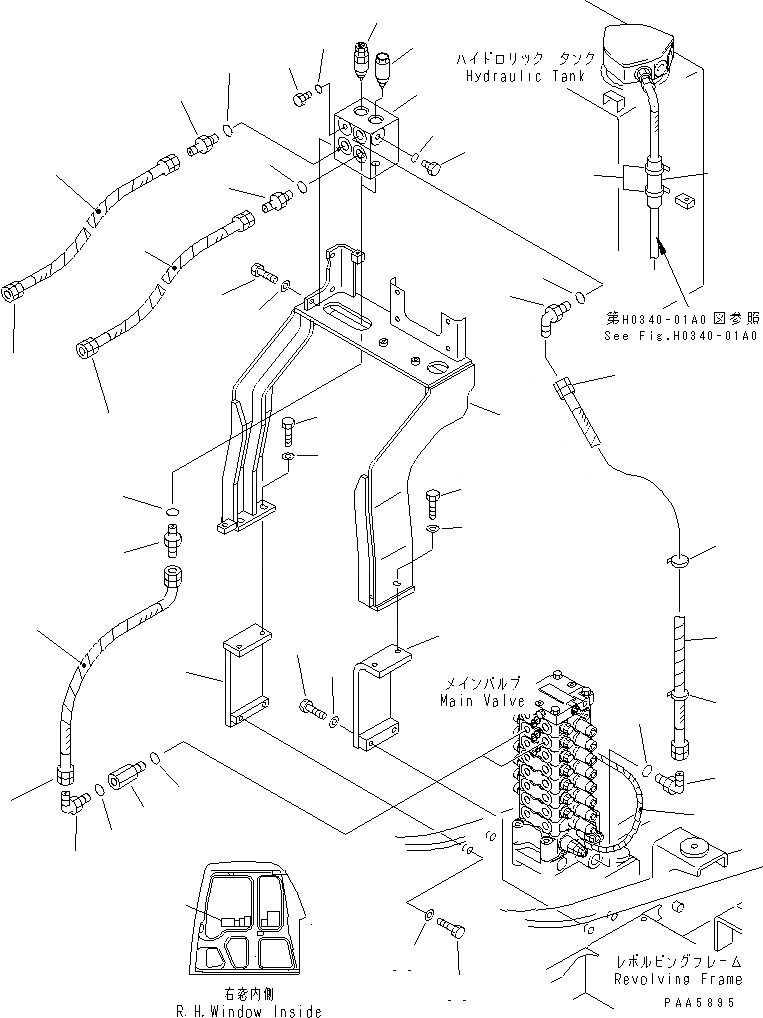

Запчасти Komatsu PC60-7E НАВЕСНОЕ ОБОРУД-Е (ДЛЯ ТЕЛЕСКОПИЧЕСК. РУКОЯТЬ)(№-7) ГИДРАВЛИКА

1

201-973-7240

HOSE

2

201-973-7540

JOINT

3

07235-10422

ELBOW

4

07002-12034

O-RING

5

20X-62-21330

NIPPLE

6

07002-12034

O-RING

7

203-62-32440

COVER

8

201-62-76110

BLOCK

9

01010-81025

BOLT

10

01643-31032

WASHER

11

07002-11423

O-RING

12

07040-11409

PLUG

13

201-973-7281

HOSE

14

201-973-7291

HOSE

15

203-62-58650

COVER

16

07230-20422

UNION

17

07002-12034

O-RING

18

07230-20522

UNION

19

07002-12434

O-RING

20

07235-10628

ELBOW

21

07002-12434

O-RING

22

709-20-62300

VALVE ASS'Y,SUCTION AND SAFETY

23

709-70-74700

VALVE ASS'Y,SUCTION AND SAFETY

24

201-70-76480

HOSE

25

203-62-32440

COVER

26

07235-10628

ELBOW

27

07002-12434

O-RING

28

208-62-18350

COVER

29

08034-00823

BAND

30

201-973-7131

BRACKET

31

201-973-7110

BRACKET

32

201-973-7120

BRACKET

33

01010-81470

BOLT

34

01643-31445

WASHER

35

01010-81435

BOLT

36

01643-31445

WASHER

37

01010-81235

BOLT

38

01643-31232

WASHER

39

203-62-41150

COVER

40

08034-00823

BAND

41

201-00-71290

PLATE¤ CAUTION,TELESCOPIC ARM
