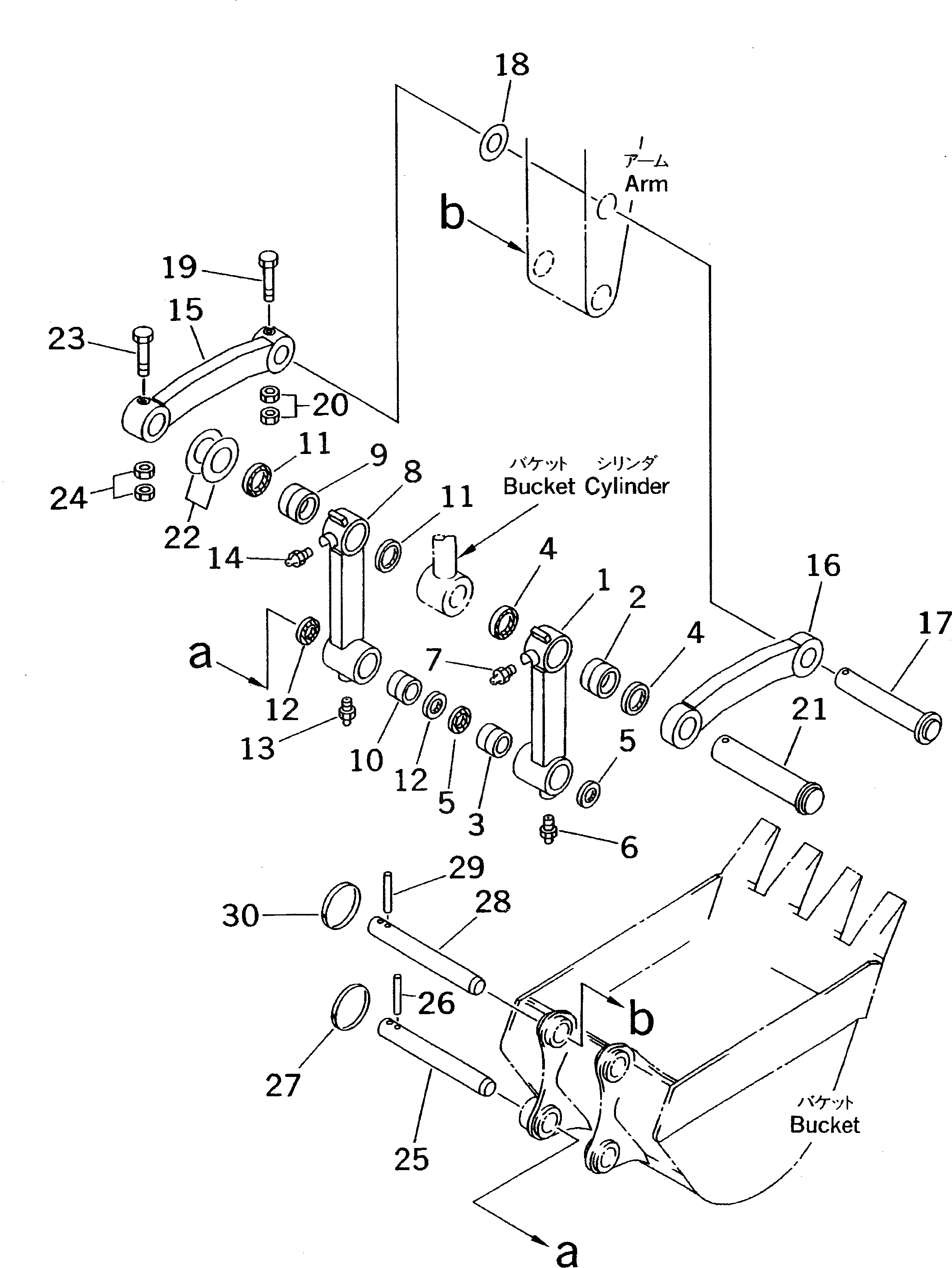

Запчасти Komatsu PC60-7 СОЕДИНЕНИЕ КОВША (УСИЛ. ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

201-70-00830

LINK ASS'Y,L.H.

1

LINK,L.H.

2

20X-70-24150

BUSHING

3

201-70-64270

BUSHING

4

07145-00060

SEAL,DUST

5

07145-00050

SEAL,DUST

6

07020-00000

FITTING,GREASE

7

07020-00900

FITTING,GREASE

|$13

201-70-00840

LINK ASS'Y,R.H.

8

LINK,R.H.

9

20X-70-24150

BUSHING

10

201-70-64270

BUSHING

11

07145-00060

SEAL,DUST

12

07145-00050

SEAL,DUST

13

07020-00000

FITTING,GREASE

14

07020-00900

FITTING,GREASE

15

201-70-64170

LINK

16

201-70-64180

LINK

17

20X-70-24260

SHAFT

17

201-70-72250

PIN

18

201-70-22150

SPACER, 1.0MM

19

01011-81620

BOLT

20

01580-11613

NUT

21

201-70-64220

SHAFT

22

21Y-70-14770

SPACER, 1.0MM

22

203-70-24150

SPACER, 1.0MM

22

21Y-70-14780

SPACER, 2.0MM

22

203-70-24160

SPACER, 2.0MM

23

01011-81620

BOLT

24

01580-11613

NUT

25

201-70-74230

PIN

26

201-70-74260

PIN

27

201-70-74274

RING

27

201-70-74273

RING

27

201-70-74272

RING

27

201-70-74271

RING

28

201-70-74230

PIN

29

201-70-74240

PIN

30

201-70-74254

RING

30

201-70-74253

RING

30

201-70-74252

RING

30

201-70-74251

RING
