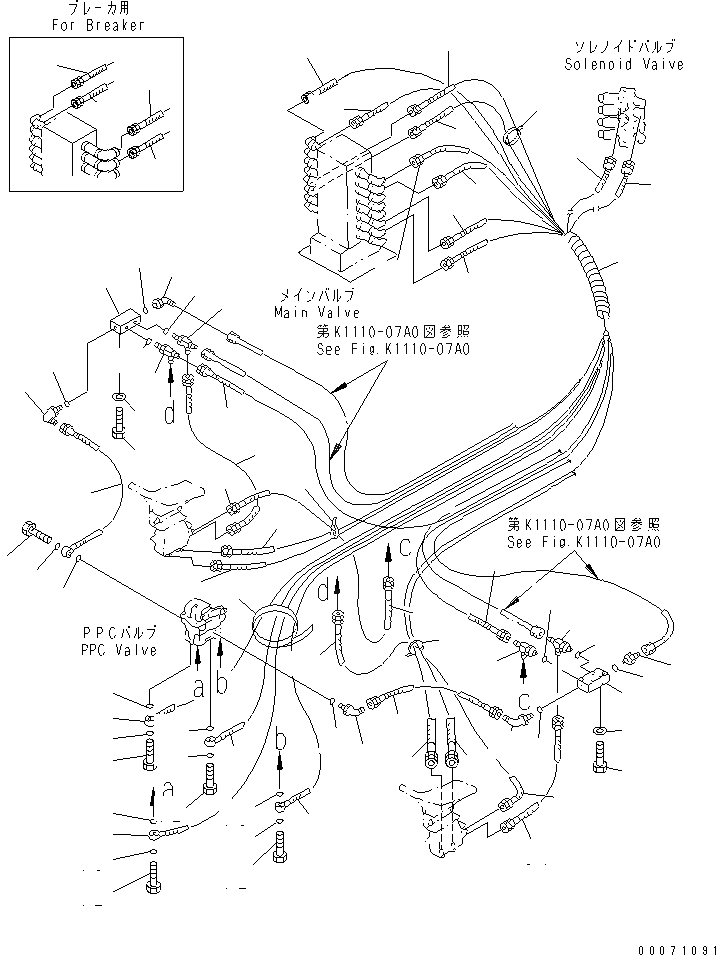

Запчасти Komatsu PC60-7 ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ЛИНИЯ ХОДА) (ДЛЯ -АКТУАТОР НАВЕСН. ОБОРУД)(№7-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
1
22U-62-13490
HOSE, 340MM
1
201-62-78150
HOSE, 350MM
1
21U-62-34760
BAND, RED
1
21U-62-34730
BAND, GREEN
2
21W-62-32380
HOSE, 350MM
2
21U-62-34750
BAND, BLUE
2
21U-62-34770
BAND, WHITE
3
201-62-78320
HOSE, 2600MM
3
21U-62-34730
BAND, GREEN
3
21U-62-34710
BAND, YELLOW
4
201-62-78320
HOSE, 2600MM
4
21U-62-34740
BAND, ORANGE
4
21U-62-34710
BAND, YELLOW
5
201-62-78370
HOSE, 3100MM
5
21U-62-34720
BAND, BLACK
5
21U-62-34710
BAND, YELLOW
6
201-62-78370
HOSE, 3100MM
6
21U-62-34780
BAND, BROWN
6
21U-62-34710
BAND, YELLOW
7
08034-00536
BAND
8
201-62-72230
HOSE, 3290MM
8
21U-62-34750
BAND, BLUE
8
21U-62-34770
BAND, WHITE
9
201-62-72240
HOSE, 3370MM
9
21U-62-34760
BAND, RED
9
21U-62-34730
BAND, GREEN
10
08210-01806
SPIRAL TUBE
11
08034-00834
BAND
12
20Y-62-16170
BOLT
13
07000-02015
O-RING
14
702-16-53240
PLUG
15
07000-12018
O-RING
16
07235-10210
ELBOW
17
07002-11423
O-RING
18
208-62-17550
TEE
18
201-62-74310
TEE
19
07002-11423
O-RING
20
20Y-62-15831
BLOCK
21
01010-81045
BOLT
22
01643-31032
WASHER
23
07230-20210
UNION
24
07002-11423
O-RING
25
208-62-17550
TEE
25
201-62-74310
TEE
26
07002-11423
O-RING
27
201-62-74940
HOSE, 2700MM
27
21U-62-34720
BAND, BLACK
27
21U-62-34730
BAND, GREEN
28
201-62-74940
HOSE, 2700MM
28
21U-62-34720
BAND, BLACK
28
21U-62-34760
BAND, RED
29
201-62-78210
HOSE, 3000MM
29
21U-62-34760
BAND, RED
29
21U-62-34710
BAND, YELLOW
30
201-62-78210
HOSE, 3000MM
30
21U-62-34750
BAND, BLUE
30
21U-62-34710
BAND, YELLOW
31
201-62-78180
HOSE, 650MM
31
21U-62-34750
BAND, BLUE
31
21U-62-34770
BAND, WHITE
32
201-62-78180
HOSE, 650MM
32
21U-62-34760
BAND, RED
32
21U-62-34730
BAND, GREEN
33
21W-62-32860
HOSE, 250MM
33
21U-62-34760
BAND, RED
33
21U-62-34730
BAND, GREEN
34
21W-62-32860
HOSE, 250MM
34
21U-62-34750
BAND, BLUE
34
21U-62-34770
BAND, WHITE
35
08034-00414
BAND
Выбрано товаров: 70
