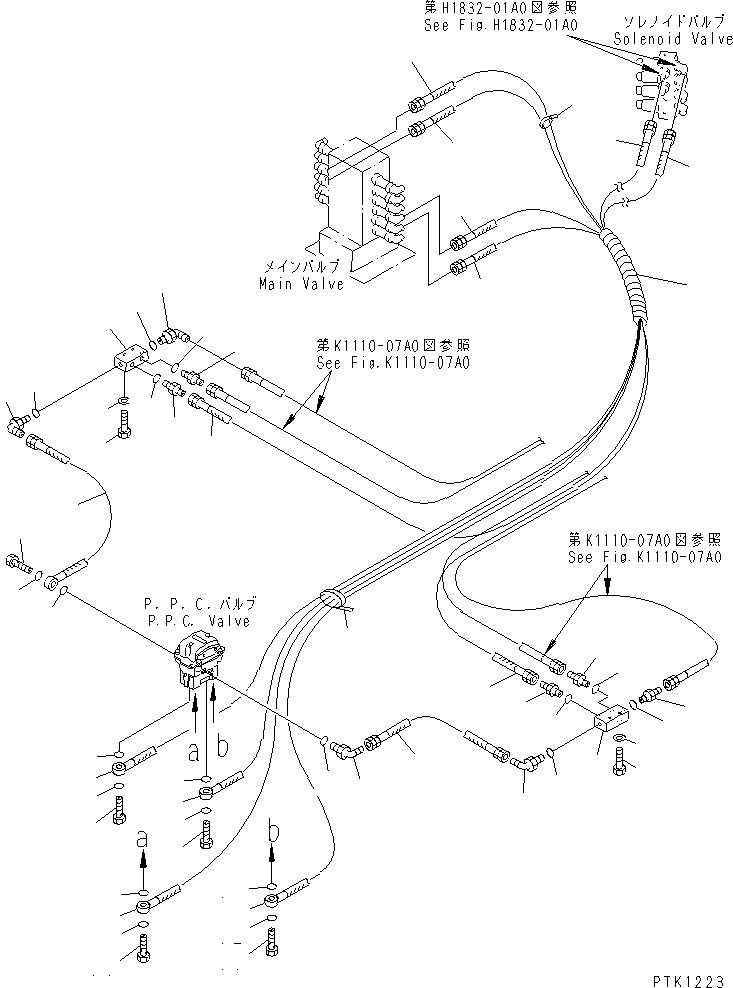

Запчасти Komatsu PC60-7 ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ЛИНИЯ ХОДА)(№7-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
1
22U-62-13490
HOSE, 340MM
1
201-62-78150
HOSE, 350MM
1
201-62-74460
HOSE, 350MM
1
21U-62-34760
BAND, RED
1
21U-62-34730
BAND, GREEN
2
21W-62-32380
HOSE, 350MM
2
201-62-74930
HOSE, 350MM
2
21U-62-34750
BAND, BLUE
2
21U-62-34770
BAND, WHITE
3
201-62-78320
HOSE, 2600MM
3
201-62-74470
HOSE, 2600MM
3
21U-62-34740
BAND, ORANGE
3
21U-62-34710
BAND, YELLOW
4
201-62-78320
HOSE, 2600MM
4
201-62-74470
HOSE, 2600MM
4
21U-62-34730
BAND, GREEN
4
21U-62-34710
BAND, YELLOW
5
201-62-78370
HOSE, 3100MM
5
201-62-74480
HOSE, 3100MM
5
21U-62-34720
BAND, BLACK
5
21U-62-34710
BAND, YELLOW
6
201-62-78370
HOSE, 3100MM
6
201-62-74480
HOSE, 3100MM
6
21U-62-34780
BAND, BROWN
6
21U-62-34710
BAND, YELLOW
6A
08034-00536
BAND
7
201-62-72230
HOSE, 3290MM
7
21U-62-34750
BAND, BLUE
7
21U-62-34770
BAND, WHITE
8
201-62-72240
HOSE, 3370MM
8
21U-62-34760
BAND, RED
8
21U-62-34730
BAND, GREEN
9
08210-01806
SPIRAL TUBE
10
08034-00834
BAND
11
20Y-62-16170
BOLT
12
07000-12015
O-RING
13
702-16-53240
PLUG
14
07000-12018
O-RING
15
07235-10210
ELBOW
15
21U-62-24110
ELBOW
16
07002-11423
O-RING
17
07230-20210
UNION
17
21A-62-12360
NIPPLE
18
07000-11423
O-RING
19
20Y-62-15831
BLOCK
20
01010-81045
BOLT
21
01643-31032
WASHER
22
07230-20210
UNION
23
07002-11423
O-RING
Выбрано товаров: 49
