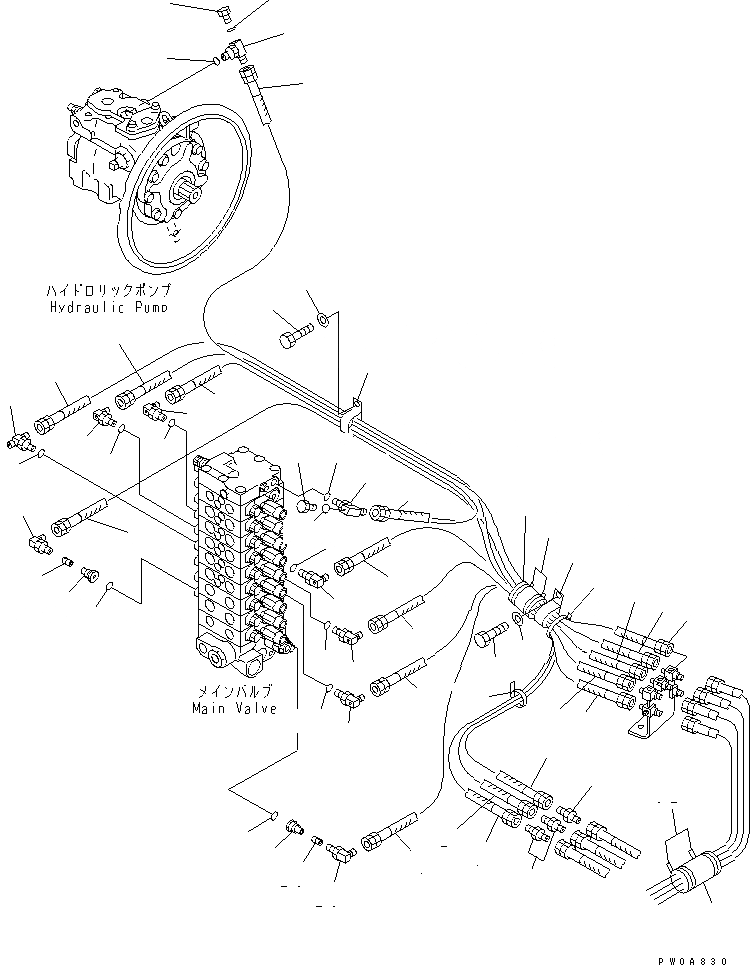

Запчасти Komatsu PC60-7 P.P.C. ОСНОВН. ЛИНИЯ(№8-) ГИДРАВЛИКА

1

20S-62-83120

HOSE, 1100MM,BLACK

2

20S-62-83120

HOSE, 1100MM,BLUE

3

20S-62-83120

HOSE, 1100MM,GREEN

4

20S-62-83120

HOSE, 1100MM,WHITE

5

21W-62-32210

HOSE, 1500MM,BROWN

6

201-62-78380

HOSE, 1400MM,RED

7

201-62-78380

HOSE, 1400MM,ORANGE

8

201-62-78380

HOSE, 1400MM,YELLOW

|$12

201-62-75580

HOSE ASS'Y

9

201-62-74572

HOSE, 1475MM

|$14

201-62-73900

TEE ASS'Y

10

201-62-73910

TEE

11

07040-11007

PLUG

12

07002-11023

O-RING

|$18

201-62-73920

TEE ASS'Y

13

201-62-73930

TEE

14

07040-11007

PLUG

15

07002-11023

O-RING

16

07002-11423

O-RING

17

207-62-33690

CLIP

18

01010-81025

BOLT

19

01643-31032

WASHER

20

21T-06-11950

CLIP

21

01010-81025

BOLT

22

01643-31032

WASHER

23

08034-00536

BAND

|$33

20T-60-82300

VALVE ASS'Y

24

21Y-62-11590

PLUG

25

20T-60-82310

ELBOW

26

20T-60-82320

POPPET

27

07235-10210

ELBOW

28

208-26-11611

TEE

29

07002-11423

O-RING

30

203-916-5630

CONNECTOR

31

20U-62-26170

SEAT

32

08034-00823

BAND
