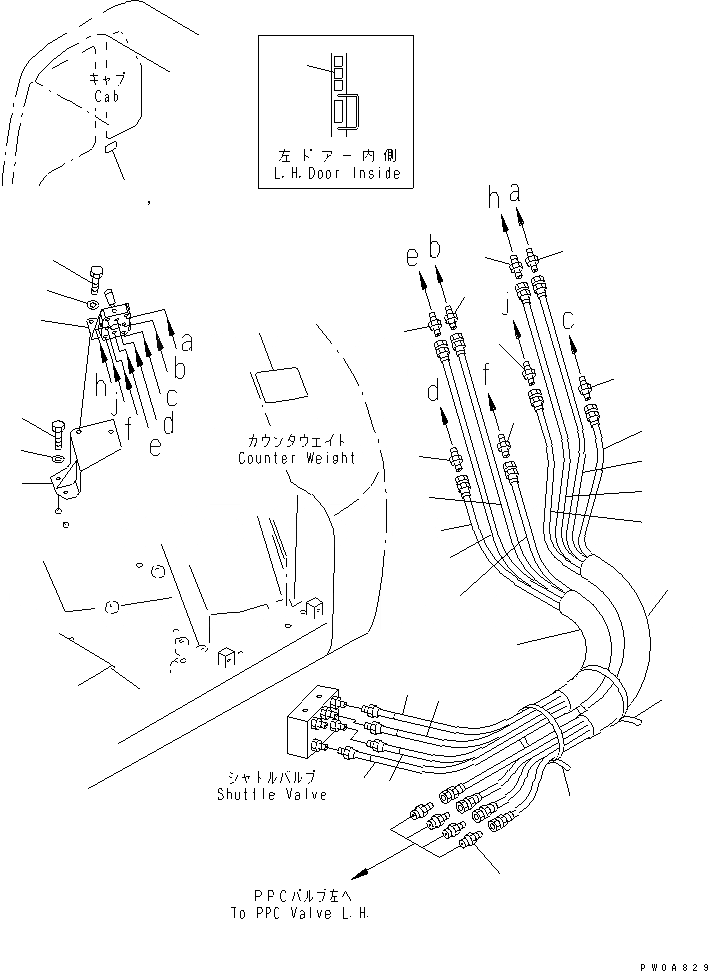

Запчасти Komatsu PC60-7 MULTIPLE PATTERN WAY (ШЛАНГИ И ПЛАСТИНА)(№-) ГИДРАВЛИКА

1

20T-62-74900

VALVE ASS'Y,MULTIPLE PATTERN

2

07238-10210

CONNECTOR

3

01010-80825

BOLT

4

01643-30823

WASHER

5

201-62-78460

BRACKET

6

01010-81025

BOLT

7

01643-31032

WASHER

8

20X-62-47510

HOSE¤ 525MM,BROWN

|8

20U-62-22190

O-RING

9

20X-62-47510

HOSE¤ 525MM,GREEN

|9

20U-62-22190

O-RING

10

20X-62-47510

HOSE¤ 525MM,WHITE

|10

20U-62-22190

O-RING

11

20X-62-47490

HOSE¤ 475MM,ORANGE

|11

20U-62-22190

O-RING

12

203-62-62611

HOSE¤ 330MM,ORANGE-YELLOW

13

203-62-62611

HOSE¤ 330MM,WHITE-YELLOW

14

203-62-62611

HOSE¤ 330MM,GREEN-YELLOW

15

203-62-62611

HOSE¤ 330MM,BROWN-YELLOW

16

08017-32801

CONDUIT

17

08017-32802

CONDUIT

18

08034-00823

BAND

19

21Y-62-13340

JOINT

20

08034-00823

BAND

21

20Y-00-12880

PLATE¤ OPERATING,MULTIPLE PATTERN VALVE

22

09822-A1110

PLATE¤ OPERATING,JIS AND OLD KOMATSU PATTERN

23

09822-00010

PLATE¤ SAFETY,MULTIPLE PATTERN

24

09822-00020

CASE¤ PLATE
