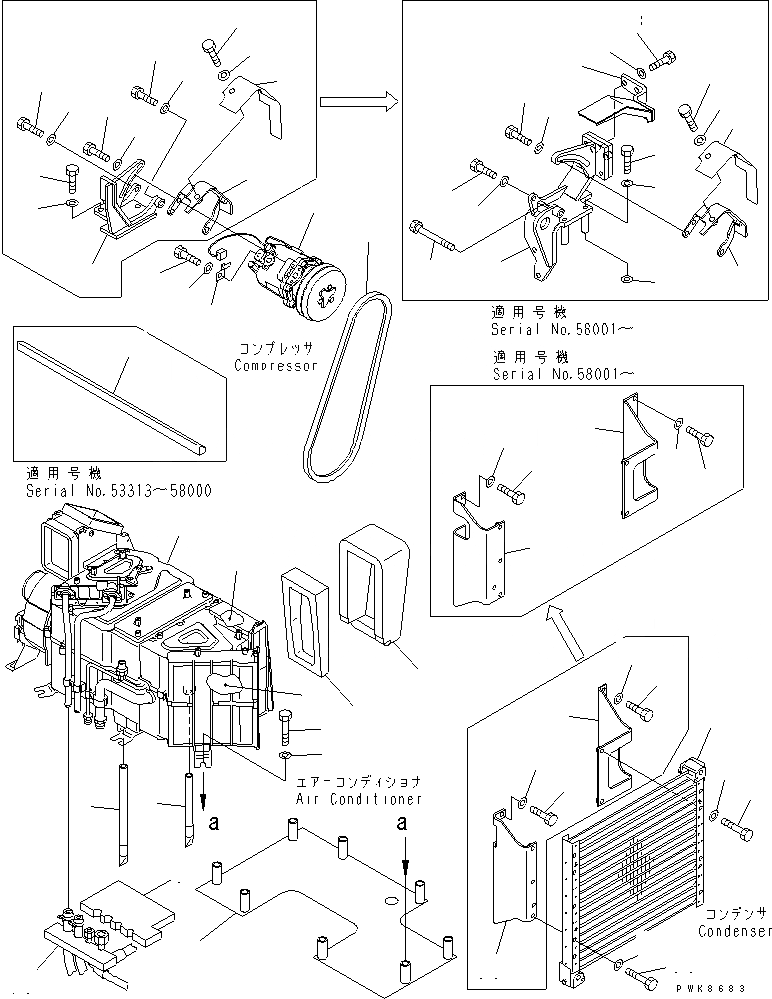

Запчасти Komatsu PC60-7 КОНДИЦ. ВОЗДУХА (БЛОК)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

201-979-7673

UNIT ASS'Y,(SEE FIG.Y1979-01A0)

1

201-979-7672

UNIT ASS'Y,(SEE FIG.Y1979-01A0)

1

201-979-7670

UNIT ASS'Y,(SEE FIG.Y1979-01A0)

2

203-979-6840

FILTER

3

203-979-6850

FILTER

4

201-979-8230

PLATE

5

01010-81075

BOLT

6

01643-31032

WASHER

7

201-979-8210

HOSE

8

201-979-8220

HOSE

9

201-979-8190

SHEET

10

201-979-7640

SHEET

11

201-979-8270

SEAL

12

20Y-979-2250

SEAL

13

207-54-62471

SHEET

14

203-979-6580

COMPRESSOR ASS'Y,(SEE FIG.K0700-55A1)

15

08053-01510

CLIP

16

01010-81020

BOLT

17

01643-31032

WASHER

18

01010-81030

BOLT

18

01010-81035

BOLT

19

01643-31032

WASHER

20

21W-978-3910

BOLT

20

01010-81045

BOLT

21

01010-81030

BOLT

22

01643-31032

WASHER

22

01643-31032

WASHER

23

201-979-8290

BRACKET ASS'Y

23

201-979-7722

BRACKET

23A

201-979-8260

BRACKET

23B

01010-81025

BOLT

23C

01643-31032

WASHER

24

01010-80890

BOLT

24

01010-81030

BOLT

25

01643-30823

WASHER

25

01643-31032

WASHER

26

201-979-7771

COVER

27

01010-81030

BOLT

27

01010-81020

BOLT

28

01643-31032

WASHER

29

201-979-7831

BRACKET

30

04120-21744

V-BELT

30

04120-21745

V-BELT

30

04120-21742

V-BELT,(EXCEPT JAPAN)

31

201-979-7440

CONDENSER UNIT

32

201-979-8151

BRACKET

32

201-979-8150

BRACKET

33

201-979-8161

BRACKET

33

201-979-8160

BRACKET

34

01010-80820

BOLT

35

01643-30823

WASHER

36

01010-80850

BOLT

37

01643-30823

WASHER
