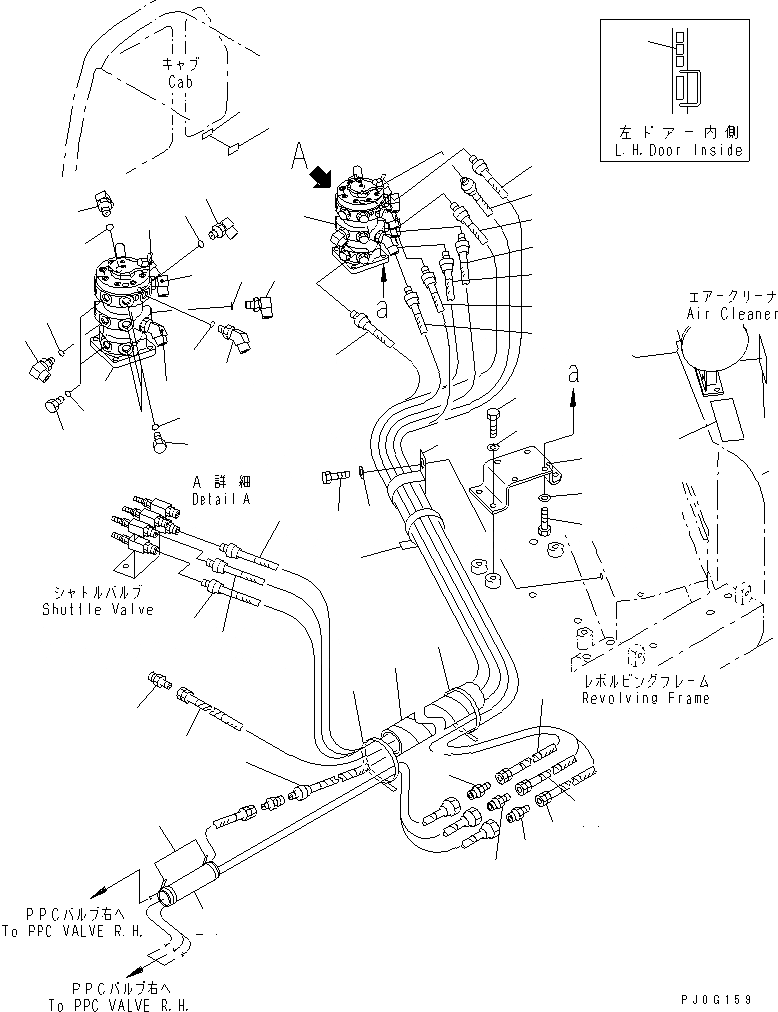

Запчасти Komatsu PC60-7 MULTIPLE PATTERN WAY (ДЛЯ I.S.O.¤ ЭКСКАВАТ. PATTERN CHANGE КЛАПАН)(№8-) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
201-62-76100
VALVE ASS'Y
2
201-62-75420
ELBOW
3
07002-11423
O-RING
4
20X-62-47450
ELBOW
5
07002-11423
O-RING
5A
07040-11409
PLUG
5B
07002-11423
O-RING
|$11
201-62-75910
HOSE ASS'Y
6
201-62-73840
HOSE, 535MM
6
20U-62-22190
O-RING
6
21U-62-34720
BAND, BLACK
6
21U-62-34710
BAND, YELLOW
7
201-62-73880
HOSE, 665MM
7
20U-62-22190
O-RING
7
21U-62-34710
BAND, YELLOW
8
201-62-73890
HOSE, 435MM
8
20U-62-22190
O-RING
8
21U-62-34740
BAND, ORANGE
|$22
201-62-75940
HOSE ASS'Y
9
201-62-73820
HOSE, 580MM
9
20U-62-22190
O-RING
9
21U-62-34710
BAND, YELLOW
|$26
201-62-75950
HOSE ASS'Y
10
201-62-73780
HOSE, 725MM
10
20U-62-22190
O-RING
10
21U-62-34720
BAND, BLACK
|$30
201-62-75980
HOSE ASS'Y
11
201-62-73810
HOSE, 445MM
11
20U-62-22190
O-RING
11
21U-62-34740
BAND, ORANGE
11
21U-62-34710
BAND, YELLOW
|$35
201-62-75990
HOSE ASS'Y
12
20T-62-84280
HOSE, 500MM
12
20U-62-22190
O-RING
12
21U-62-34710
BAND, YELLOW
12
21U-62-34730
BAND, GREEN
13
201-62-73860
HOSE, 615MM
13
20U-62-22190
O-RING
13
21U-62-34730
BAND, GREEN
14
08034-00536
BAND
15
201-62-73470
BRACKET
16
01010-81025
BOLT
17
01643-31032
WASHER
18
04434-53412
CLIP
19
01010-81025
BOLT
20
01643-31032
WASHER
21
21Y-62-13340
JOINT
22
08210-02903
SPIRAL TUBE
23
08034-00834
BAND
24
20U-62-26170
SEAT
25
08034-00823
BAND
26
01010-81025
BOLT
27
01643-31032
WASHER
28
09822-03010
PLATE
29
22M-98-11171
PLATE
29
22M-98-11170
PLATE
30
09822-00020
PLATE, CASE
31
22M-98-11180
PLATE
32
22M-98-11191
PLATE
32
22M-98-11190
PLATE
Выбрано товаров: 60
