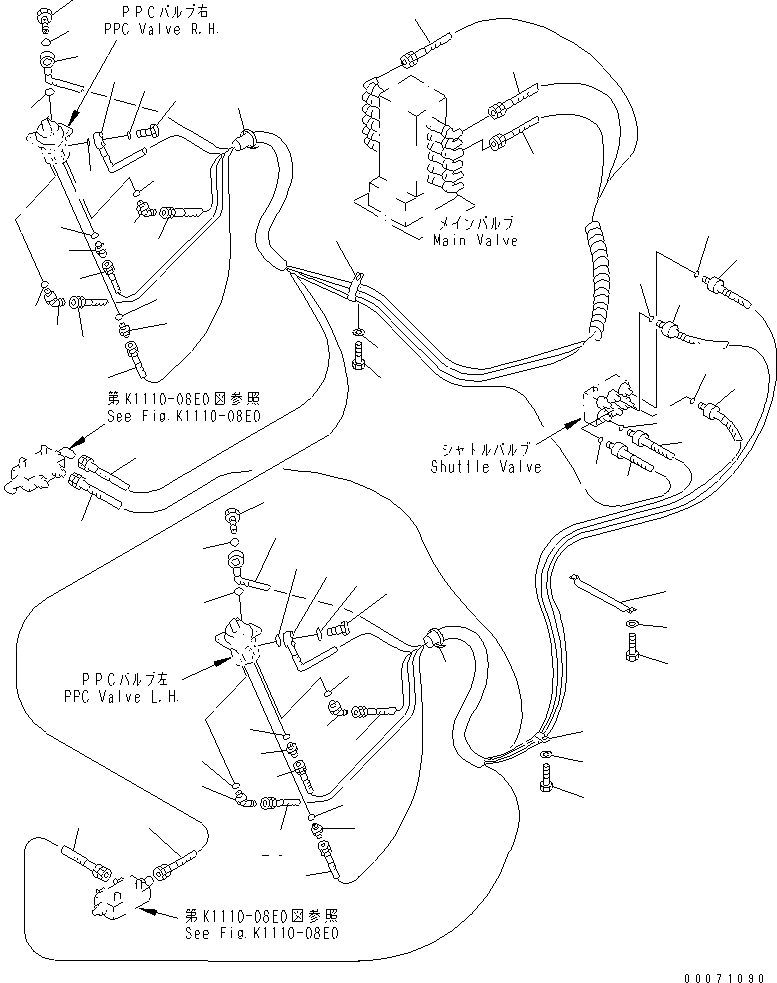

Запчасти Komatsu PC60-7 ОСНОВН. КОНСТРУКЦИЯ (P.P.C. РАБОЧАЯ ЛИНИЯ) (ДЛЯ CHINA)(№99-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$26

201-62-73600

HOSE ASS'Y

1

21W-62-31450

HOSE, 1600MM

1

21U-62-34760

BAND, RED

2

21W-62-31450

HOSE, 1600MM

2

21U-62-34750

BAND, BLUE

3

21W-62-31450

HOSE, 1600MM

3

21U-62-34720

BAND, BLACK

4

201-62-73661

HOSE, 1655MM

5

20U-62-22190

O-RING

5

21U-62-34710

BAND, YELLOW

6

201-62-72560

HOSE, 1700MM

6

21U-62-34750

BAND, BLUE

6

21U-62-34770

BAND, WHITE

7

201-62-78330

HOSE, 1400MM

7

21U-62-34760

BAND, RED

7

21U-62-34730

BAND, GREEN

8

08034-00828

BAND

9

20Y-62-16170

BOLT

10

07000-12015

O-RING

10

07001-02015

RING,(FOR 1 ACTUATER ATT.)

11

702-16-53240

PLUG

12

07000-12018

O-RING

13

07230-20210

UNION

14

07002-11423

O-RING

15

21U-62-24160

ELBOW

15

07236-10210

ELBOW

16

07002-11423

O-RING

|$54

201-62-73500

HOSE ASS'Y

17

201-62-73640

HOSE, 1405MM

18

20U-62-22190

O-RING

18

21U-62-34730

BAND, GREEN

19

201-62-78350

HOSE, 1400MM

19

21U-62-34750

BAND, BLUE

19

21U-62-34770

BAND, WHITE

20

201-62-78360

HOSE, 1600MM

20

21U-62-34760

BAND, RED

20

21U-62-34730

BAND, GREEN

21

201-62-73650

HOSE, 1505MM

22

20U-62-22190

O-RING

22

21U-62-34780

BAND, BROWN

23

201-62-73650

HOSE, 1505MM

24

20U-62-22190

O-RING

24

21U-62-34740

BAND, ORANGE

25

201-62-73950

HOSE, 1555MM

26

20U-62-22190

O-RING

26

21U-62-34770

BAND, WHITE

27

20Y-62-16170

BOLT

28

07000-12015

O-RING

29

702-16-53240

PLUG

30

07000-12018

O-RING

31

07230-20210

UNION

32

07002-11423

O-RING

33

07236-10210

ELBOW

34

07002-11423

O-RING

35

201-62-72570

CLAMP

36

01010-81016

BOLT

37

01643-31032

WASHER

38

04434-53211

CLIP

39

01010-81016

BOLT

40

01643-31032

WASHER
