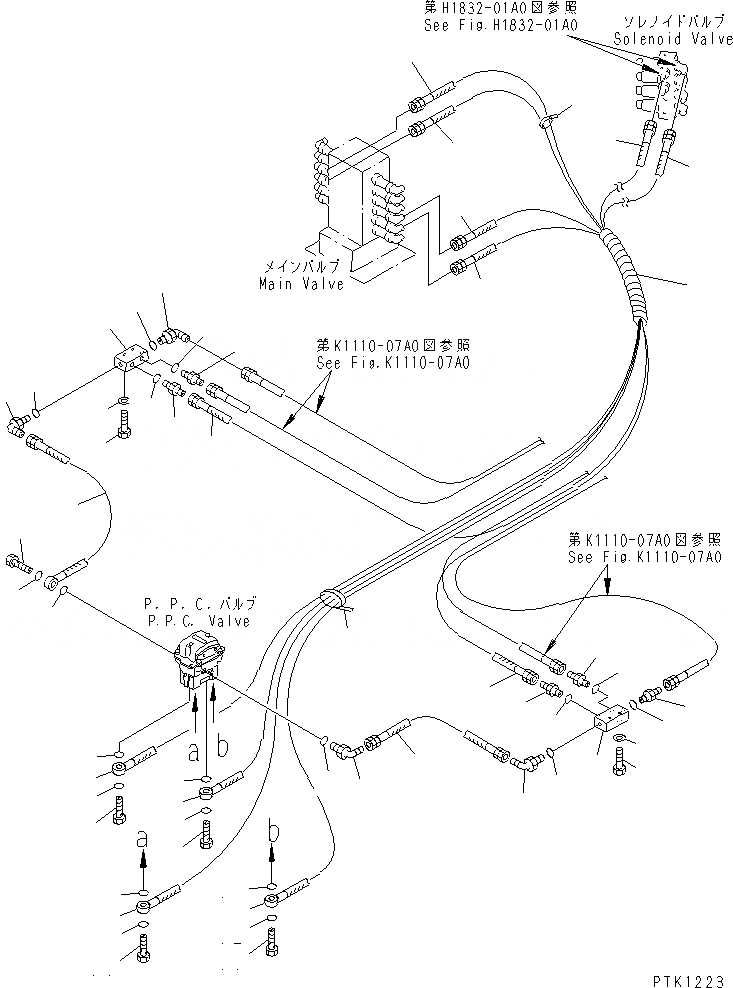

Запчасти Komatsu PC60-7-B ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ЛИНИЯ ХОДА)(№7-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

22U-62-13490

HOSE¤ 340MM,RED-GREEN

|1

201-62-78150

HOSE¤ 350MM,RED-GREEN

|1

201-62-74460

HOSE¤ 350MM,RED-GREEN

2

21W-62-32380

HOSE¤ 350MM,BLUE-WHITE

|2

201-62-74930

HOSE¤ 350MM,BLUE-WHITE

3

201-62-78320

HOSE¤ 2600MM,ORANGE-YELLOW

|3

201-62-74470

HOSE¤ 2600MM,ORANGE-YELLOW

4

201-62-78320

HOSE¤ 2600MM,GREEN-YELLOW

|4

201-62-74470

HOSE¤ 2600MM,GREEN-YELLOW

5

201-62-78370

HOSE¤ 3100MM,BLACK-YELLOW

|5

201-62-74480

HOSE¤ 3100MM,BLACK-YELLOW

6

201-62-78370

HOSE¤ 3100MM,BROWN-YELLOW

|6

201-62-74480

HOSE¤ 3100MM,BROWN-YELLOW

6A

08034-00536

BAND

7

201-62-72230

HOSE¤ 3290MM,BLUE-WHITE

8

201-62-72240

HOSE¤ 3370MM,RED-GREEN

9

08210-01806

SPIRAL TUBE,TUBE

10

08034-00834

BAND

11

20Y-62-16170

BOLT

12

07000-12015

O-RING

13

702-16-53240

PLUG

14

07000-12018

O-RING

15

07235-10210

ELBOW

|15

21U-62-24110

ELBOW

16

07002-11423

O-RING

17

07230-20210

UNION

|17

21A-62-12360

NIPPLE

18

07000-11423

O-RING

19

20Y-62-15831

BLOCK

20

01010-81045

BOLT

21

01643-31032

WASHER

22

07230-20210

UNION

23

07002-11423

O-RING
