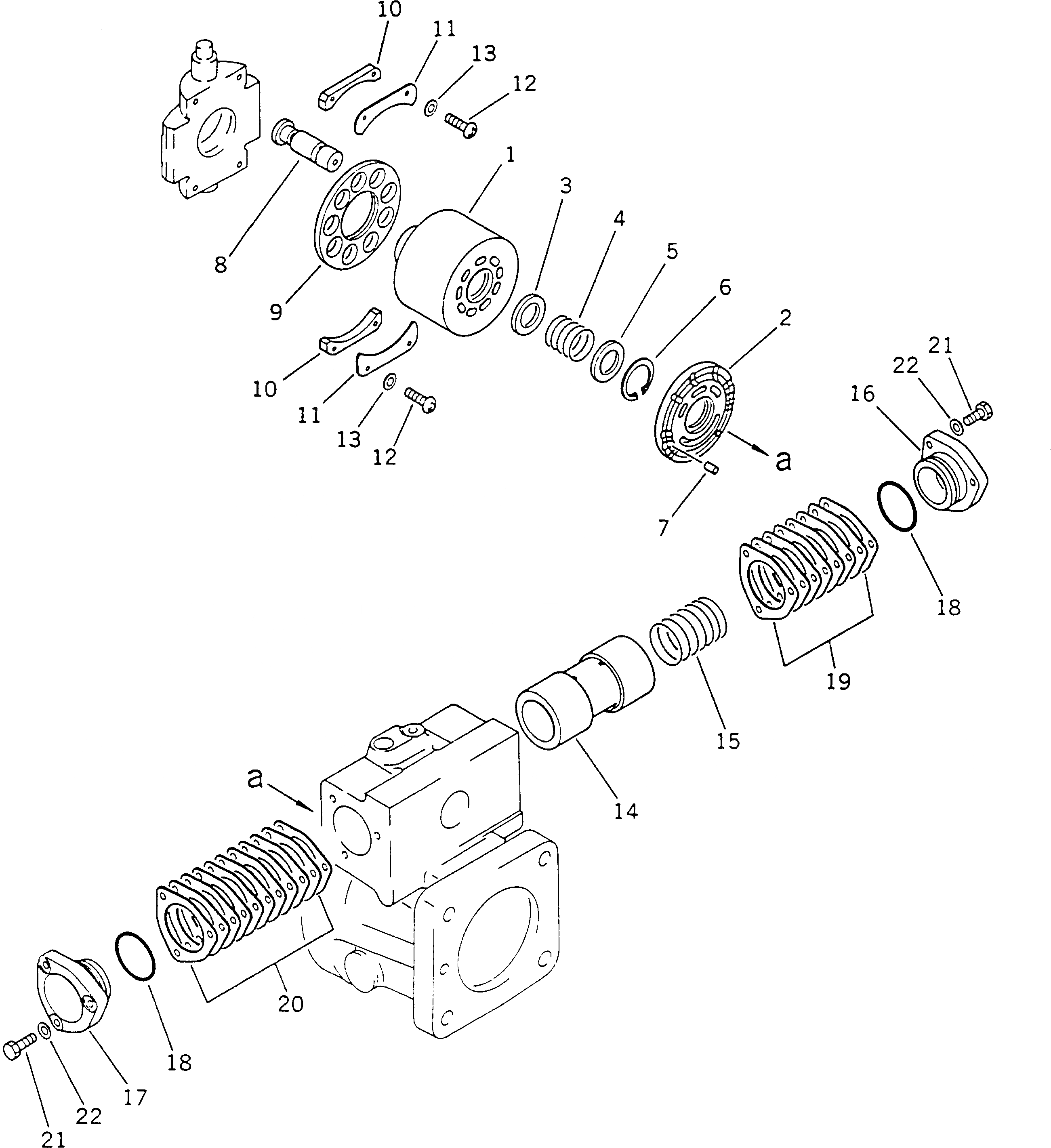

Запчасти Komatsu PC60-6S ГИДР. НАСОС. (ЗАДН. /) (С ОТВАЛ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-21-04013

PUMP ASS'Y,(HPV35+35)

|1

708-21-04012

PUMP ASS'Y,(HPV35+35)

|1

708-21-04011

PUMP ASS'Y,(HPV35+35)

|1

708-21-04113

PUMP SUB ASS'Y

|1

708-21-04112

PUMP SUB ASS'Y

|1

708-21-04111

PUMP SUB ASS'Y

|1

708-21-00091

BLOCK ASS'Y,REAR

|1

708-21-00090

BLOCK ASS'Y,REAR

1

708-21-13160

BLOCK,CYLINDER

2

708-21-13621

PLATE,REAR

|2

708-21-13620

PLATE,REAR

3

708-21-13130

WASHER

4

708-21-13140

SPRING

5

708-21-13120

WASHER

6

708-21-13150

RING,SNAP

7

720-68-19610

PIN

8

708-21-13352

PISTON SUB ASS'Y

9

708-21-13340

RETAINER,SHOE

10

708-21-05021

SPACER KIT

|10

SPACER

|10

SPACER

|10

SPACER

11

708-21-13450

RETAINER,BEARING

12

708-23-13460

SCREW

13

01643-30623

WASHER

14

708-21-14111

PISTON

15

708-21-14130

SPRING

16

708-21-14230

CAP

17

708-21-14150

CAP

18

07000-03045

O-RING

19

708-21-05040

SHIM KIT

|19

SHIM

|19

SHIM

|19

SHIM

|19

SHIM

20

708-21-05030

SHIM KIT

|20

SHIM

|20

SHIM

|20

SHIM

|20

SHIM

21

01010-30835

BOLT

22

01643-30823

WASHER
