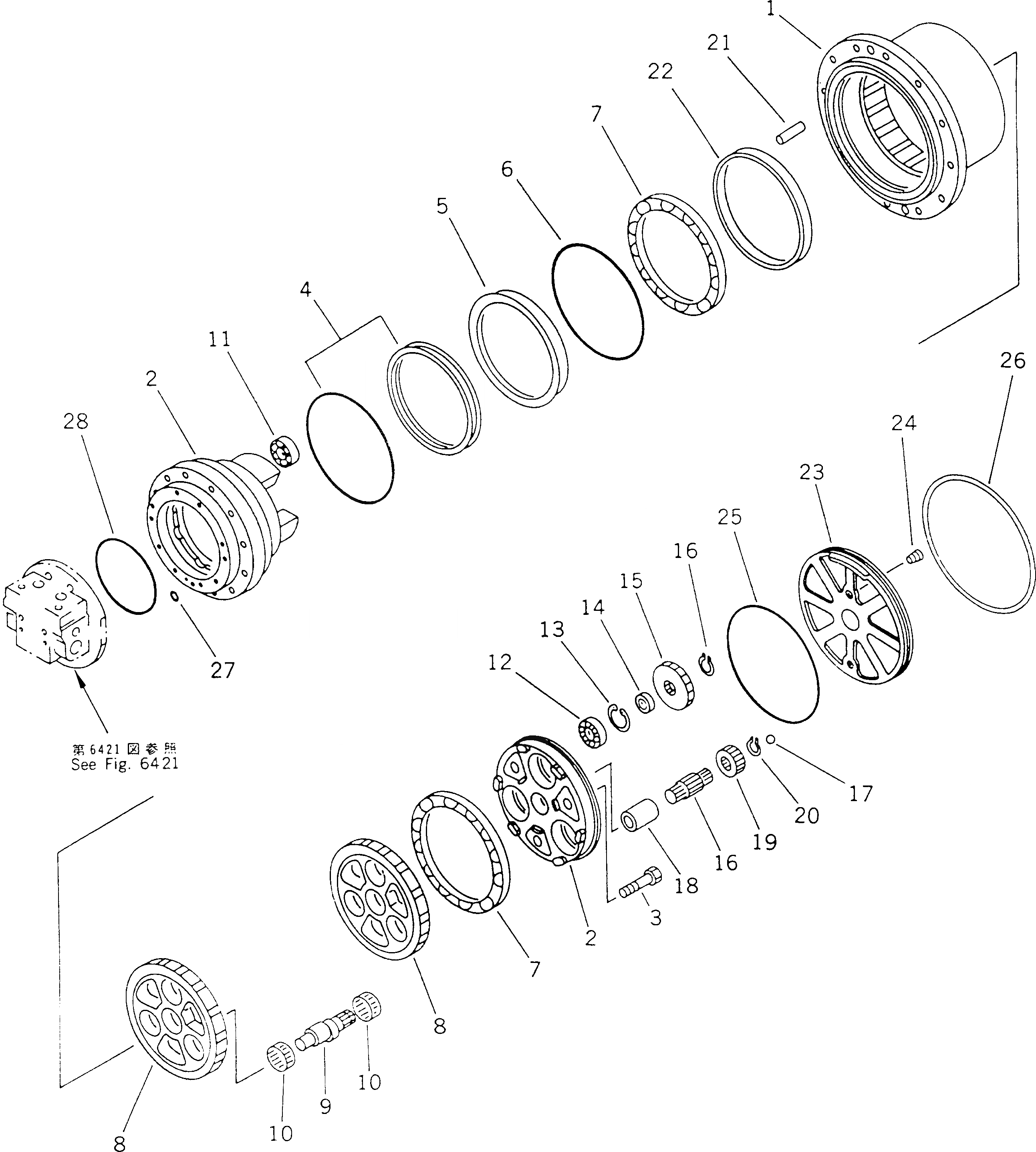

Запчасти Komatsu PC60-6C МОТОР ХОДА (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

201-60-65100

TRAVEL MOTOR ASS'Y

|$2

TZ920A1000-00

FINAL DRIVE ASS'Y

1

TZ810B1001-00

HUB

|$4

TZ920A1102-00

SPINDLE KIT

2

TZ920A1132-00

SPINDLE ASS'Y

3

TZ910B1019-00

BOLT,REAMER

|$7

TZ192-230-30-B

FLOATING SEAL ASS'Y (K1)

4

TZES100-192-B

SEAL,FLOATING

5

TZ860A1010-01

PIECE,DISTANCE

6

07000-15230

O-RING (K1)

7

TZ810B1021-00

BEARING

|$12

TZ910B1104-00

RV GEAR ASS'Y

8

TZ900B1204-00

RV GEAR

9

TZ910B1009-00

SHAFT,CRANK

10

TZ910B1023-00

BEARING

11

TZ860A1022-00

BEARING

12

TZ860A1013-00

SNAP RING SET (12KINDS)

13

TZ900B1107-00

SPUR GEAR KIT (3PIS)

14

TZ800B1014-01

PIECE,DISTANCE

15

04064-02512

RING,SNAP

16

TZ910B1016-00

SHAFT

17

04260-00952

BALL

18

TZ800A1015-00

JOINT

19

TZ900B1006-00

GEAR,INPUT

20

04064-02512

RING,SNAP

21

TZ810B1017-00

PIN

22

TZ810B1020-00

COLLAR

23

TZ810B1008-00

COVER

24

TZGM3-8

PLUG

25

TZJW1516-P74-9

O-RING (K1)

26

TZ810B1018-00

RING

27

07000-11007

O-RING (K1)

28

TZJW1516-G35-9

O-RING (K1)

K1

TZ920B9000-00

SERVICE KIT

|$36

TZSUN-2BG140

RING,BACK-UP

|$37

07000-12140

O-RING

|$38

TZJW1516-G28-9

O-RING

|$40

TZSUN-2WG28

RING,BACK-UP

|$41

TZ15Z-22-42-10

SEAL

|$42

07000-11009

O-RING

|$43

TZJB2401-P26-9

O-RING

|$44

07000-12016

O-RING

|$45

07000-12014

O-RING

|$46

TZ192-230-30-B

FLOATING SEAL ASS'Y

|$47

07000-15230

O-RING

|$48

TZJW1516-P74-9

O-RING

|$49

07000-11007

O-RING

|$50

TZJW1516-G35-9

O-RING
