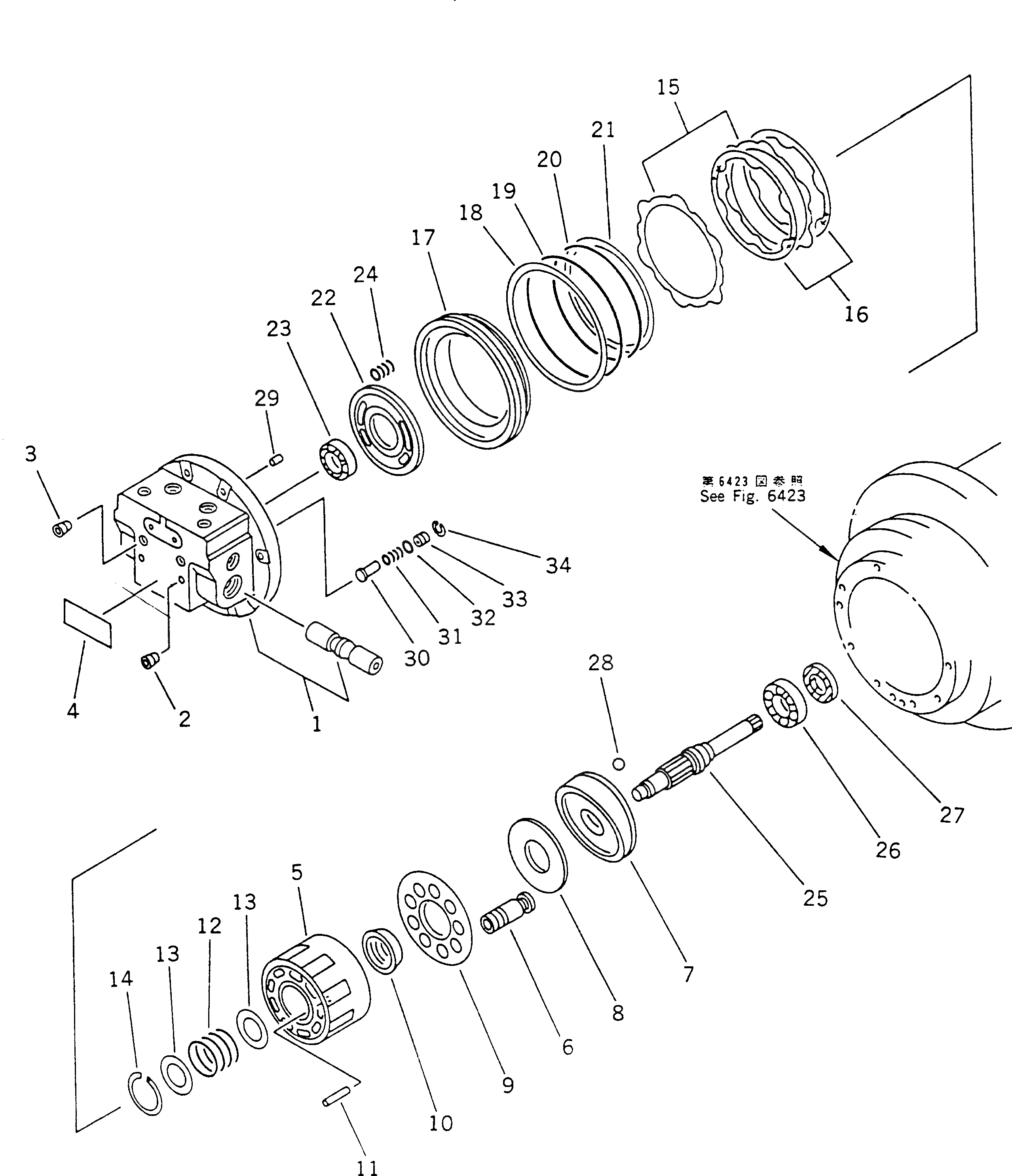

Запчасти Komatsu PC60-6C МОТОР ХОДА (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

201-60-65100

TRAVEL MOTOR ASS'Y

|$2

TZ920A200000ZA

MOTOR ASS'Y,HYDRAULIC

1

TZ880A211100-A

FLANGE KIT,REAR

2

TZGM1-8

PLUG

3

TZMB700-050

PLUG

4

TZ850A0006-00

PLATE, NAME

5

TZ810B2004-00

BLOCK,CYLINDER

6

TZ810B2105-00

PISTON KIT (9PIS)

7

TZ910B200300-Z

PLATE,SWASH

8

TZ800B2032-00

PLATE,THRUST

9

TZ810B2007-00

PLATE,RETAINER

10

TZ810B2008-00

BOWL,THRUST

11

TZJB150625-238

PIN

12

TZ810B2014-00

SPRING

13

TZ880A2010-00

WASHER

14

TZ1RTW-42

RING

15

TZ800B2016-01

PLATE

16

TZ800A2015-00

PLATE

17

TZ880A2012-00

PISTON

18

TZSUN-2BG140

RING (K1)

19

07000-12140

O-RING (K1)

20

TZJW1516-G28-9

O-RING (K1)

21

TZSUN-2WG28

RING,BACK-UP (K1)

22

TZ860A2009-01

PLATE,TIMING

23

06000-06203

BEARING

24

TZ880A2013

SPRING

25

TZ910B2002-00

SHAFT

26

TZ880A2029-00

BEARING

27

TZ15Z-22-42-10

SEAL,OIL (K1)

28

TZJB1501-22

BALL

29

TZJB1354-4-10

PIN

30

TZ860A2019-00

VALVE

31

TZ860A2020-01

SPRING

32

07000-11009

O-RING (KIT)

33

TZ860A2018-00

SEAT

34

TZ100A2022-00

RING
